Odometer Trip/Reset Switch Inoperative

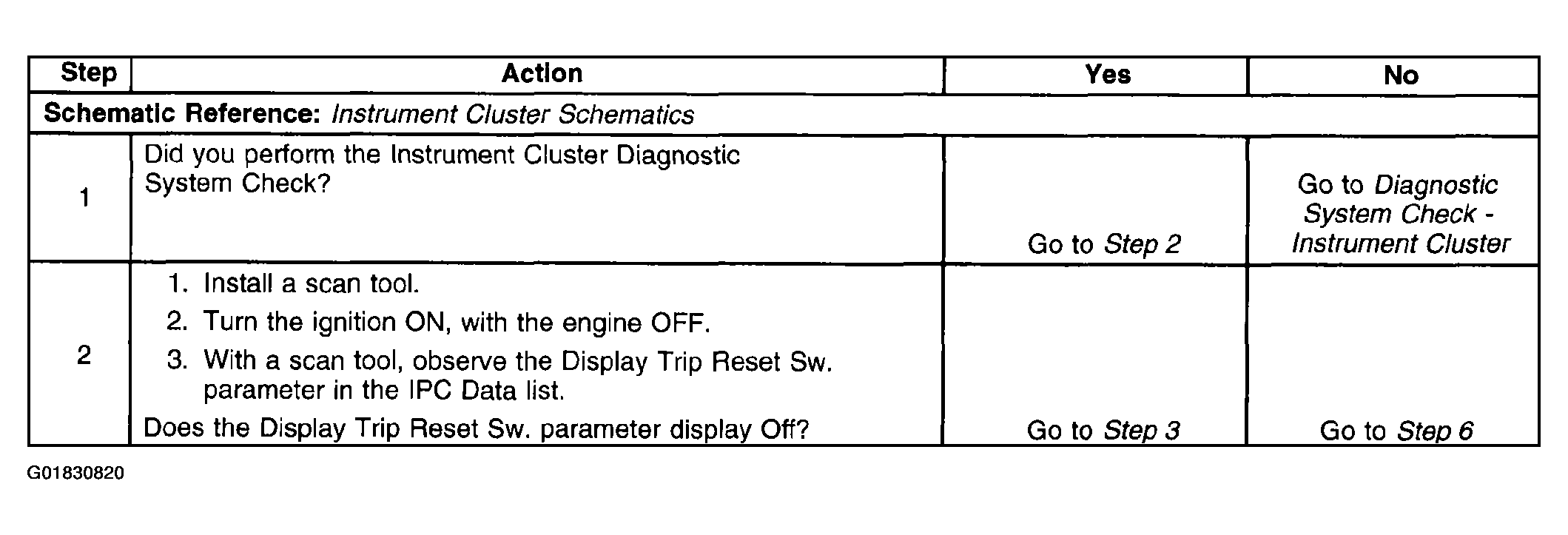

Fig 1: Odometer Trip/Reset Switch Inoperative (1 Of 3)
G01830820Courtesy of GENERAL MOTORS CORP.

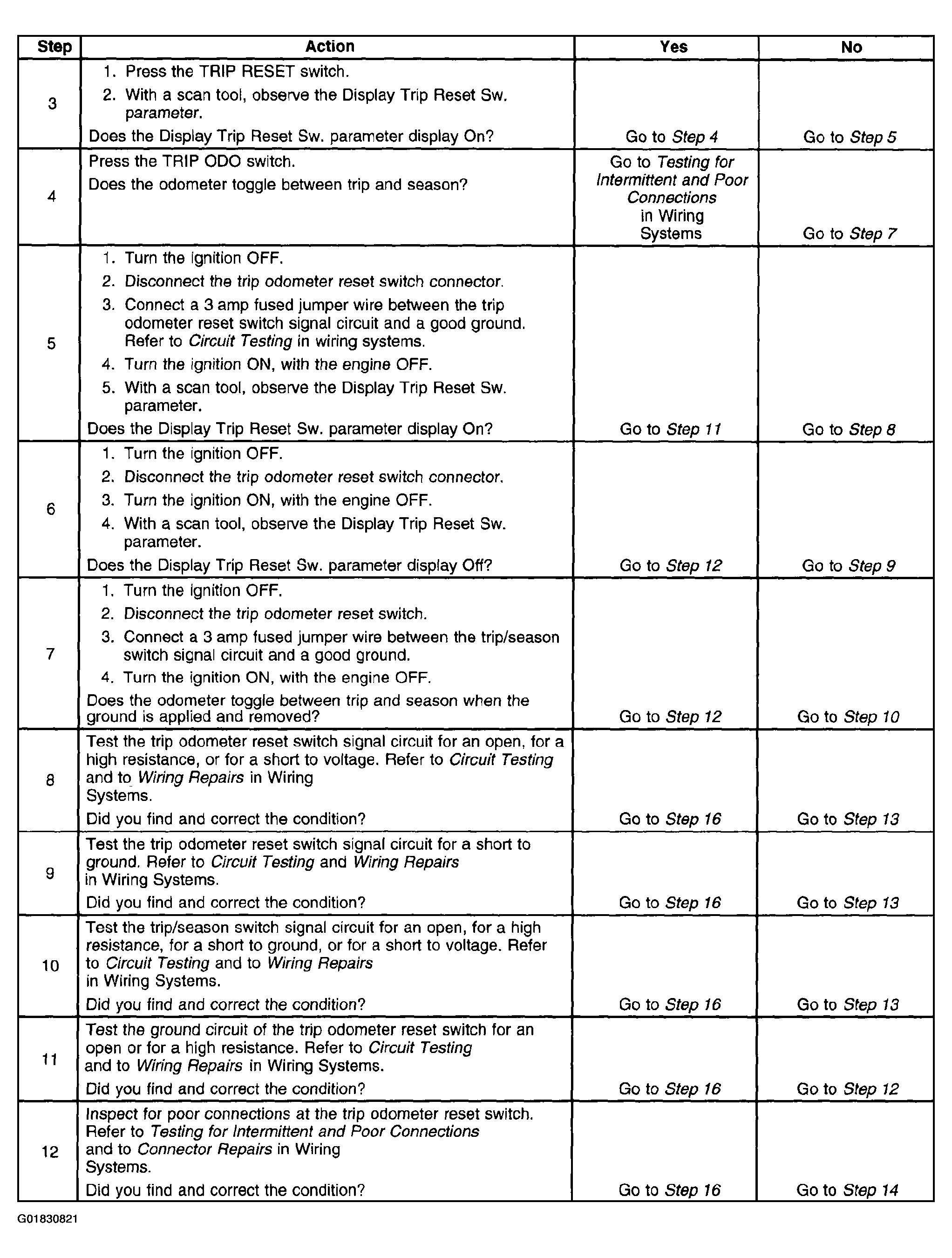

Fig 2: Odometer Trip/Reset Switch Inoperative (2 Of 3)
G01830821Courtesy of GENERAL MOTORS CORP.

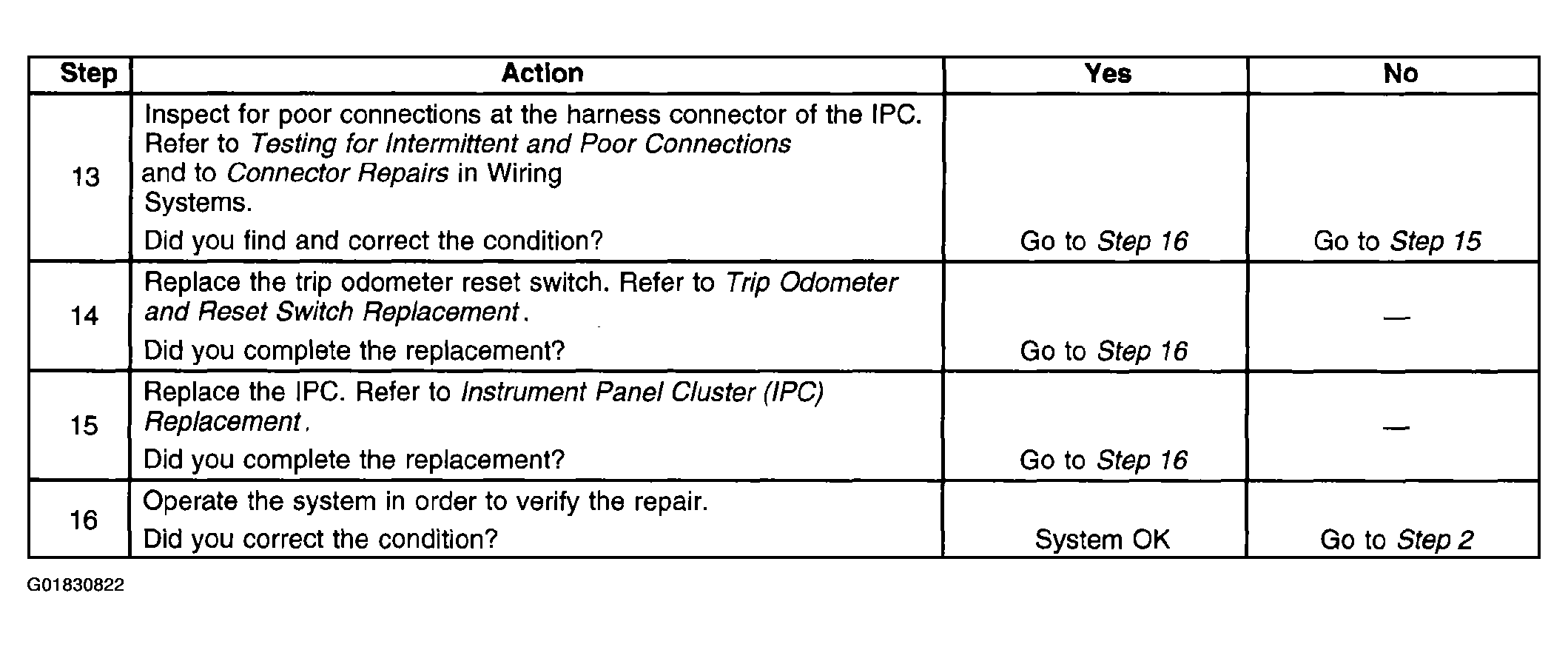

Fig 3: Odometer Trip/Reset Switch Inoperative (3 Of 3)
G01830822Courtesy of GENERAL MOTORS CORP.
