Test Description

The number below refer to the step number on the diagnostic table.

  1. 3. Tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.

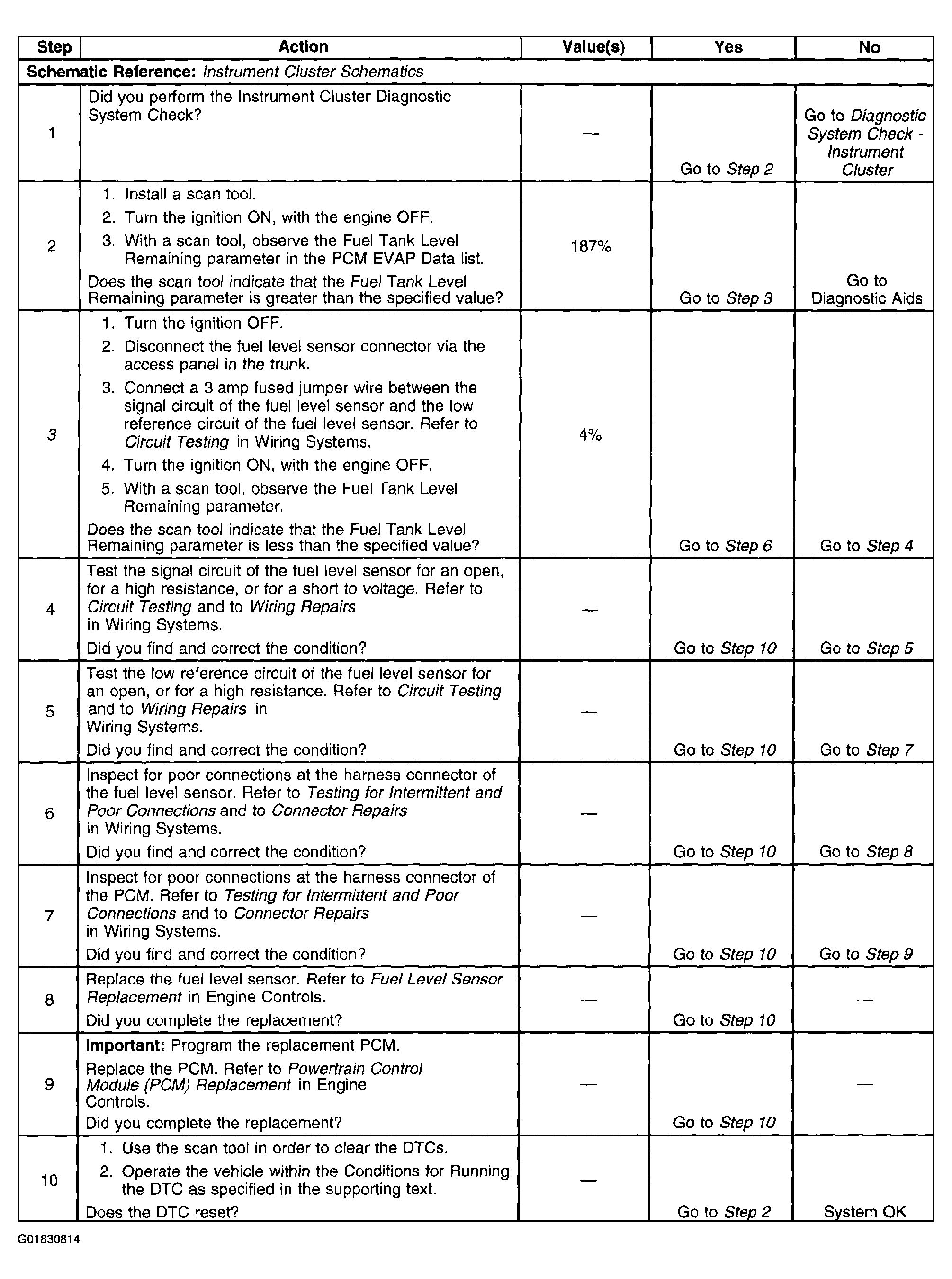

    Fig 1: DTC P0463 Diagnostic Table
    G01830814Courtesy of GENERAL MOTORS CORP.
