Instrument Panel, Gages, and Console Connector End Views

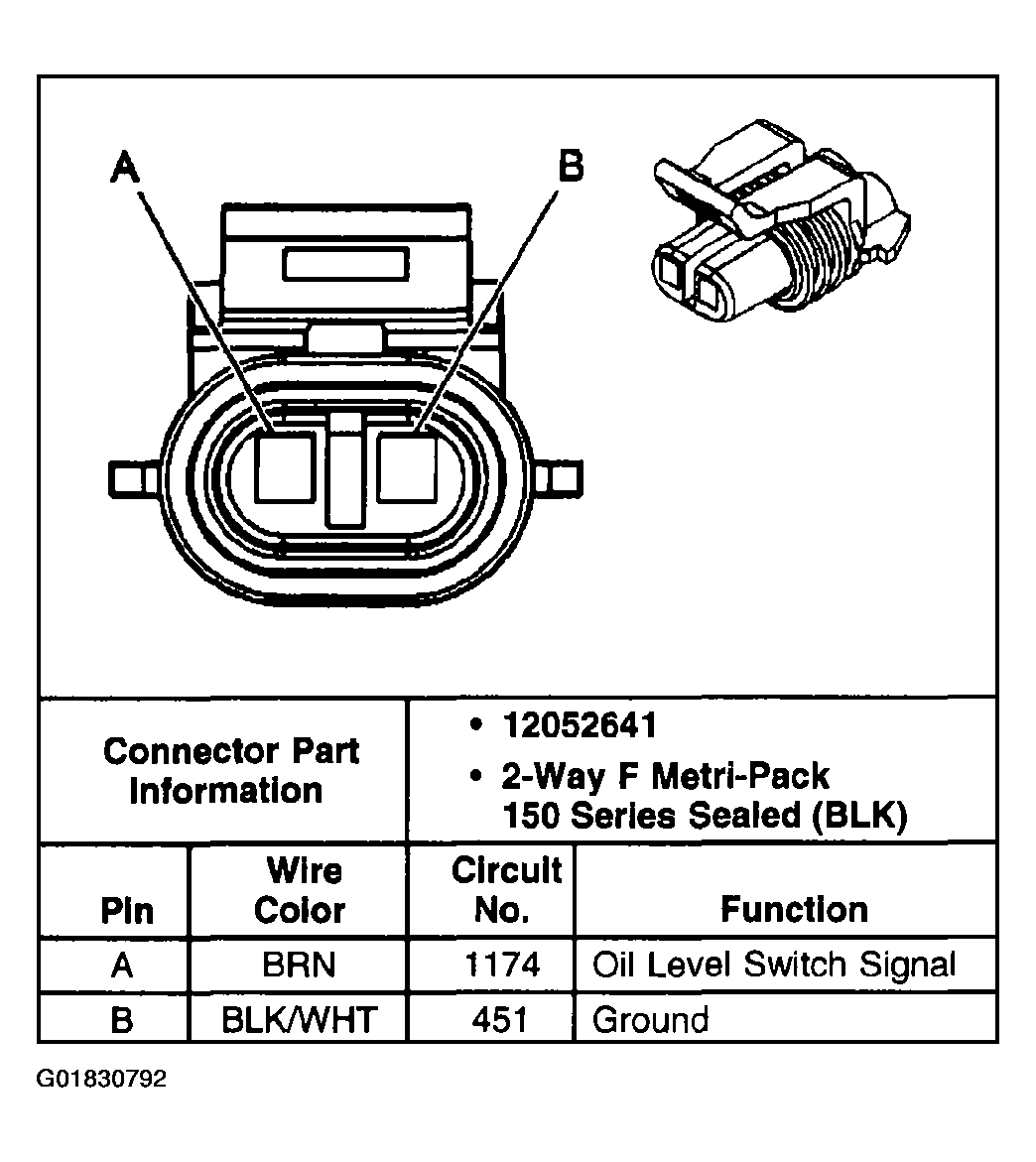

Fig 1: Engine Oil Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

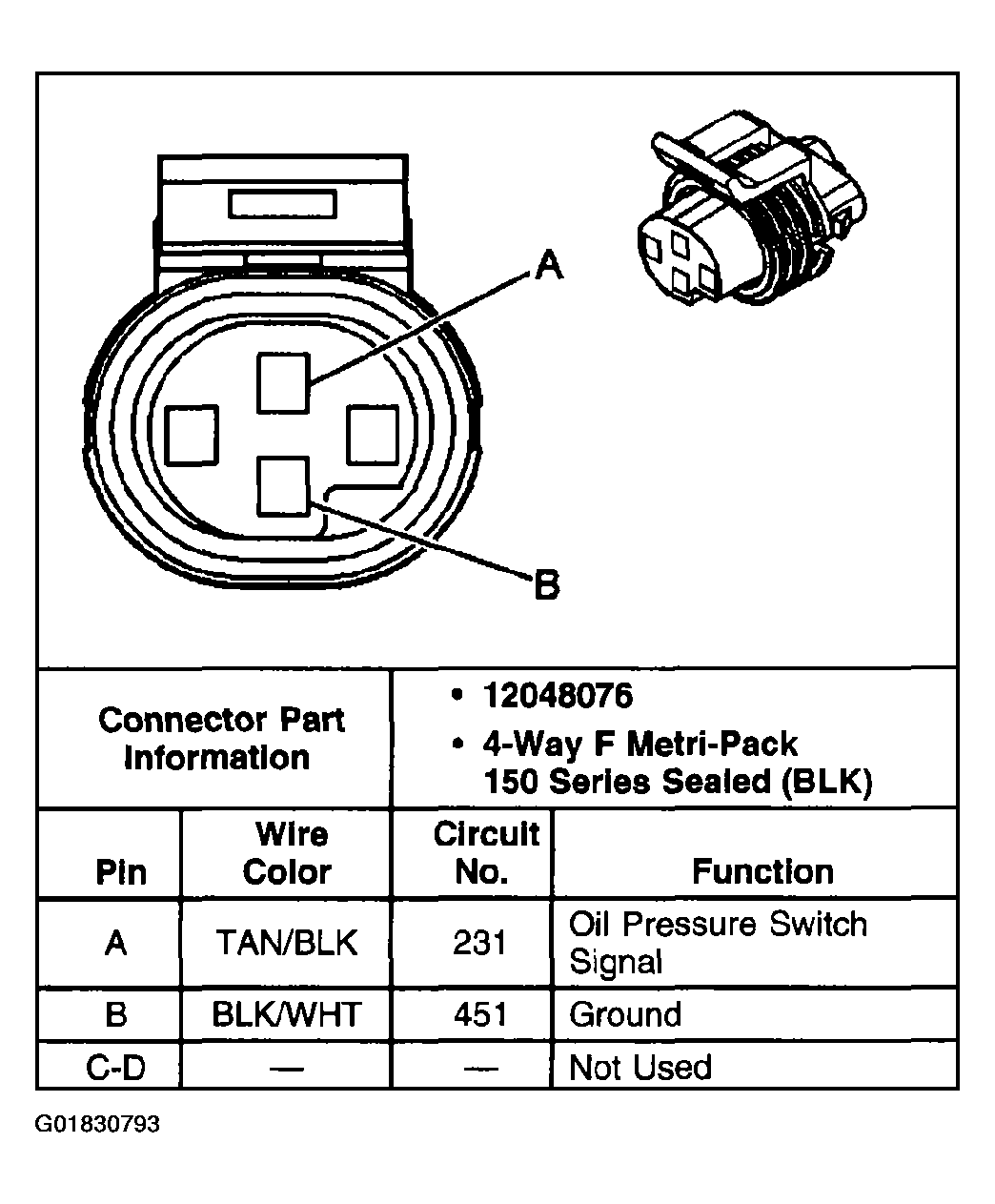

Fig 2: Engine Oil Pressure Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

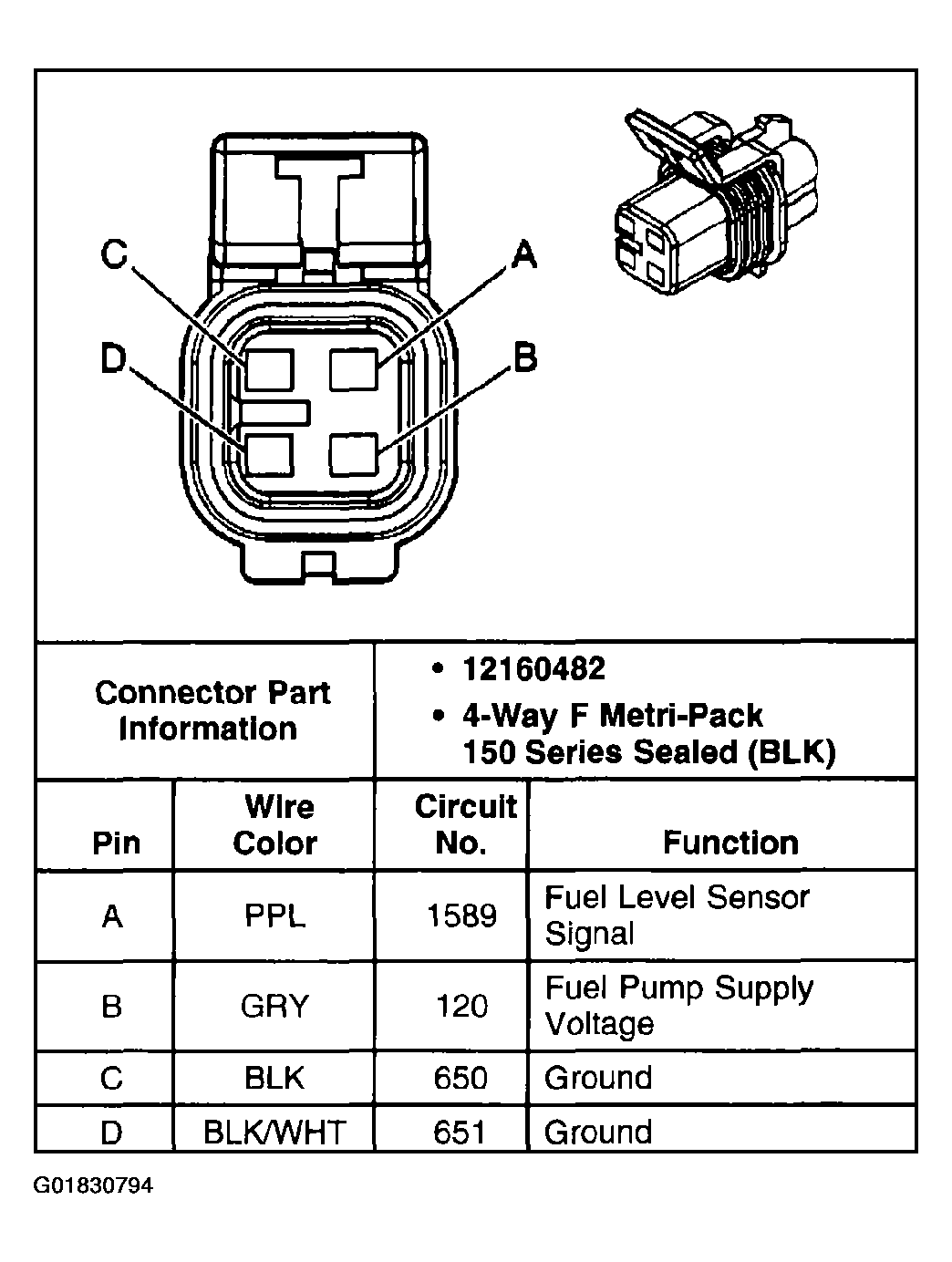

Fig 3: Fuel Pump And Sender Assembly Connector End View

Courtesy of GENERAL MOTORS CORP.

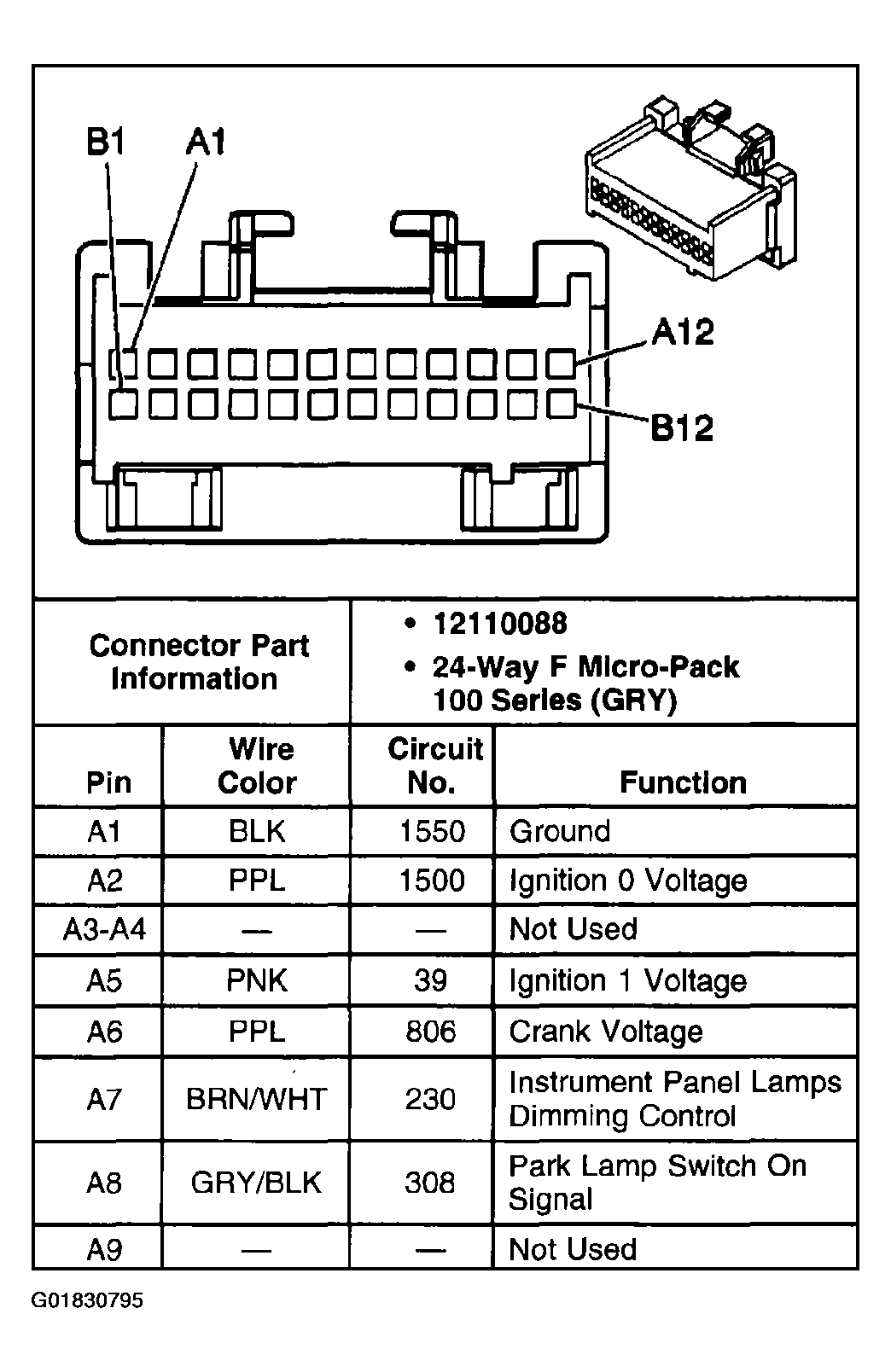

Fig 4: Instrument Panel Cluster (IPC) Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

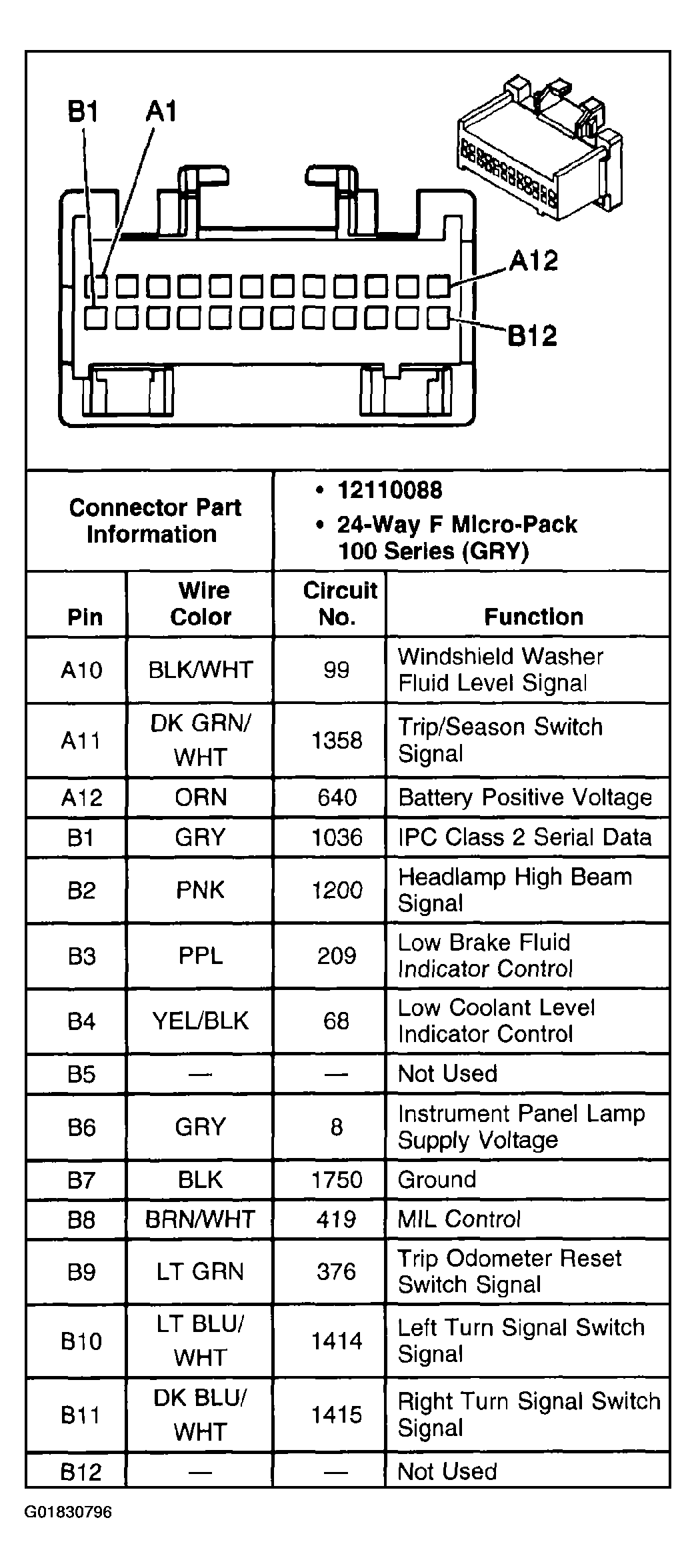

Fig 5: Instrument Panel Cluster (IPC) Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

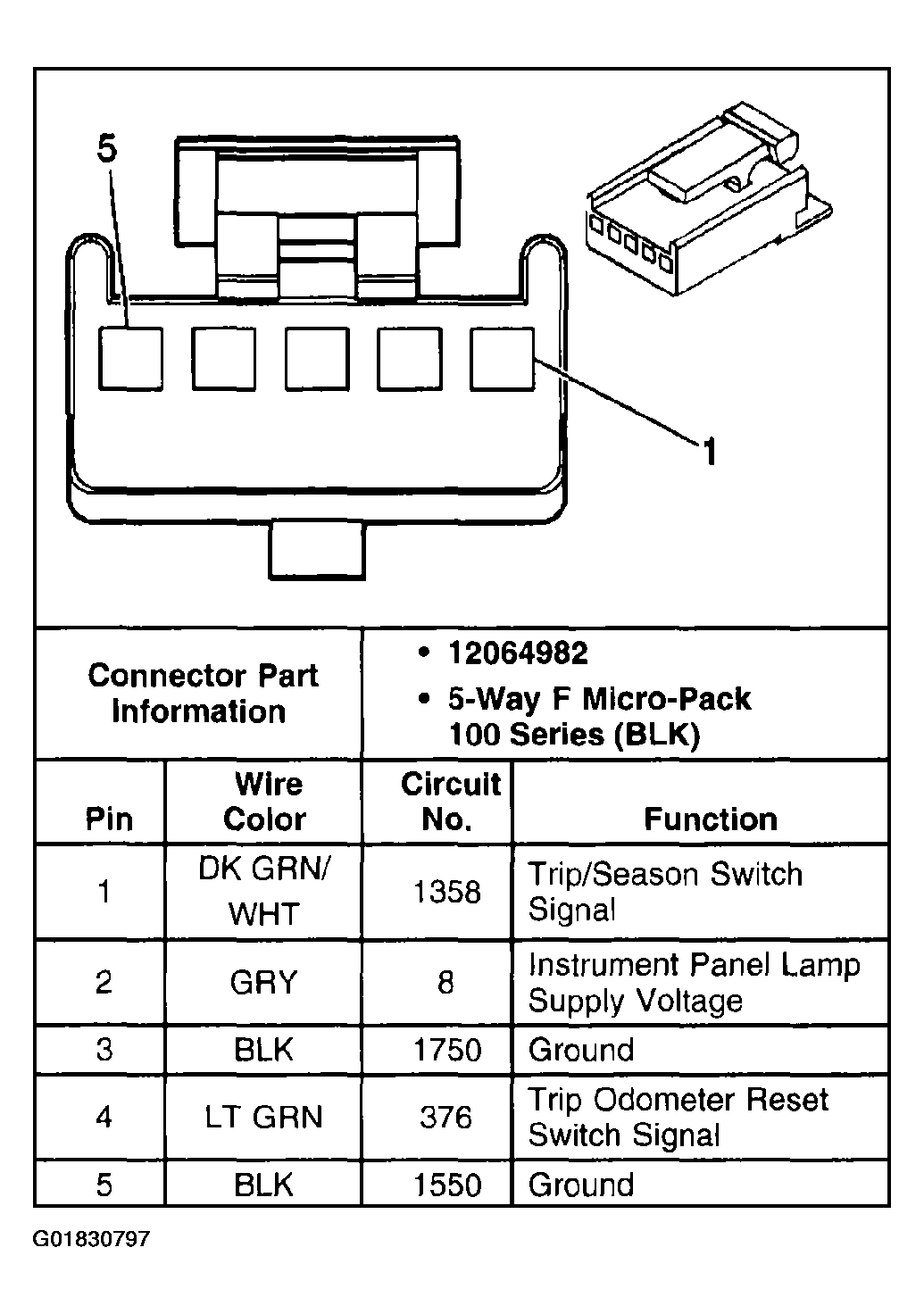

Fig 6: Trip Odometer Reset Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
