Rear Disc Parking Brake Shoes: Installation

To install, reverse removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS . Adjust parking brake. See PARKING BRAKE (DISC)  under ADJUSTMENTS.

Fig 1: Exploded View Of Rear Brake Caliper
G99B04602Courtesy of GENERAL MOTORS CORP.

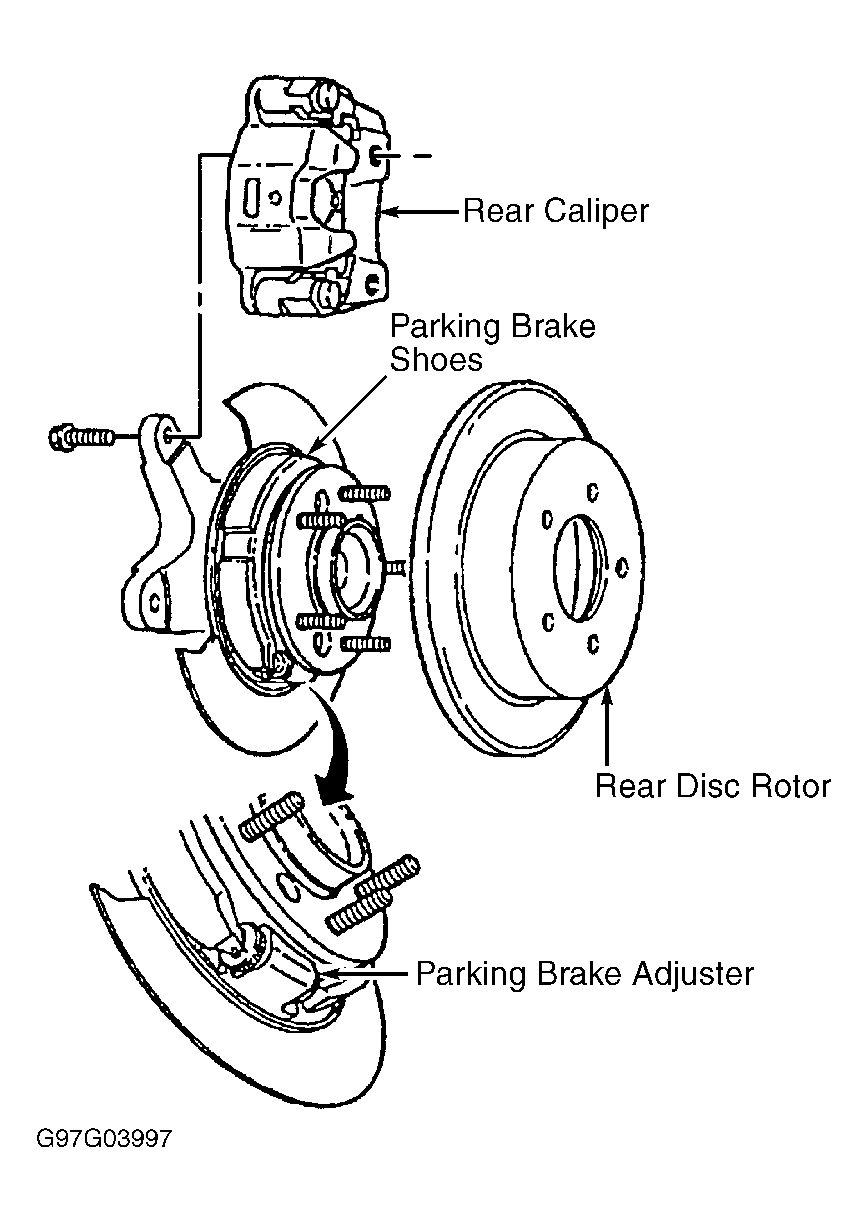

Fig 2: Identifying Parking Brake Shoes Of Rear Disc Brakes
G97G03997Courtesy of GENERAL MOTORS CORP.
