Removal & Installation
WARNING: This page is about a different car, the 1999 Pontiac Grand Am and 1999 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Passlock(R) sensor is part of ignition switch assembly.

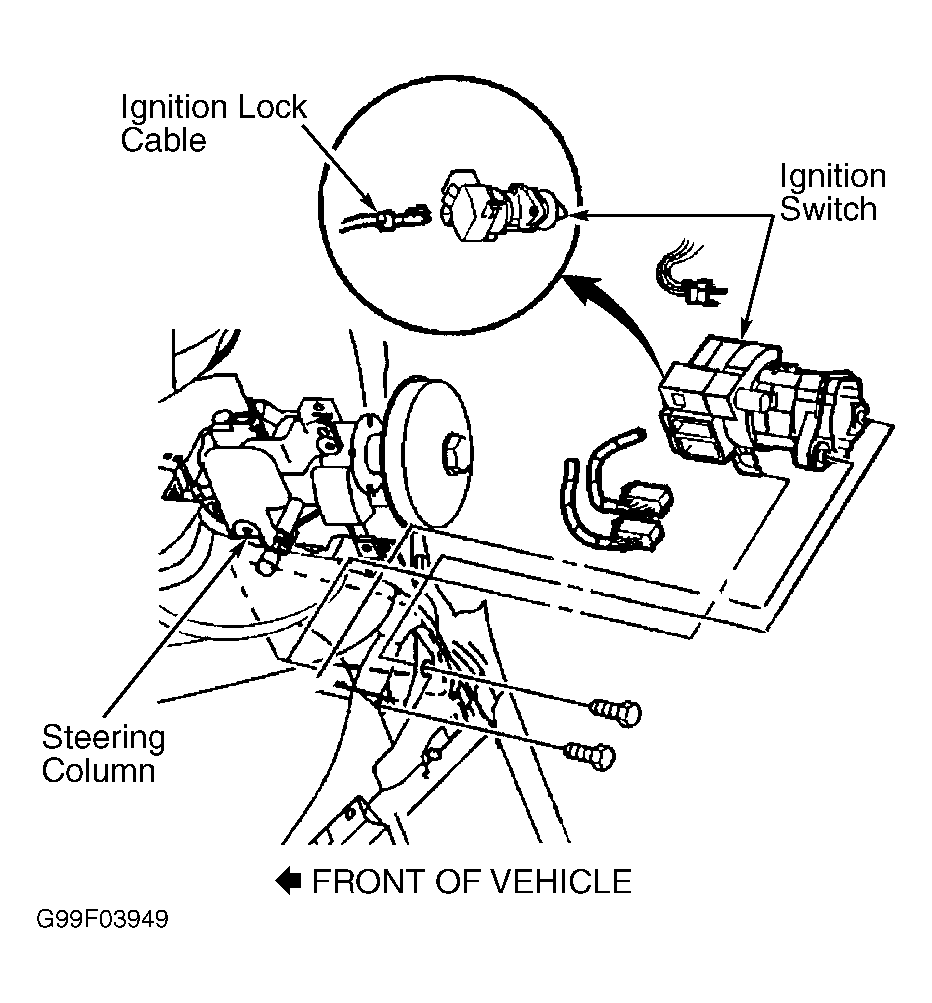

Remove instrument panel sound insulator panels located in driver and passenger footwell. Remove instrument cluster. See ANALOG INSTRUMENT PANELS - ALERO & GRAND AM article. Pry ignition switch bezel off. Remove steering column upper cover. Remove ignition switch bolts and disconnect electrical connector. Disconnect ignition lock cable from ignition switch. See Fig 1 . Remove ignition switch from vehicle. Insert key into ignition switch and rotate key to ON position. Depress cylinder release plunger located at the 4 o'clock position and pull key and lock assembly from ignition housing. To install, reverse removal procedure. Program new Passlock(R) sensor. See PASSLOCK(R) LEARN PROCEDURES under PROGRAMMING.
