Component Locations
WARNING: This page is about a different car, the 1999 Buick Regal and 1999 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
ABS COMPONENT LOCATIONS
| Component | Location | |
|---|---|---|

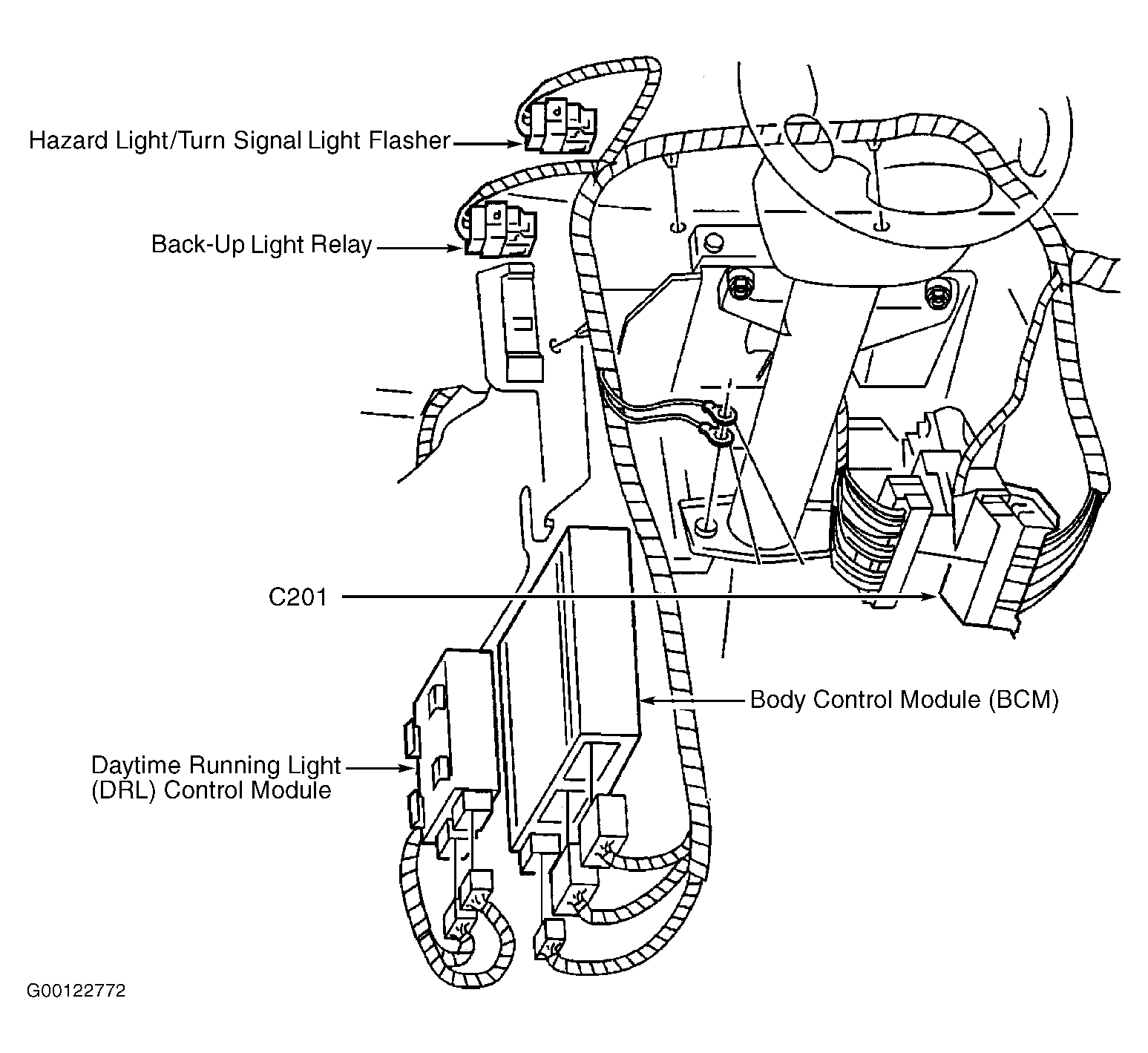

| Body Control Module (BCM) | Below Left Side Of Instrument Panel, Left Of Steering Column. See Fig 1 . | |

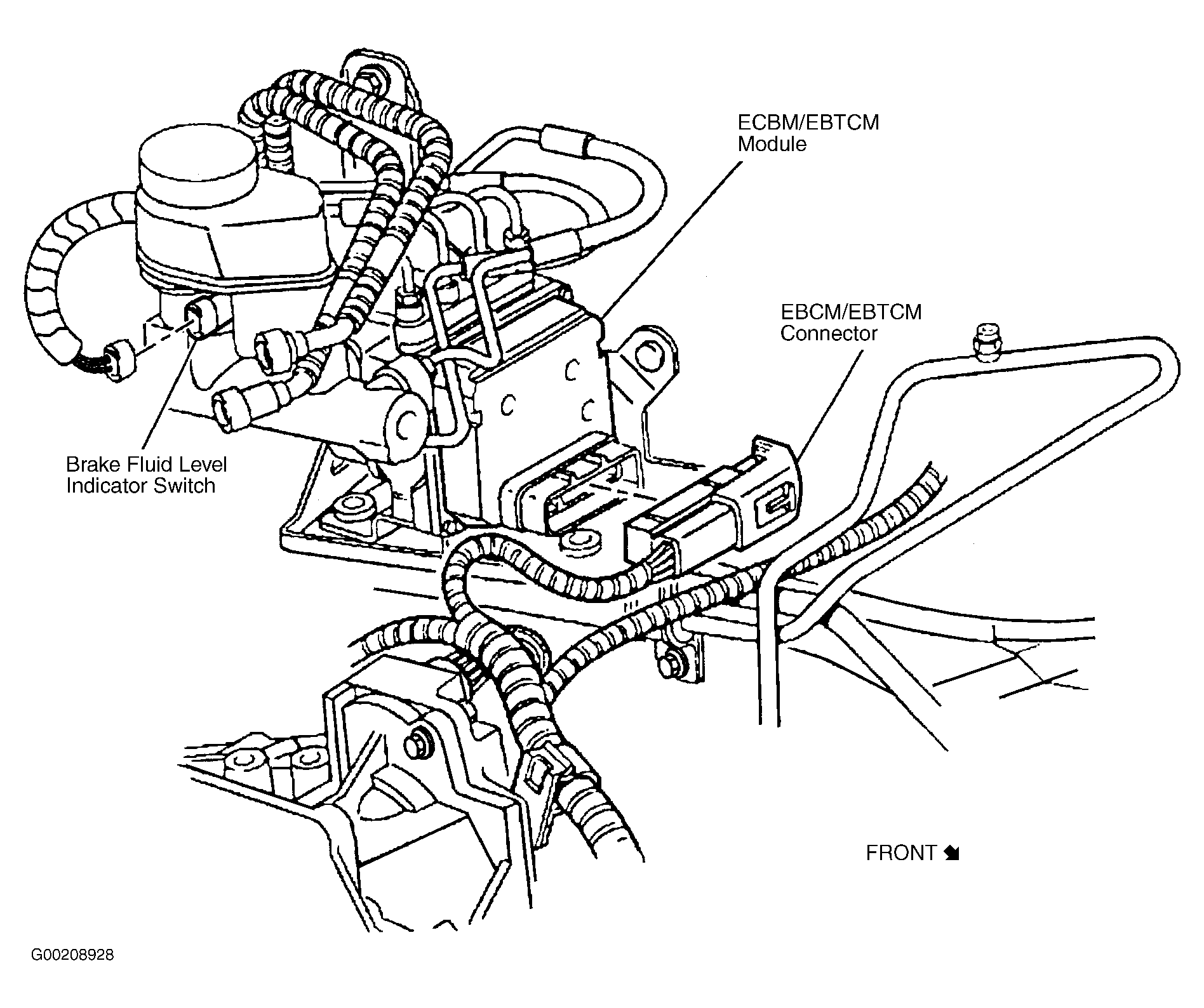

| Brake Fluid Level Indicator Switch | Mounted In Right Side Of Brake Fluid Reservoir. See Fig 2 . | |
| Data Link Connector (DLC) | Below Left Side Of Instrument Panel, Right Of Steering Column | |
| Electronic Brake Control Module/Electronic Traction Control Module (EBCM/EBTCM) | Left Rear Of Engine Compartment Near Left Strut Tower. See .Fig 2 | |
| Electronic Traction Control Switch | Part Of Driver's Seat Heater Switch Assembly Behind Transmission Control Lever | |
| Fuse Block | Right Side Of Instrument Panel, Right Front Door Opening | |

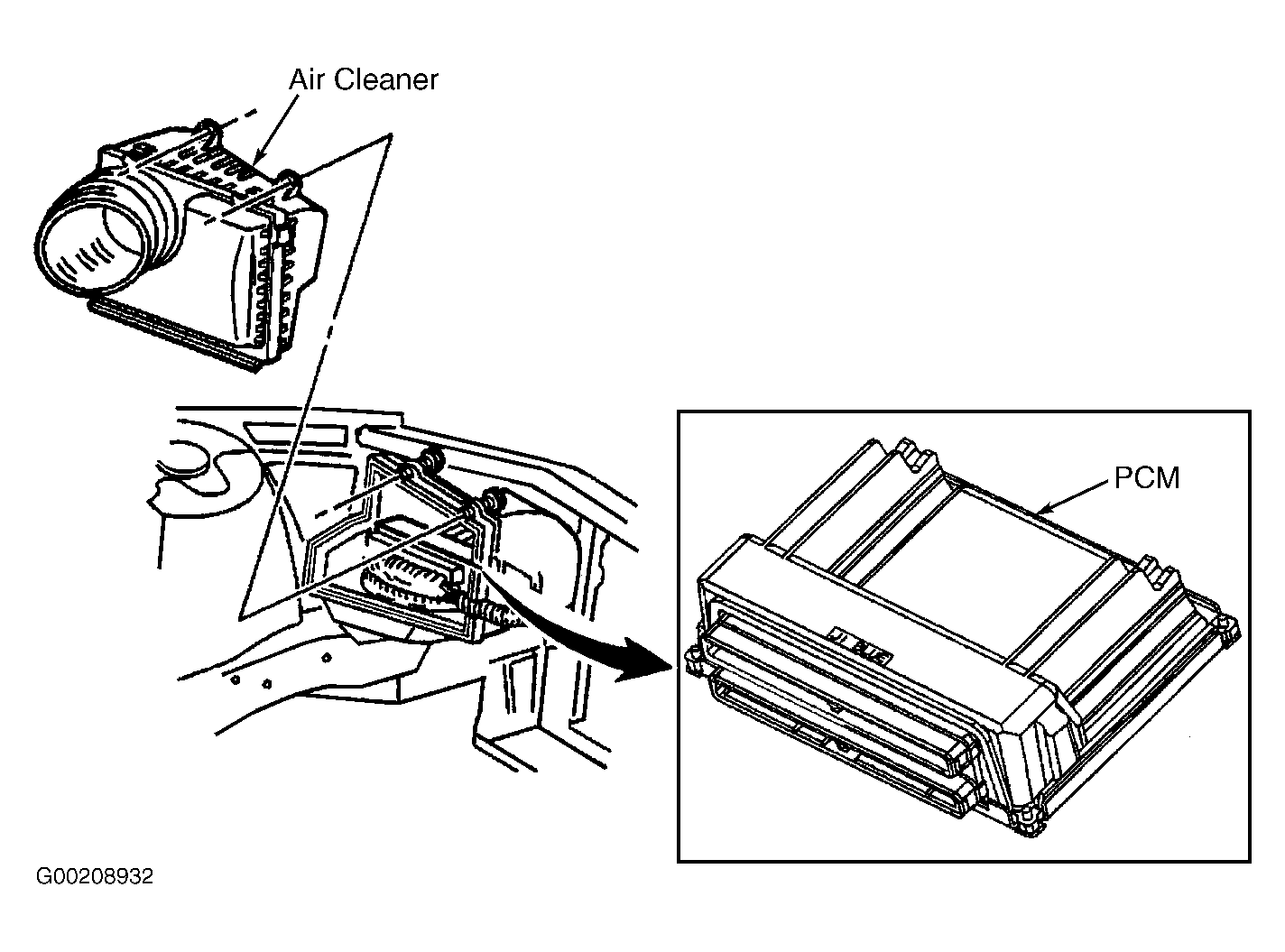

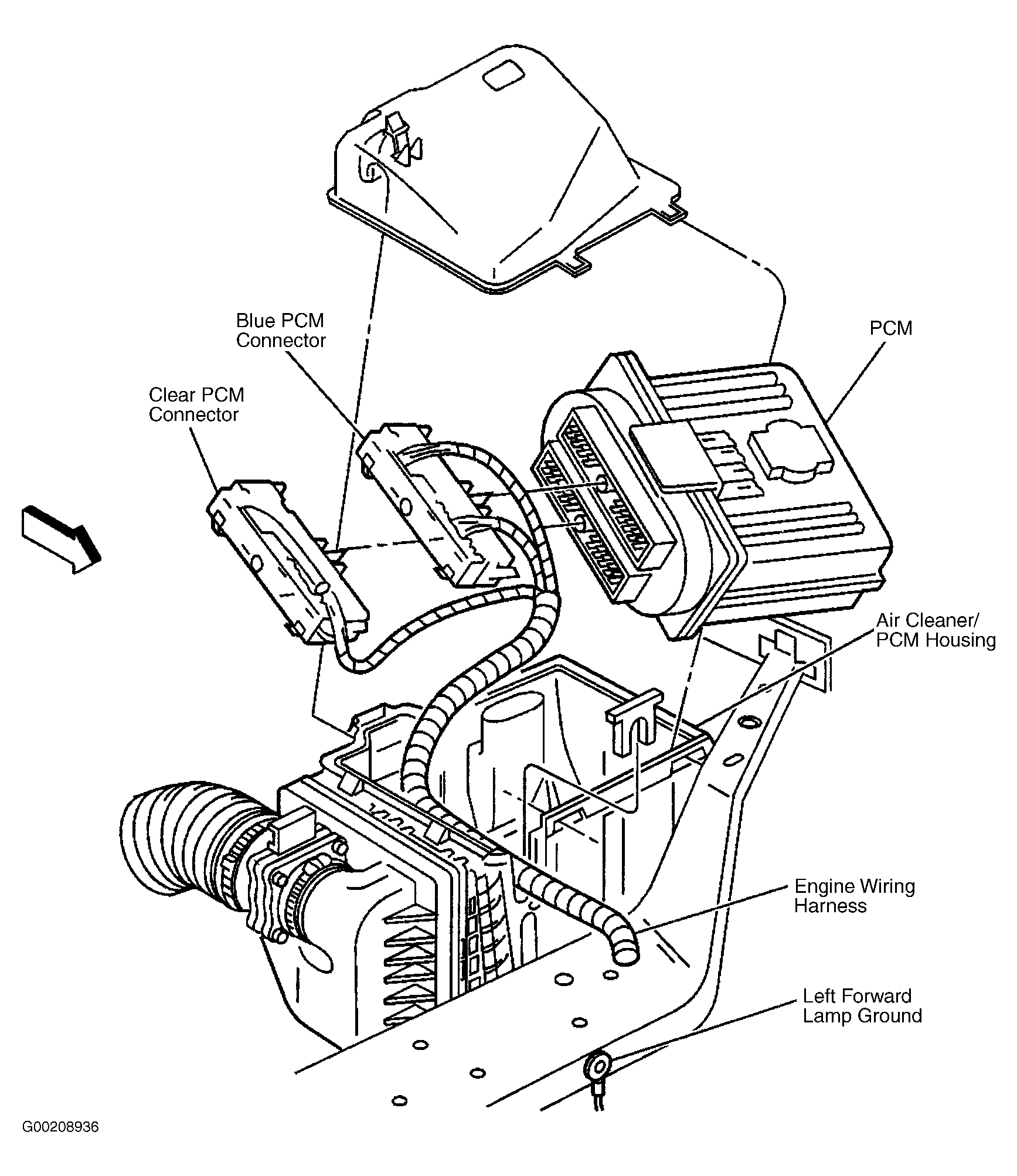

| Powertrain Control Module (PCM) | Front Left Side Of Engine, Inside Air Cleaner Assembly. See Fig 3 and Fig 4 . | |
| Seat Heater Switch | Part Of Driver's Seat Heater Switch Assembly Just Behind Transmission Control Lever | |
| Stop Lamp Switch | Right Side Of Brake Pedal Bracket | |
| Underhood Accessory Wiring Junction Block | Right Side Of Engine Compartment, Mounted On Strut Tower | |
| Wheel Speed Sensors | One Mounted Inside Each Wheel Hub | |
