Description & Operation
WARNING: This page is about a different car, the 1999 Pontiac Grand Am and 1999 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Deactivate air bag system before performing any service operation. See appropriate
AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

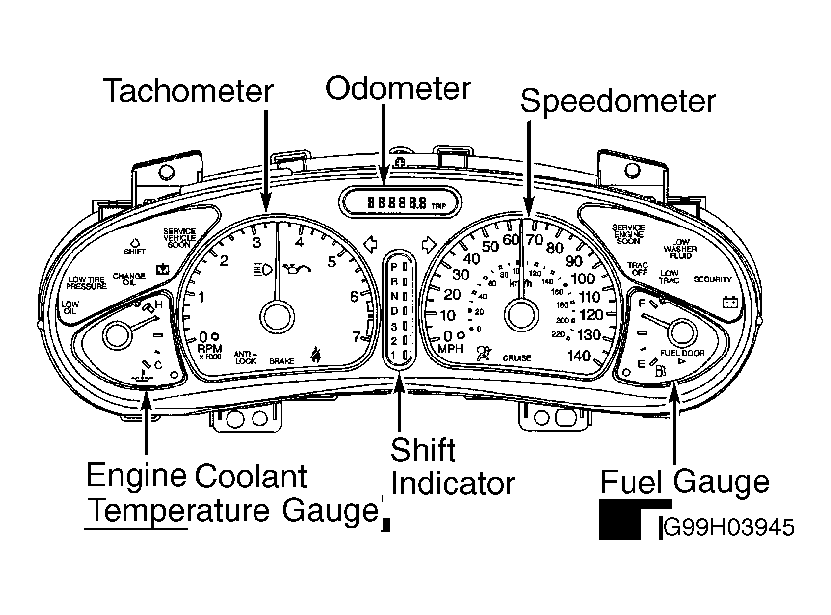

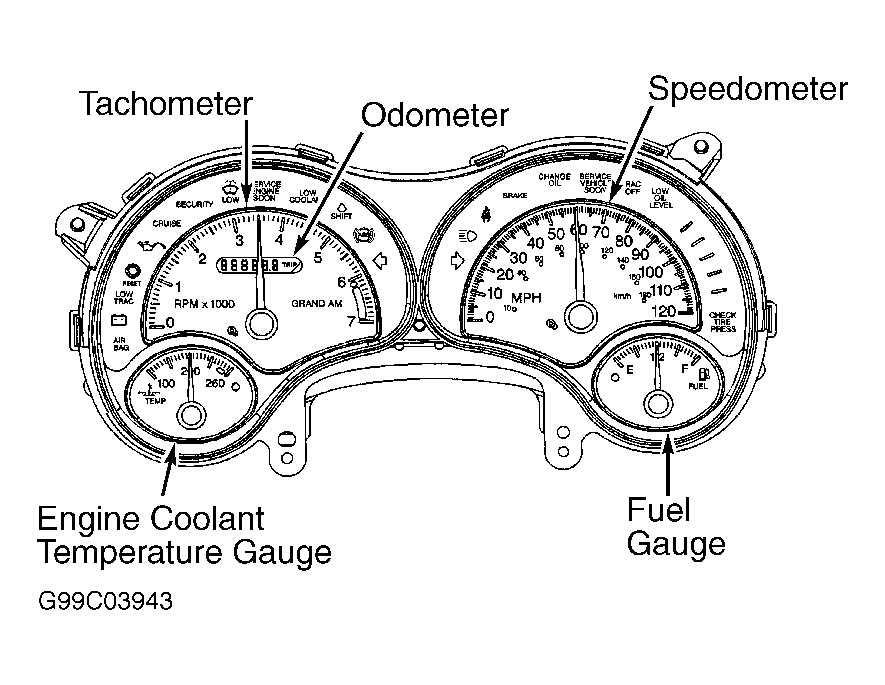

The instrument panel cluster includes an analog speedometer (with stepper motor driven season and trip odometer on gauge clusters), coolant temperature gauge, oil pressure gauge, fuel gauge and tachometer (on gauge clusters). Warning indicator lights include: high beam, turn signals, SHIFT (on M/T), air bag, LOW COOLANT, CHANGE OIL, LOW OIL, SERVICE ENGINE SOON, SERVICE VEHICLE SOON, CRUISE, CHECK/LOW TIRE PRESSURE, AIR BAG, TRAC OFF, LOW TRAC, LOW WASHER FLUID, seat belt, oil pressure, BRAKE, ANTI-LOCK, charge and SECURITY. See Fig 1 or Fig 2 .
