Riding Height Specifications

WARNING: This page is about a different car, the 1997 Oldsmobile Cutlass and 1997 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Maximum variation between side-to-side and front-to-rear should not exceed .47" (12 mm).

RIDING HEIGHT SPECIFICATIONS

Application

⁽¹⁾ Front Dimension "A" In. (mm)

⁽²⁾ Rear Dimension "B" In. (mm)

Cutlass & Malibu

9.4 (238)

9.6 (243)

⁽¹⁾	Location "A" is measured 31.5" (800 mm) from center of front axle. Dimension "A" is measured from floor to rocker panel. See Fig 1 .

⁽²⁾	Location "B" is measured 22.0" (560 mm) from center of rear axle. Dimension "B" is measured from floor to rocker panel. See Fig 1 .

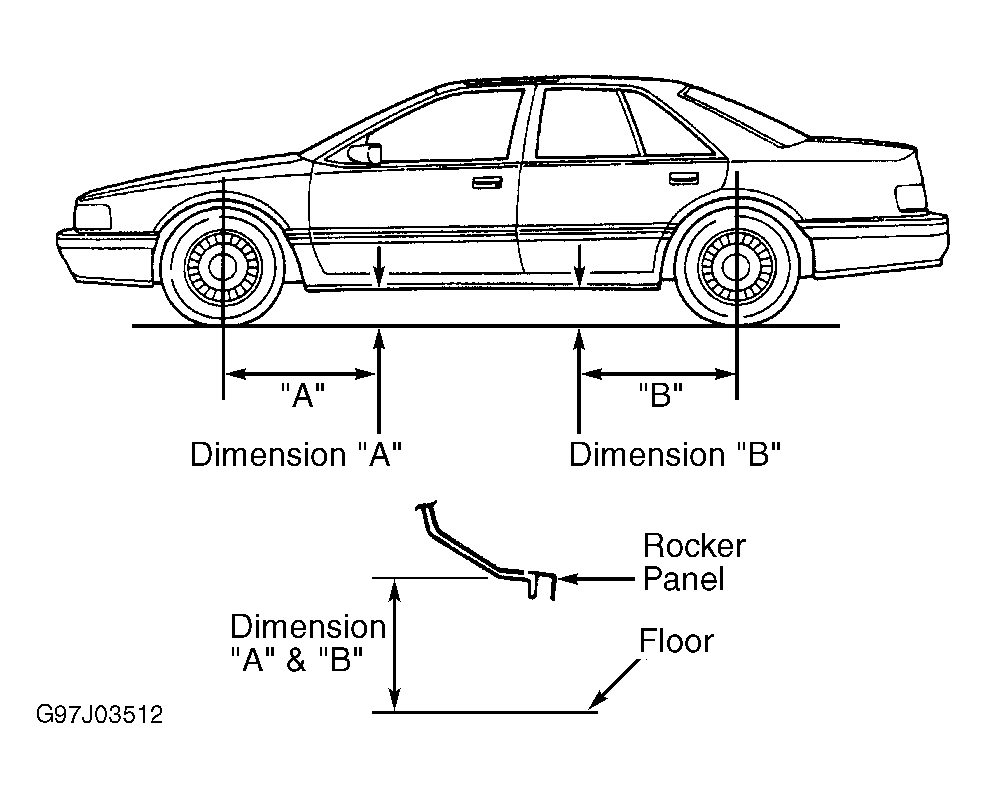

Fig 1: Riding Height Measuring Points

Courtesy of GENERAL MOTORS CORP.
