Section 13 (Front Suspension): Description
WARNING: This page is about a different car, the 1997 Pontiac Grand Am, 1997 Oldsmobile Cutlass, 1997 Oldsmobile Achieva, 1997 Chevrolet Malibu, and 1997 Buick Skylark. However, it is still accessible from the selected car via links, so may be relevant.

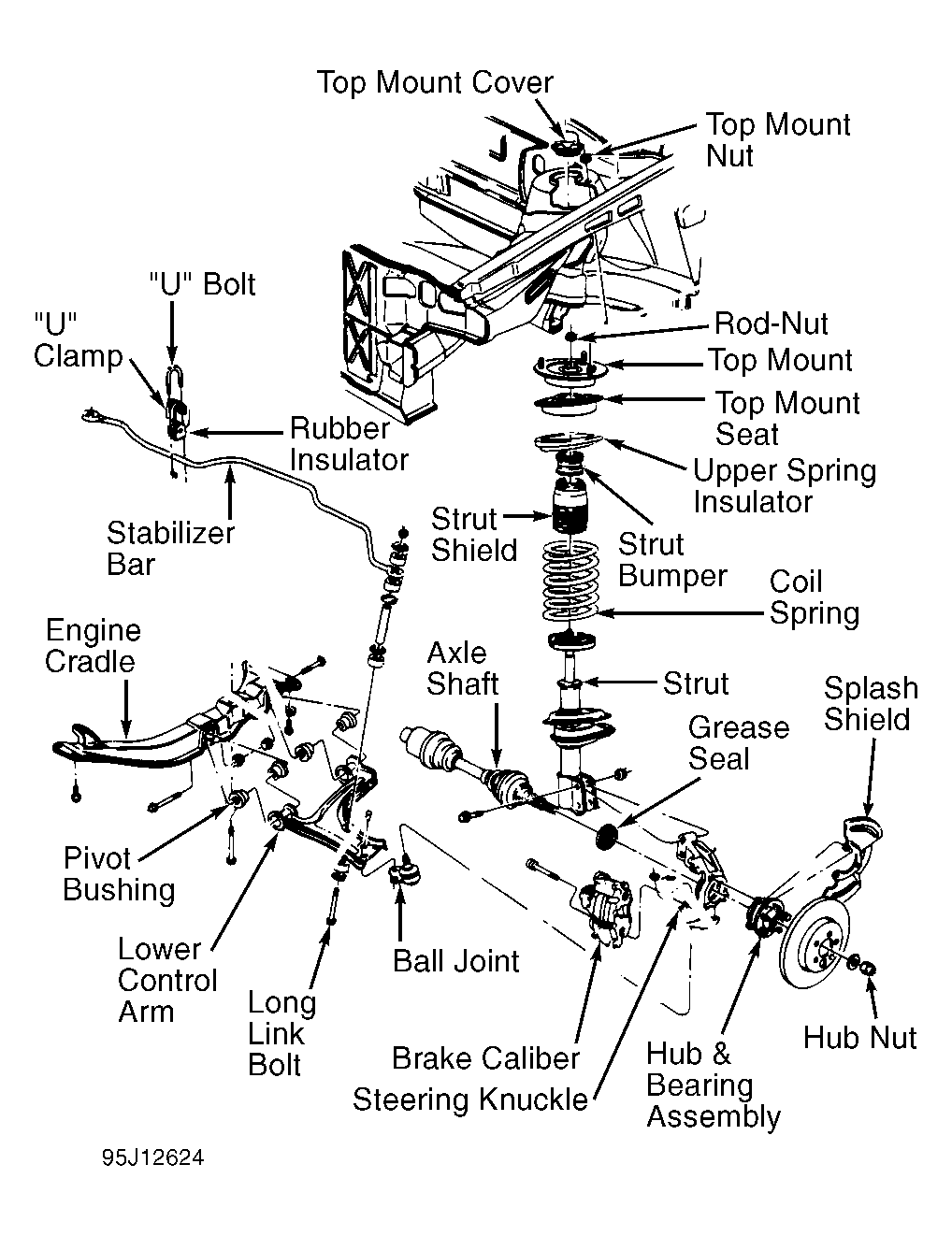

Suspension uses combined strut and coil spring assemblies. Lower control arms pivot on bushings at the frame (engine cradle). See Fig 1. Upper end of strut rotates on a bearing. Lower end of strut is attached to the steering knuckle. Steering knuckle pivots on a ball joint on the lower control arm.
