Hub & Bearing Assembly: Installation

To install, reverse removal procedure. See Fig 3 . Install and tighten hub and bearing assembly bolts to specification. See TORQUE SPECIFICATIONS  .

Fig 1: Removing Axle Shaft Nut & Washer

Courtesy of GENERAL MOTORS CORP.

Fig 2: Separating FWD Axle Shaft

Courtesy of GENERAL MOTORS CORP.

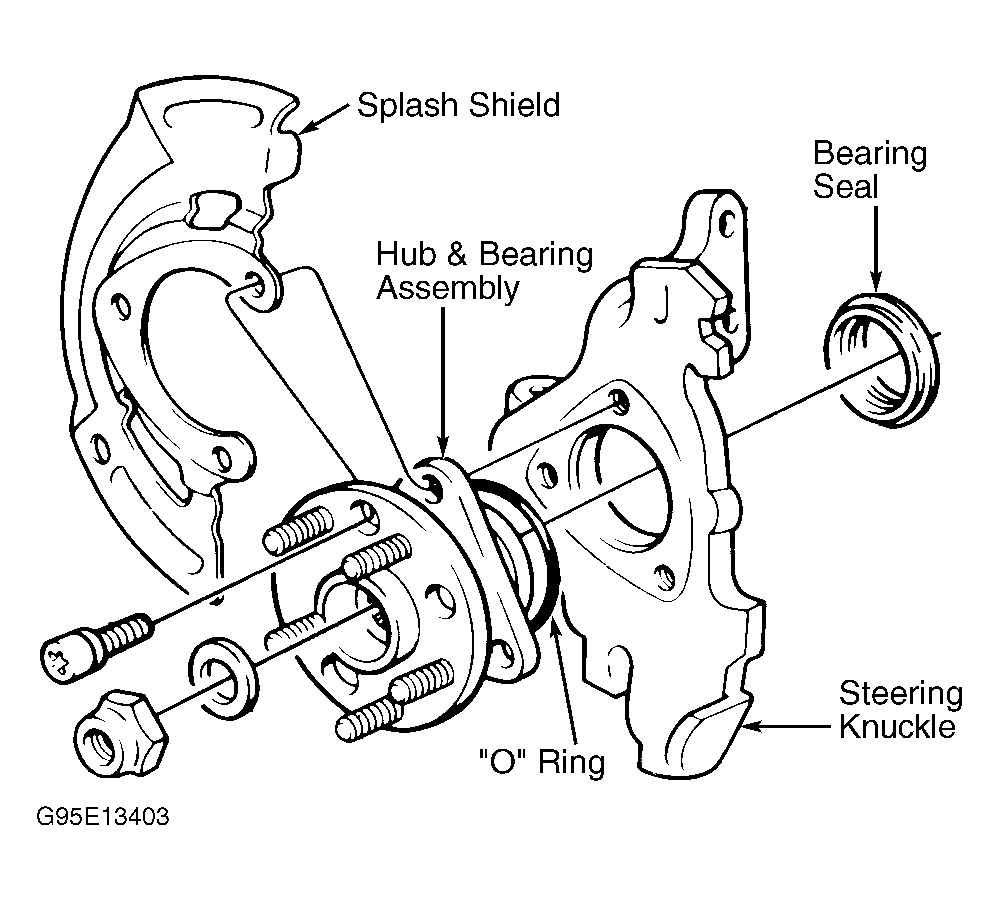

Fig 3: Exploded View Of Hub & Bearing Assembly (Typical)

Courtesy of GENERAL MOTORS CORP.
