Wiring Diagrams

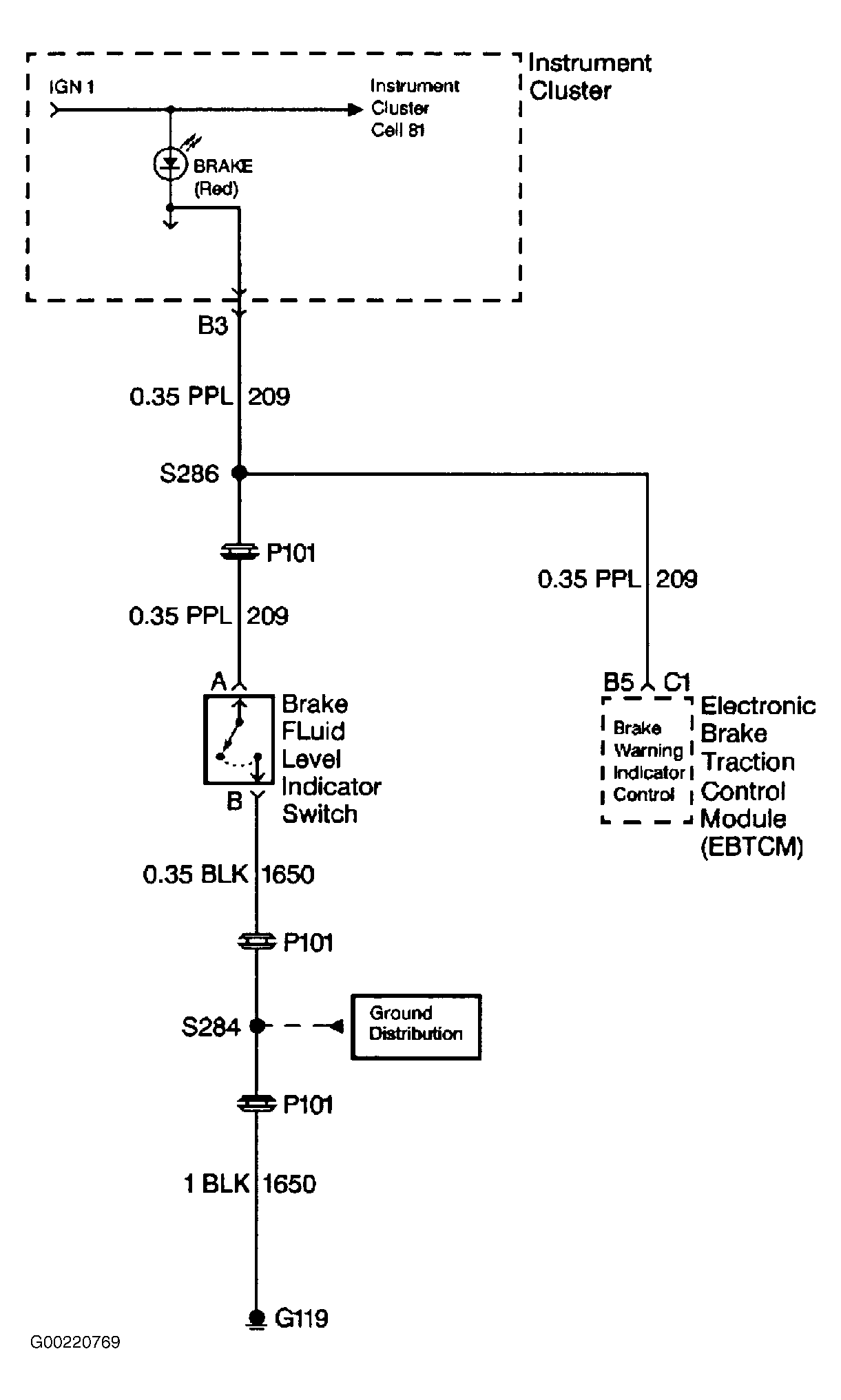

Fig 1: Brake Warning System Wiring Diagram

G00220769

Courtesy of GENERAL MOTORS CORP.
