Parking Brake Front Cable: Removal

  1. Raise and suitably support the vehicle.
  2. Loosen the parking brake cable at the equalizer. See Fig 1.

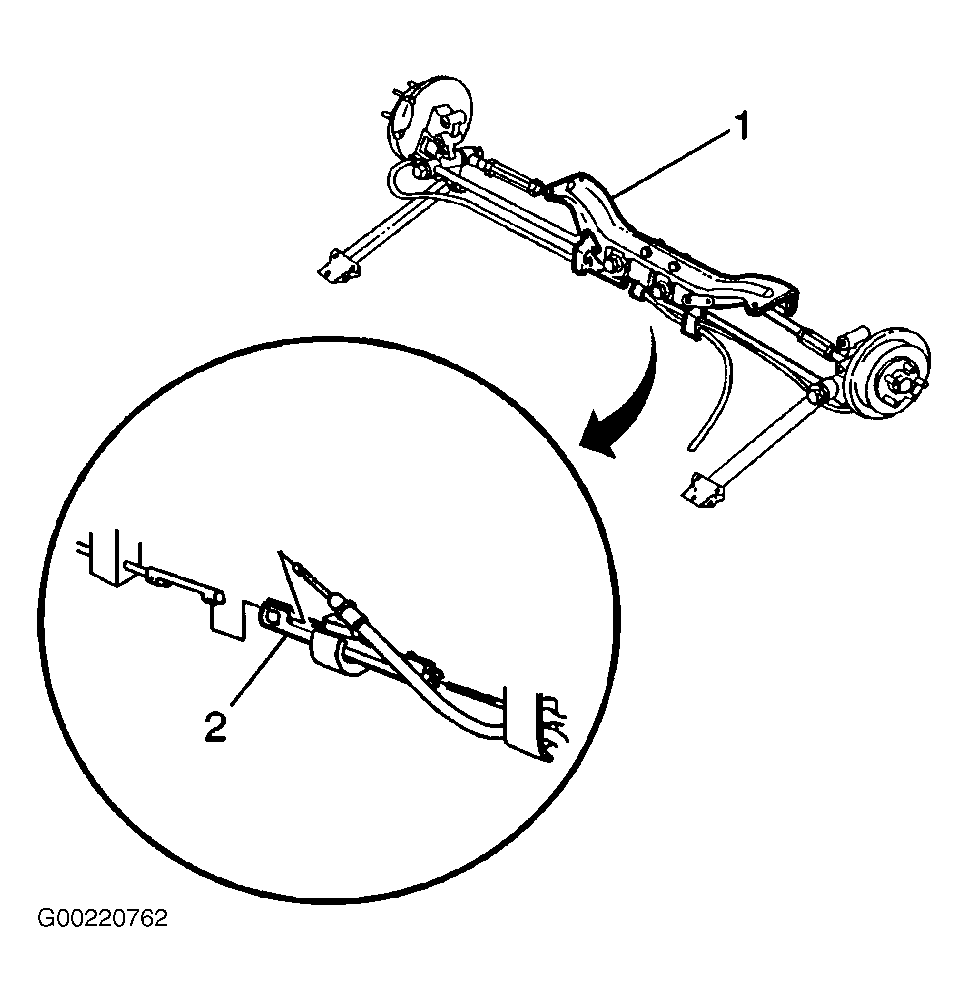

    Fig 1: Loosening Parking Brake CableAt Equalizer
    G00220762Courtesy of GENERAL MOTORS CORP.
  3. Remove the cable from the mounting bracket. See Fig 2.

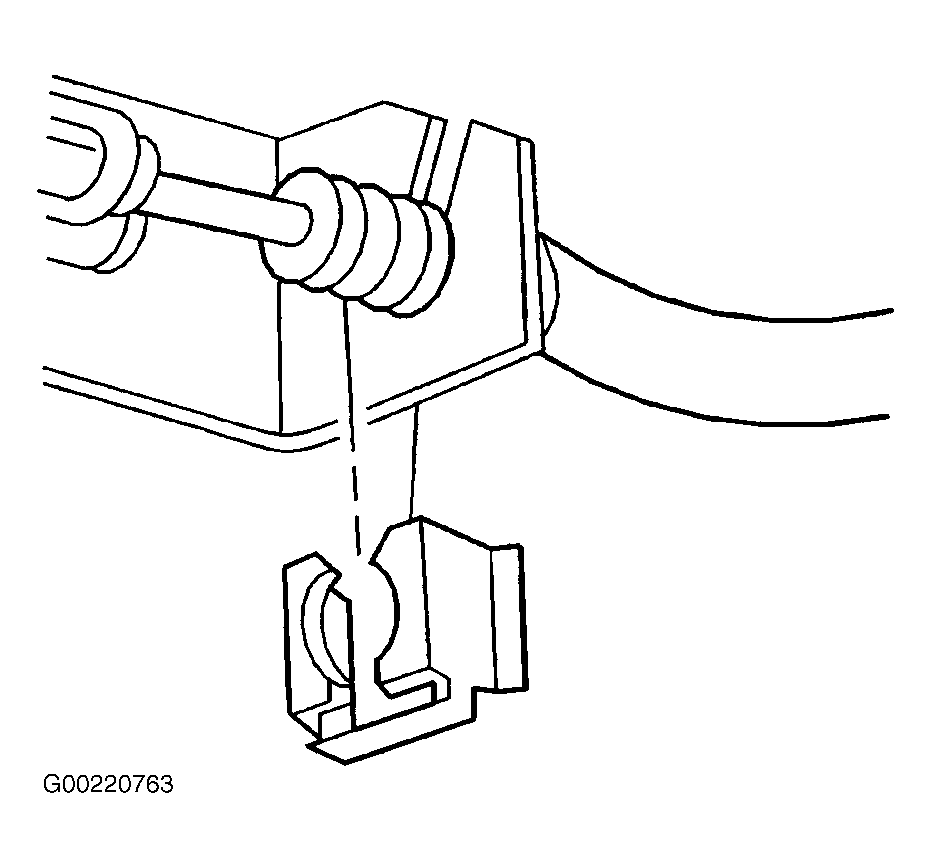

    Fig 2: Removing Parking Brake Cable From Mounting Brackets
    G00220763Courtesy of GENERAL MOTORS CORP.
  4. Remove the cable from the actuator lever.
  5. Remove cable from the support bracket using the Parking Brake Cable Release Tool (J 37043). See Fig 3.

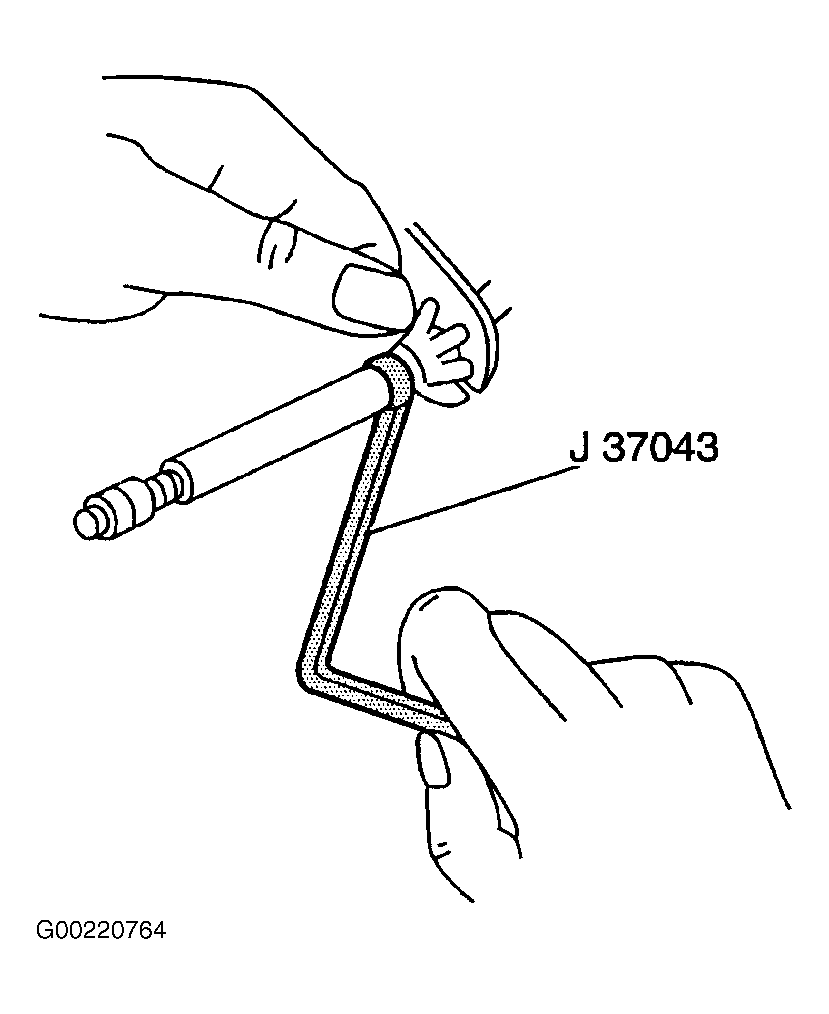

    Fig 3: Removing Parking Brake Cable From Support Bracket
    G00220764Courtesy of GENERAL MOTORS CORP.
  6. Remove the parking brake cable from the vehicle.
