Master Cylinder Reservoir: Installation
- Lubricate the new O-rings and the reservoir-to-housing fittings with clean brake fluid.

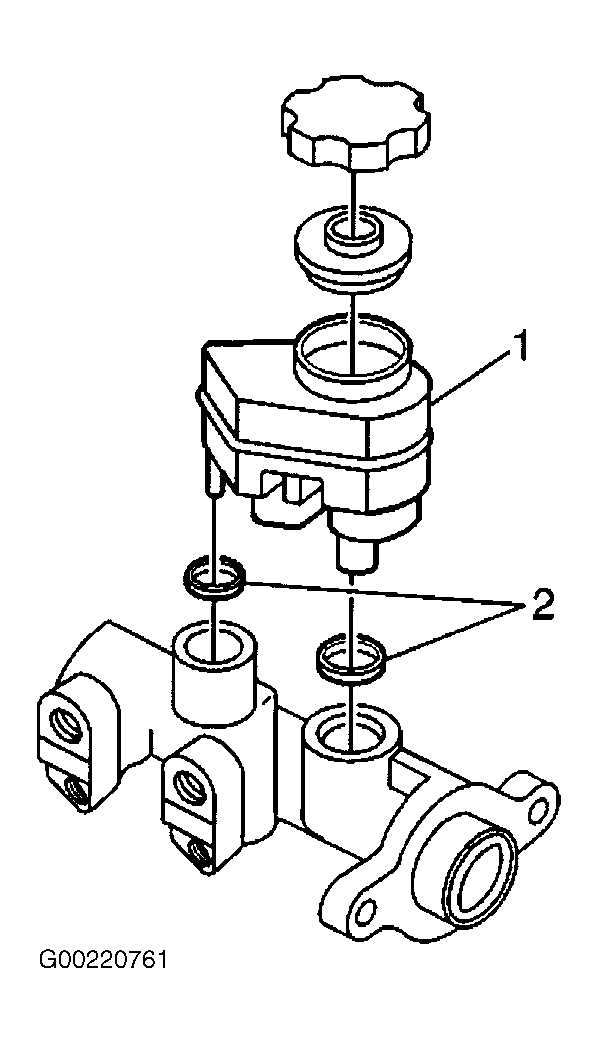

- Insert the O-rings (2) into the grooves in the reservoir. Make sure that the O-rings are properly seated. See Figure.
- Connect the reservoir (1) to the master cylinder body. Use your hand in order to press the reservoir straight down into the body.
- Carefully install the spring pins in order to retain the reservoir. Do not damage the reservoir or the cylinder body.
- Install master cylinder. Refer to MASTER CYLINDER .
