Fluid Level Sensor: Removal

  1. Disconnect the electrical connector from the fluid level sensor (1). See Fig 1.
  2. Remove the fluid level sensor (1). Use needle nose pliers in order to compress the switch locking tabs at the outboard side of the master cylinder. See Fig 1.
  3. To install, reverse removal procedures.

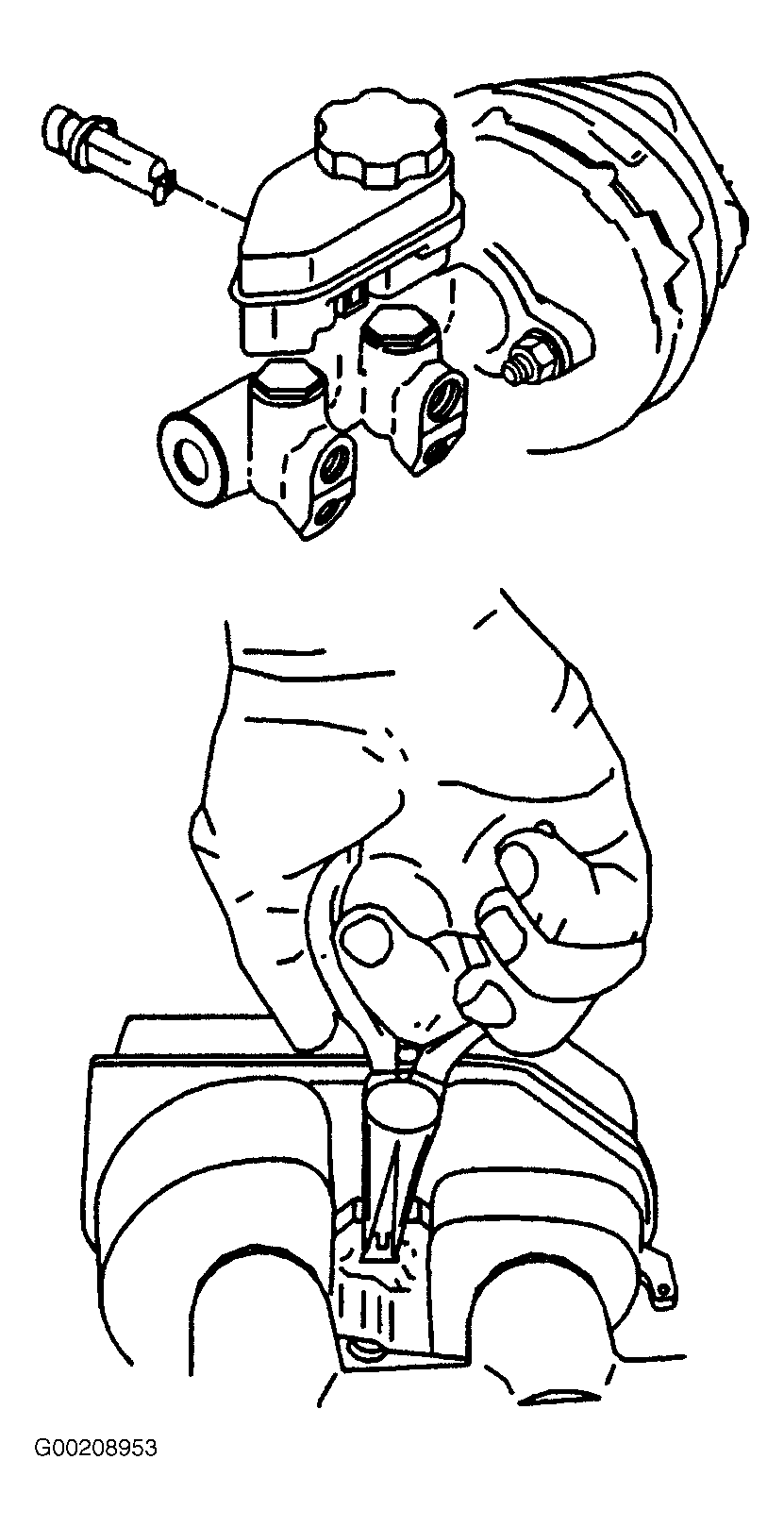

Fig 1: Removing Fluid Level Sensor
G00208953Courtesy of GENERAL MOTORS CORP.
