Connector Terminal Identification
>>
Evaporative Emission (EVAP) Canister Purge Valve & Evaporative Emission (EVAP) Canister Vent Solenoid
>>
Cutlass & MALIBU
Cutlass & MALIBU

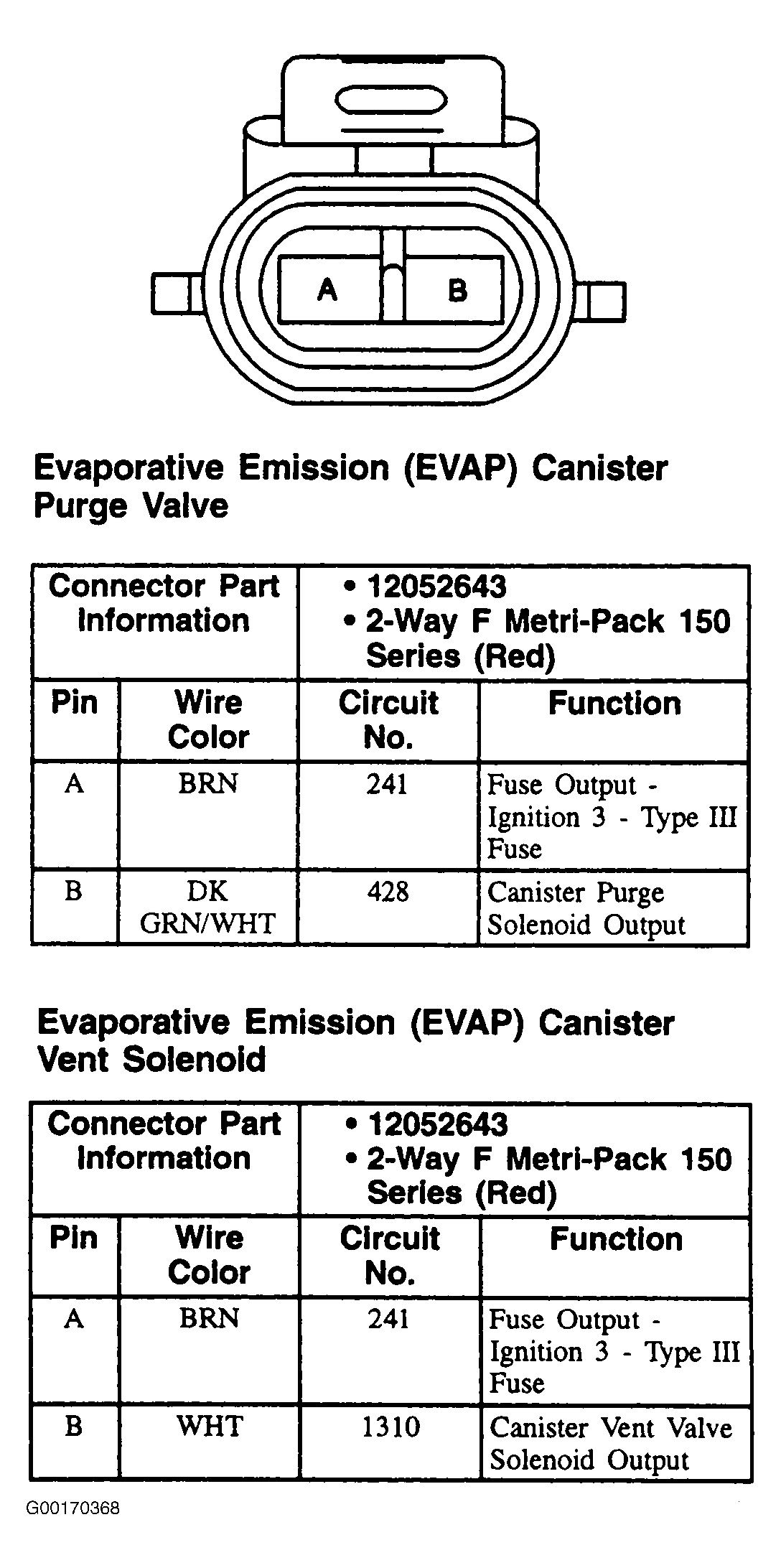

Fig 1: Evaporative Emission (EVAP) Canister Purge Valve & Evaporative Emission (EVAP) Canister Vent Solenoid (Cutlass & Malibu) - 2-Pin Connector (Red)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
