Automatic Transmission Hydraulic Diagrams - 4T60-E (Except 3.4L)

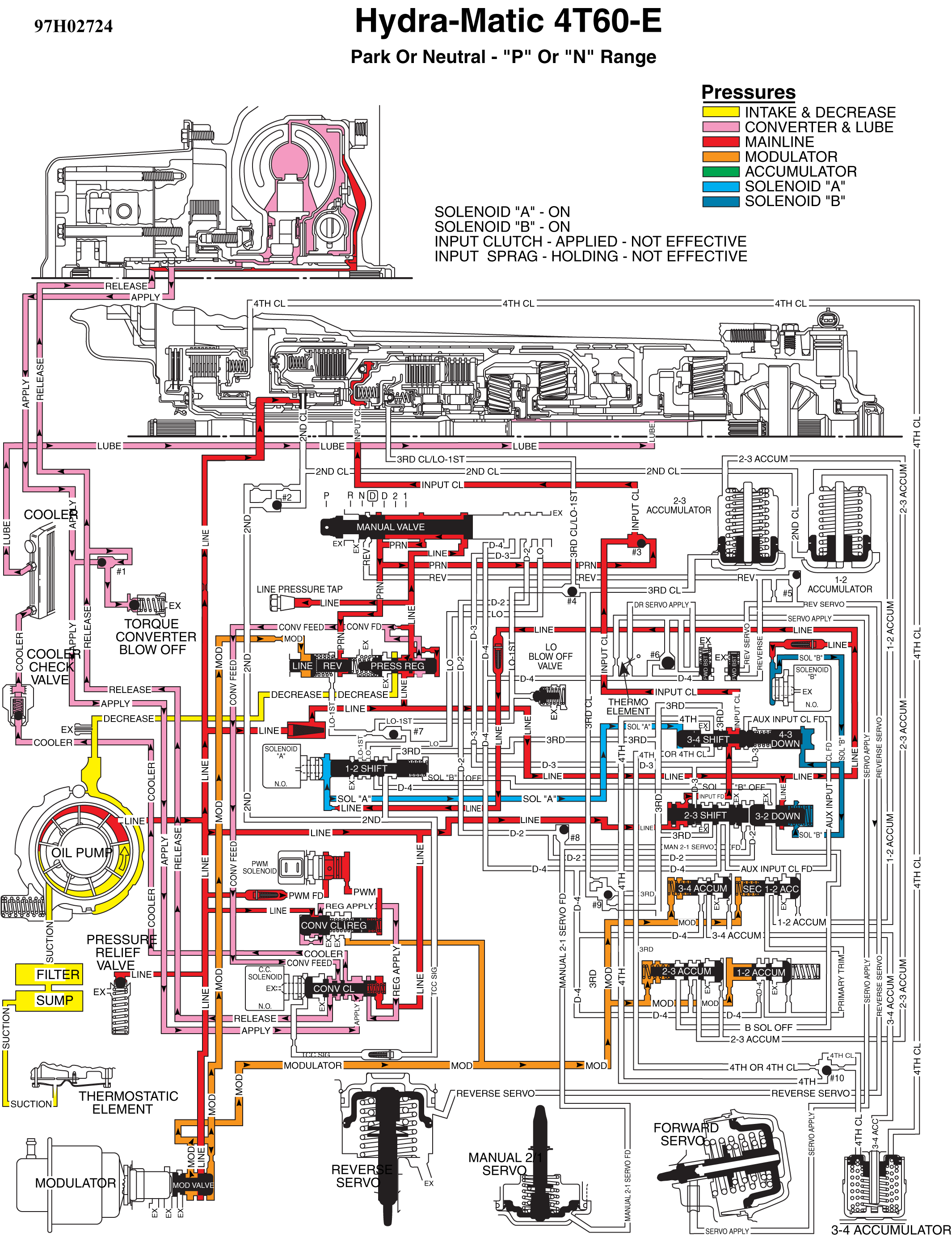

Fig 1: Park Or Neutral - "P" Or "N" Range

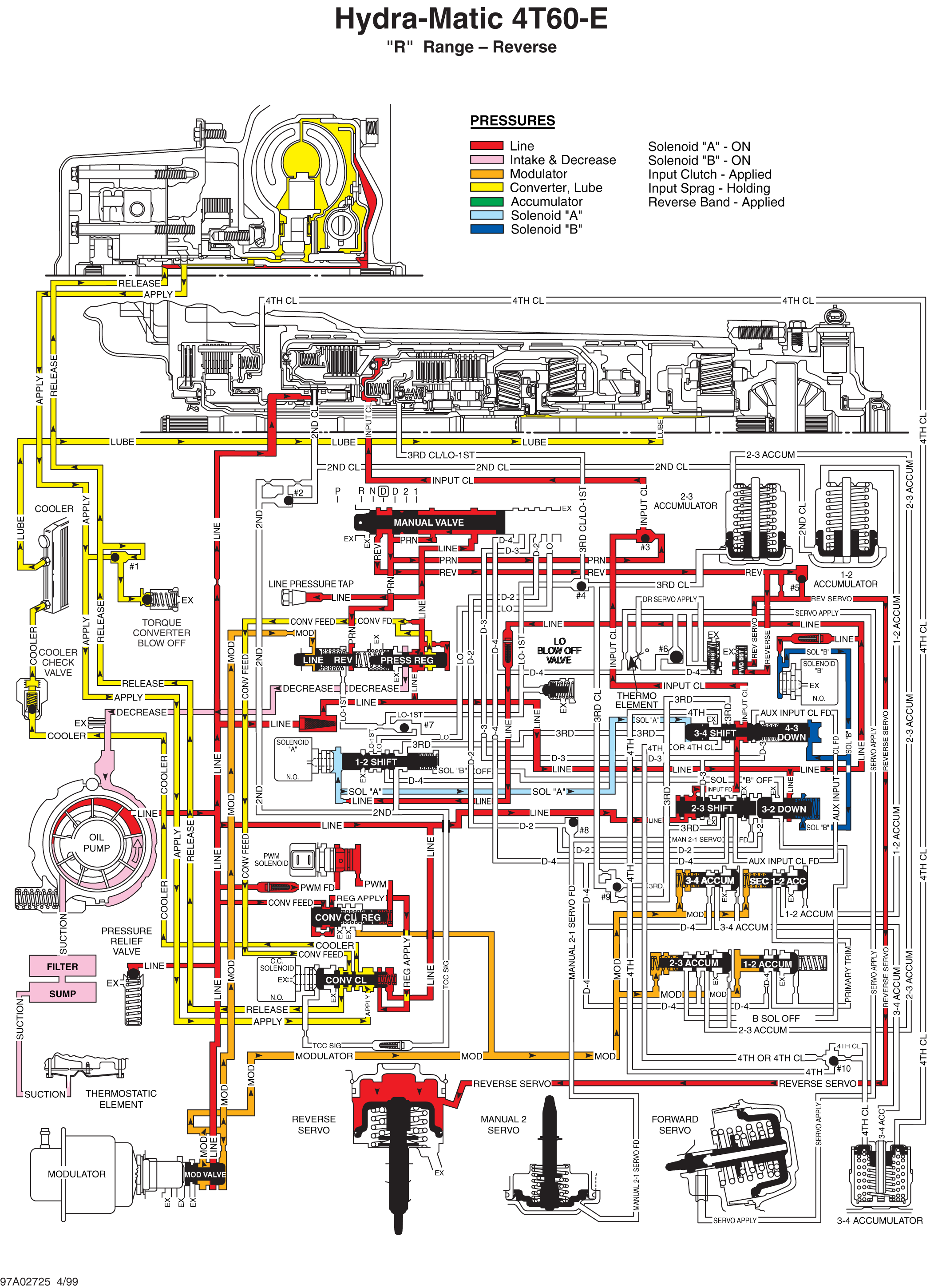

Fig 2: Reverse - "R" Range

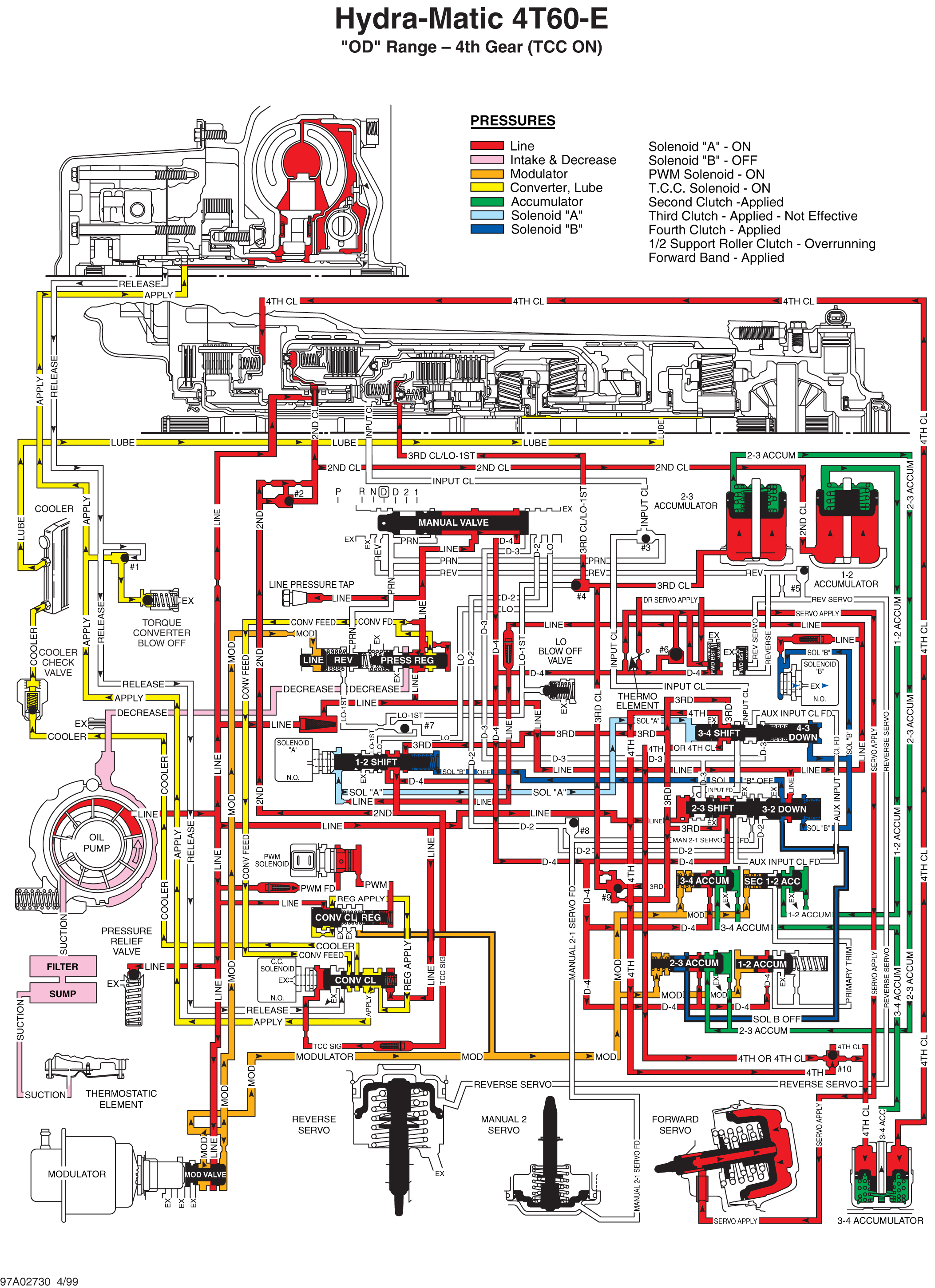

Fig 3: 4th Gear - "OD" Range (TCC On)

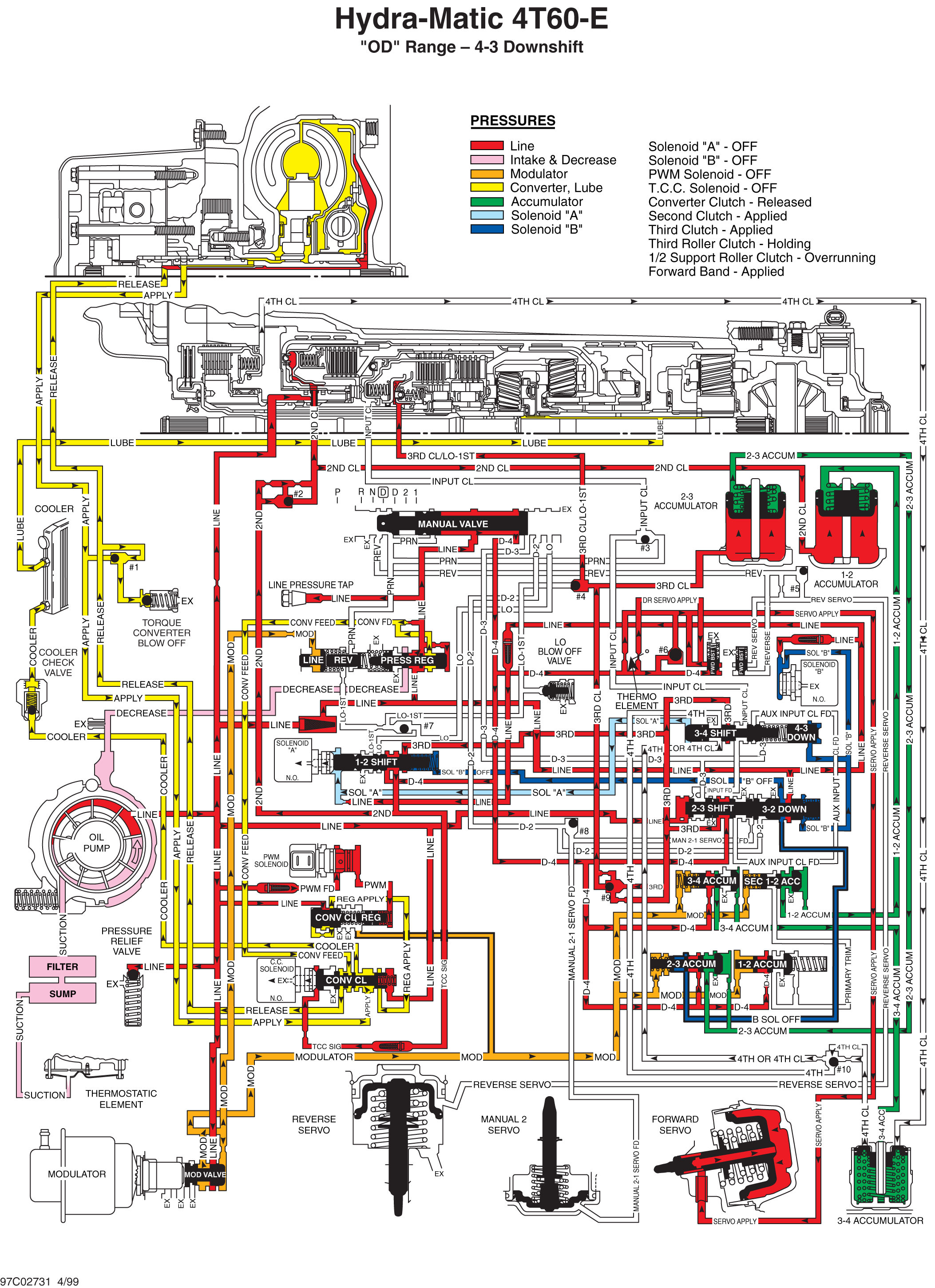

Fig 4: 4-3 Downshift - "OD" Range

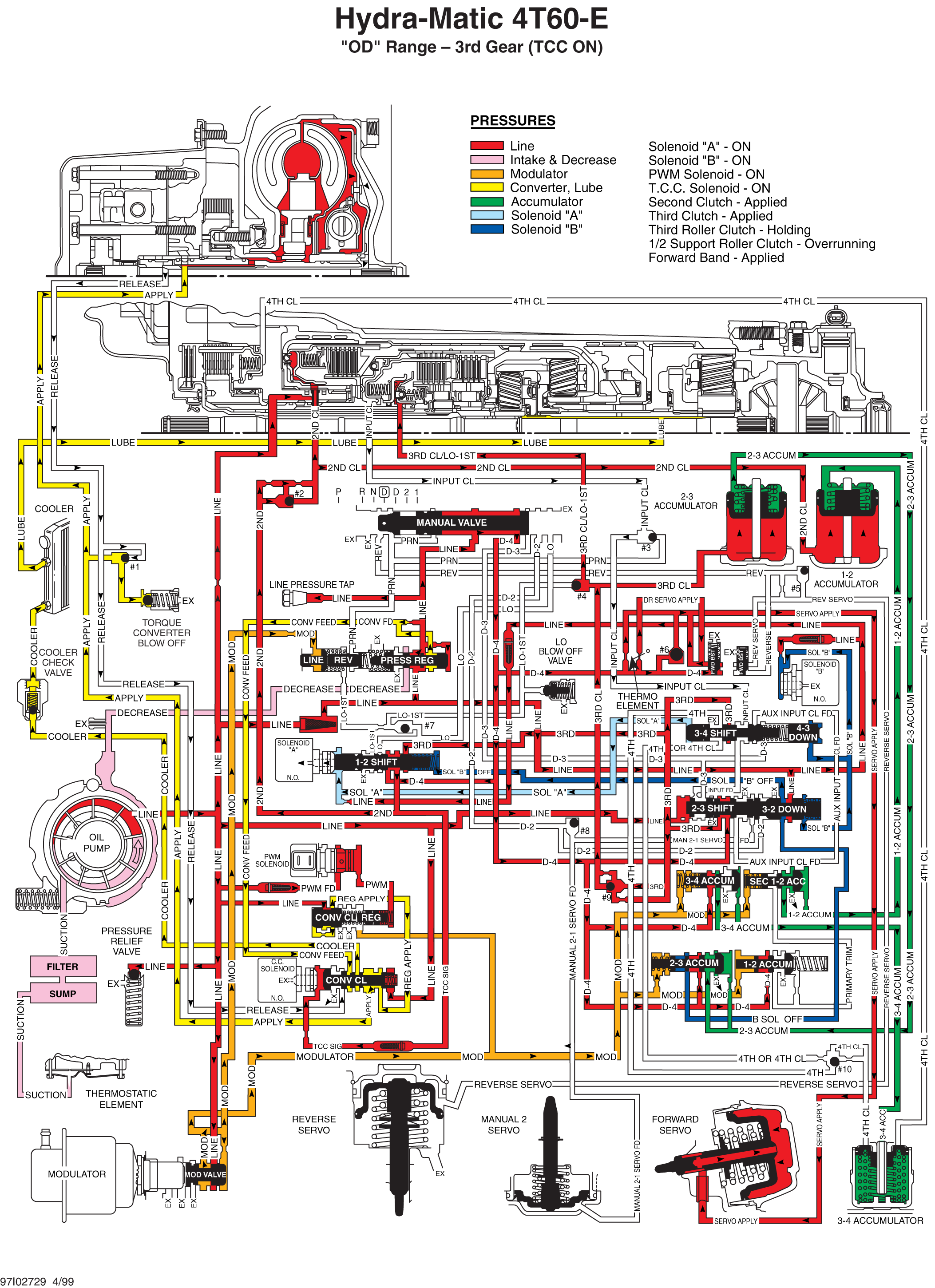

Fig 5: 3rd Gear - "OD" Range (TCC On)

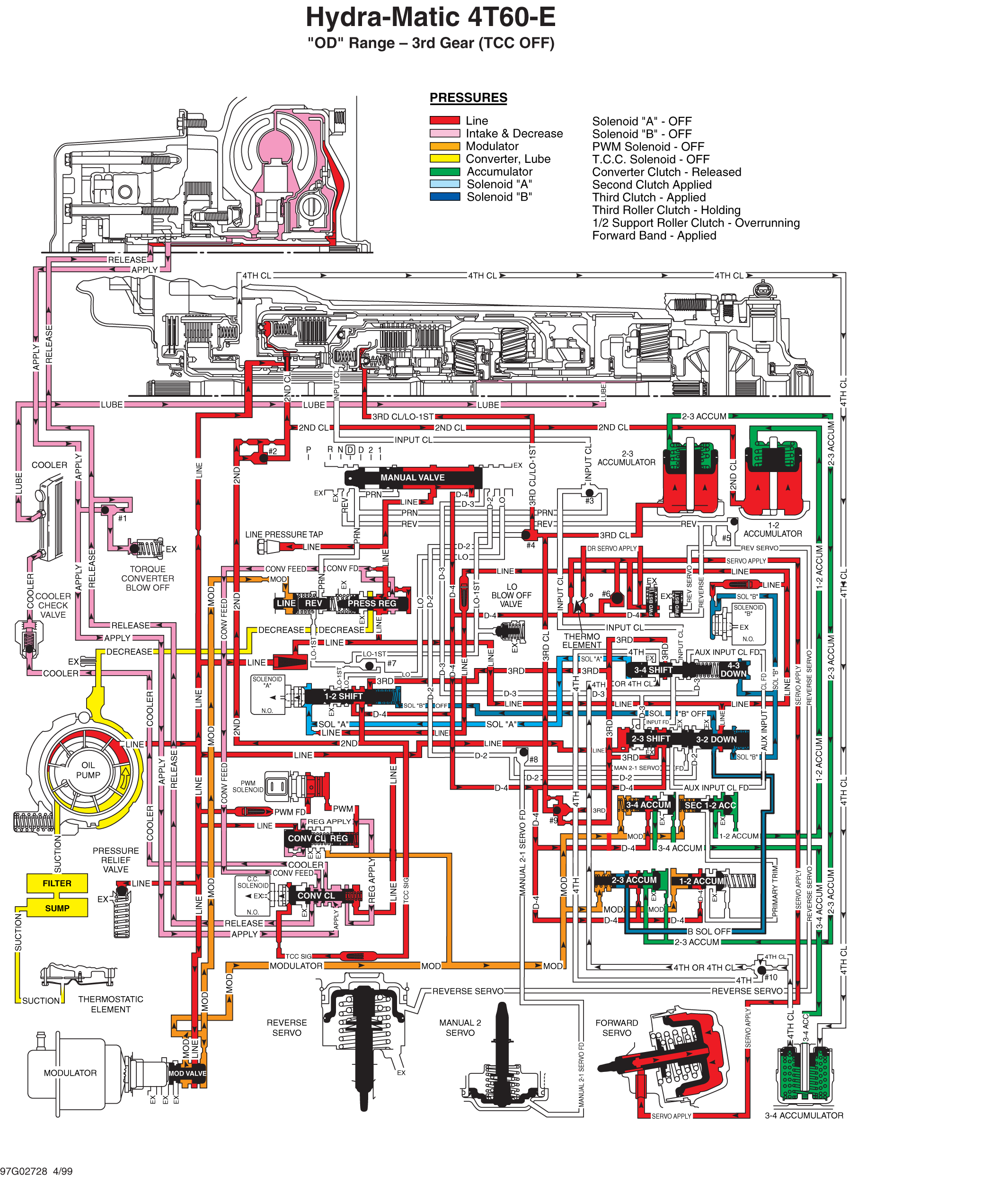

Fig 6: 3rd Gear - "OD" Range (TCC Off)

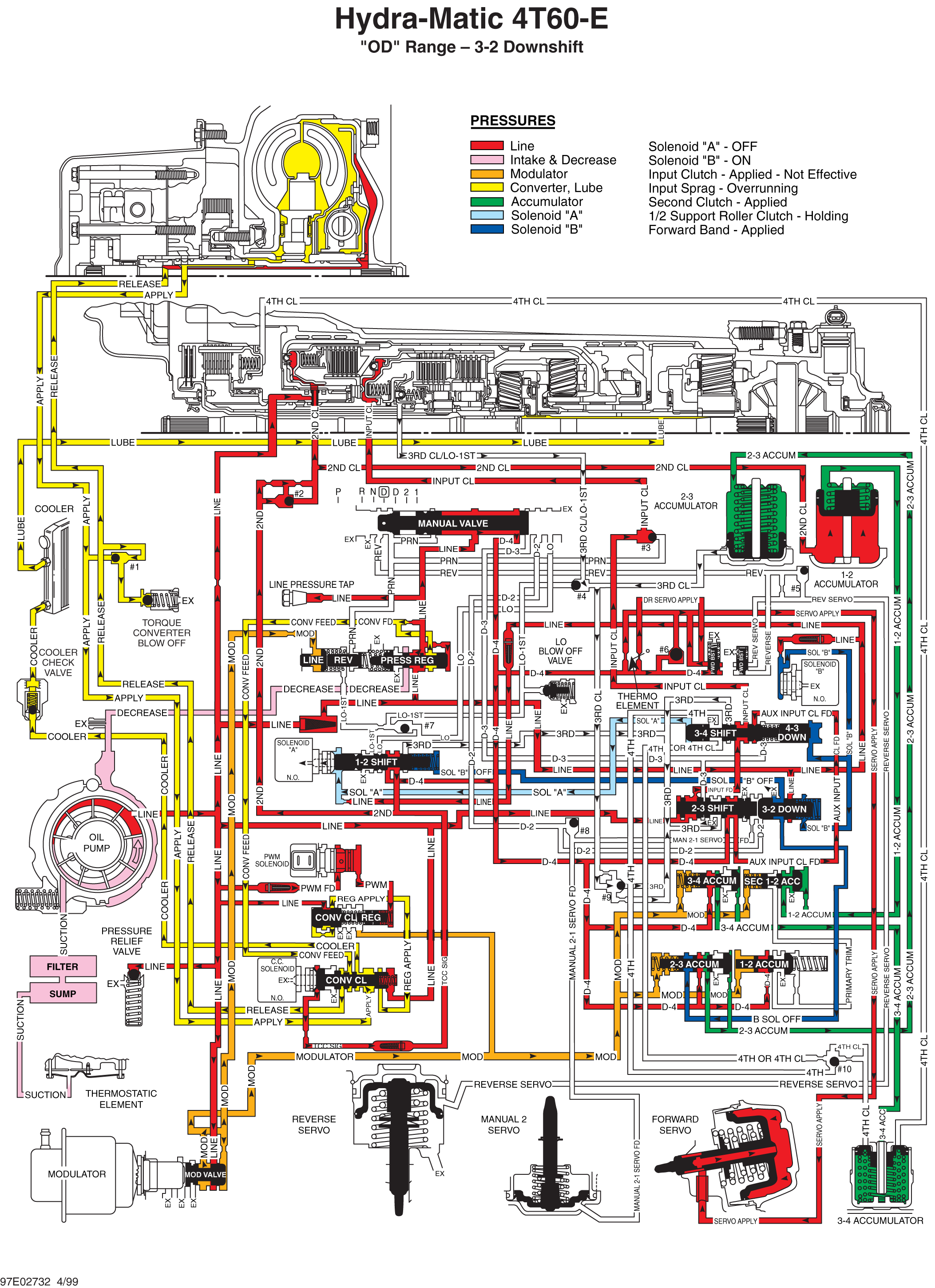

Fig 7: 3-2 Downshift - "OD" Range

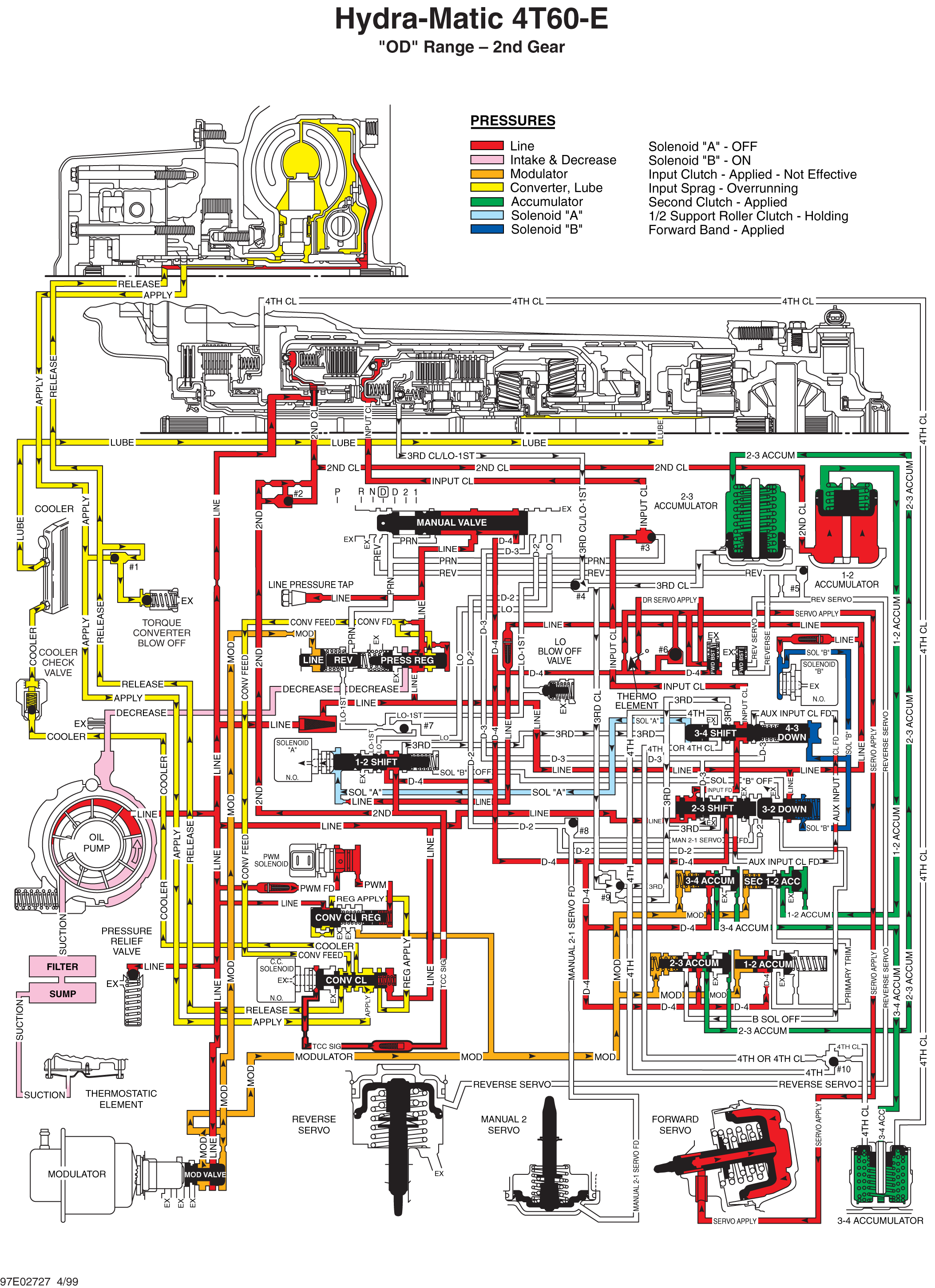

Fig 8: 2nd Gear - "OD" Range

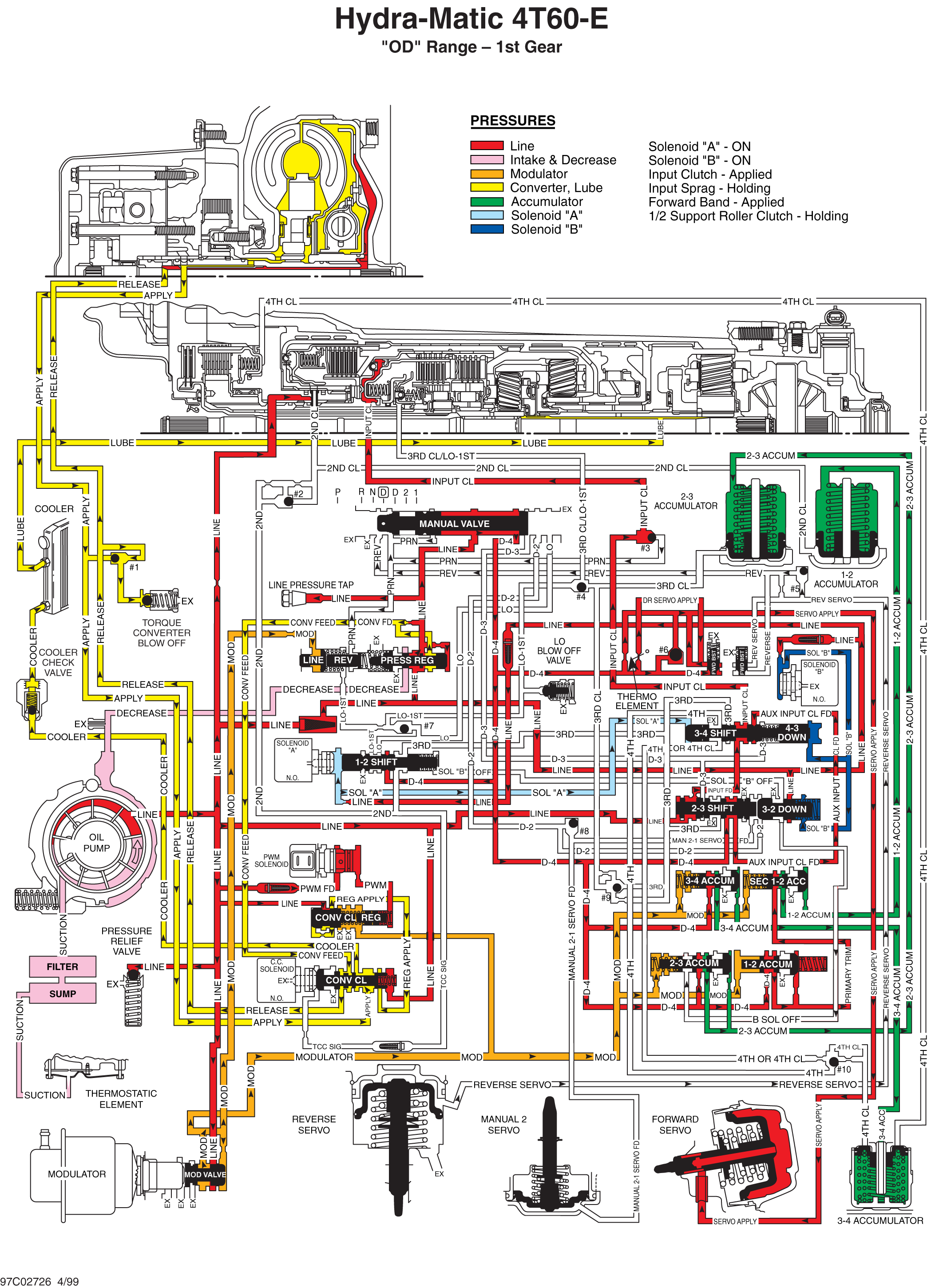

Fig 9: 1st Gear - "OD" Range

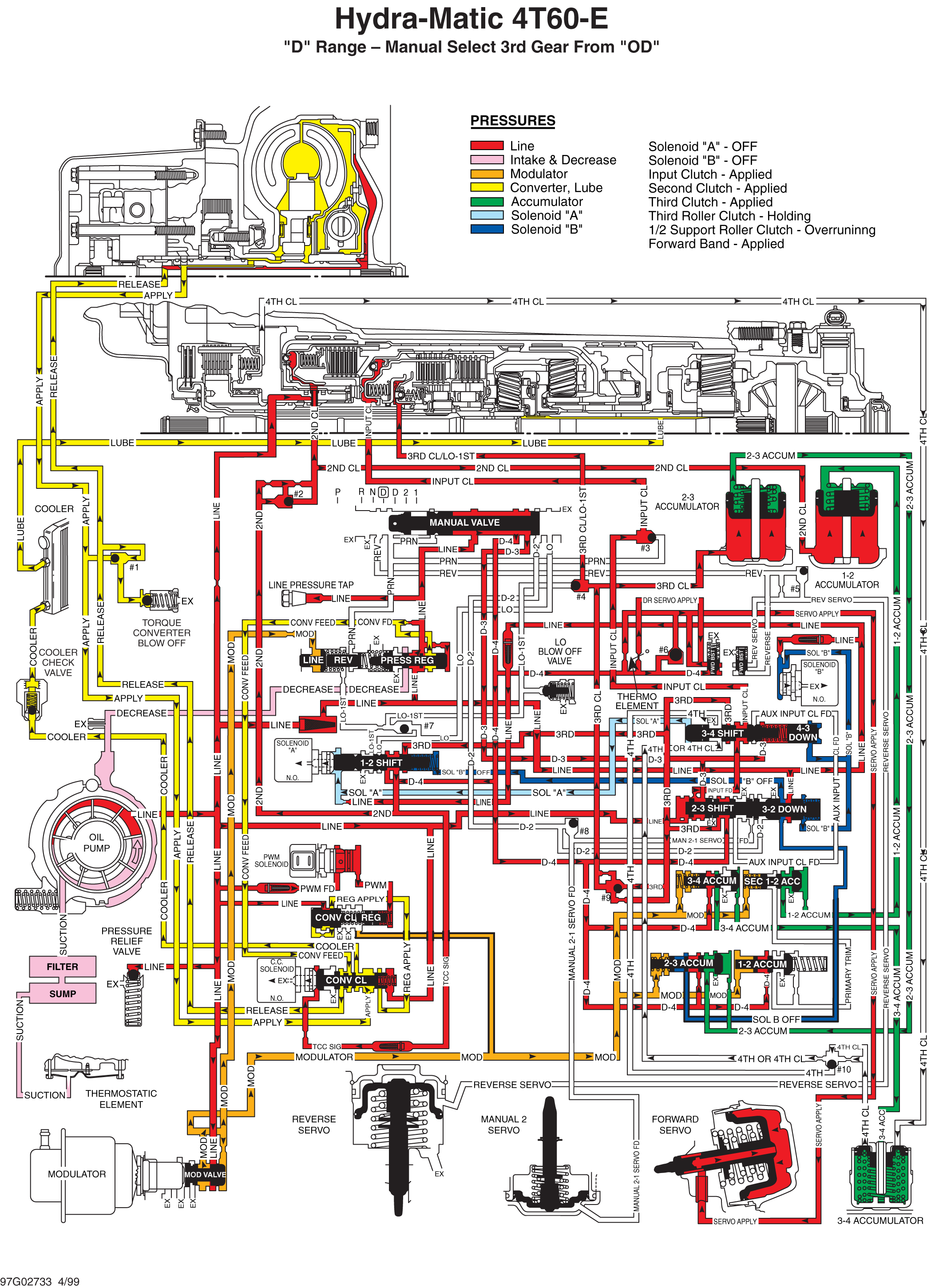

Fig 10: 3rd Gear - "D" Range (Manual Select From "OD")

Fig 11: 2nd Gear - "D" Range (Manual Select From "D")

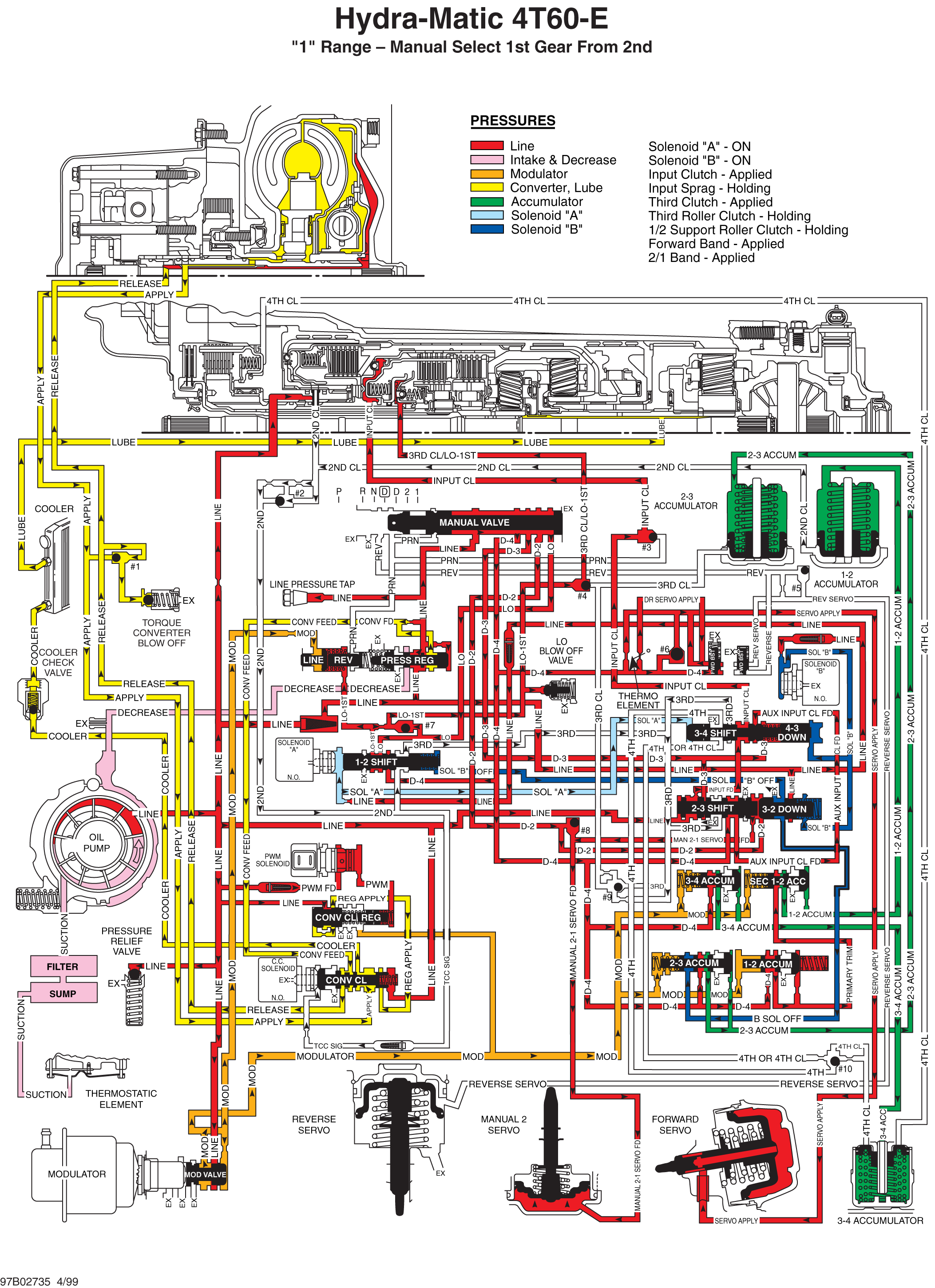

Fig 12: 1st Gear - "D" Range (Manual Select From 2nd)
