Oldsmobile
>>
1993
>>
Cutlass Supreme Base, 3.4 X
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel - Electronic
>>
Wiring Diagrams
Wiring Diagrams

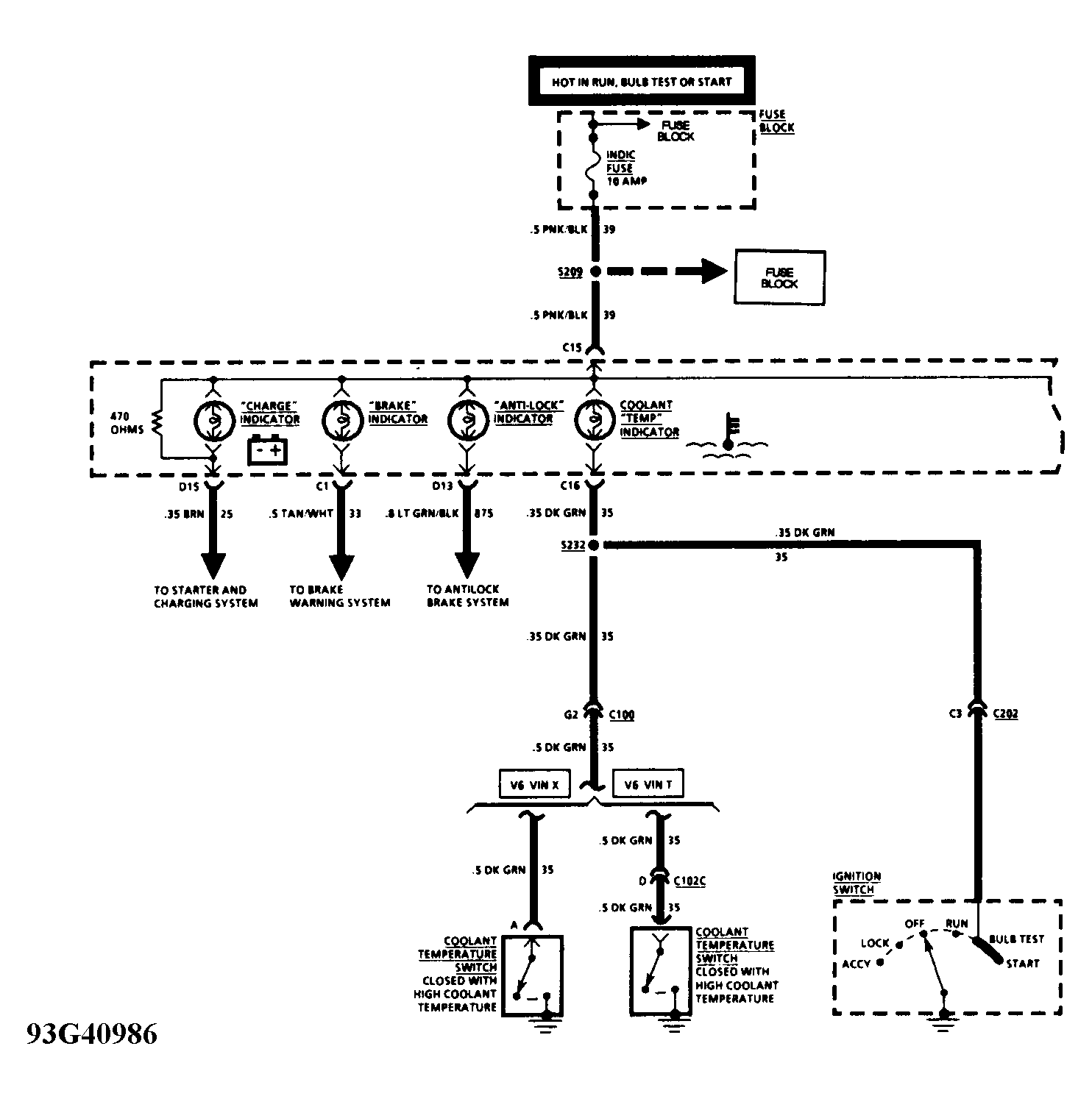

Fig 1: Electronic Instrument Panel Wiring Diagram (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

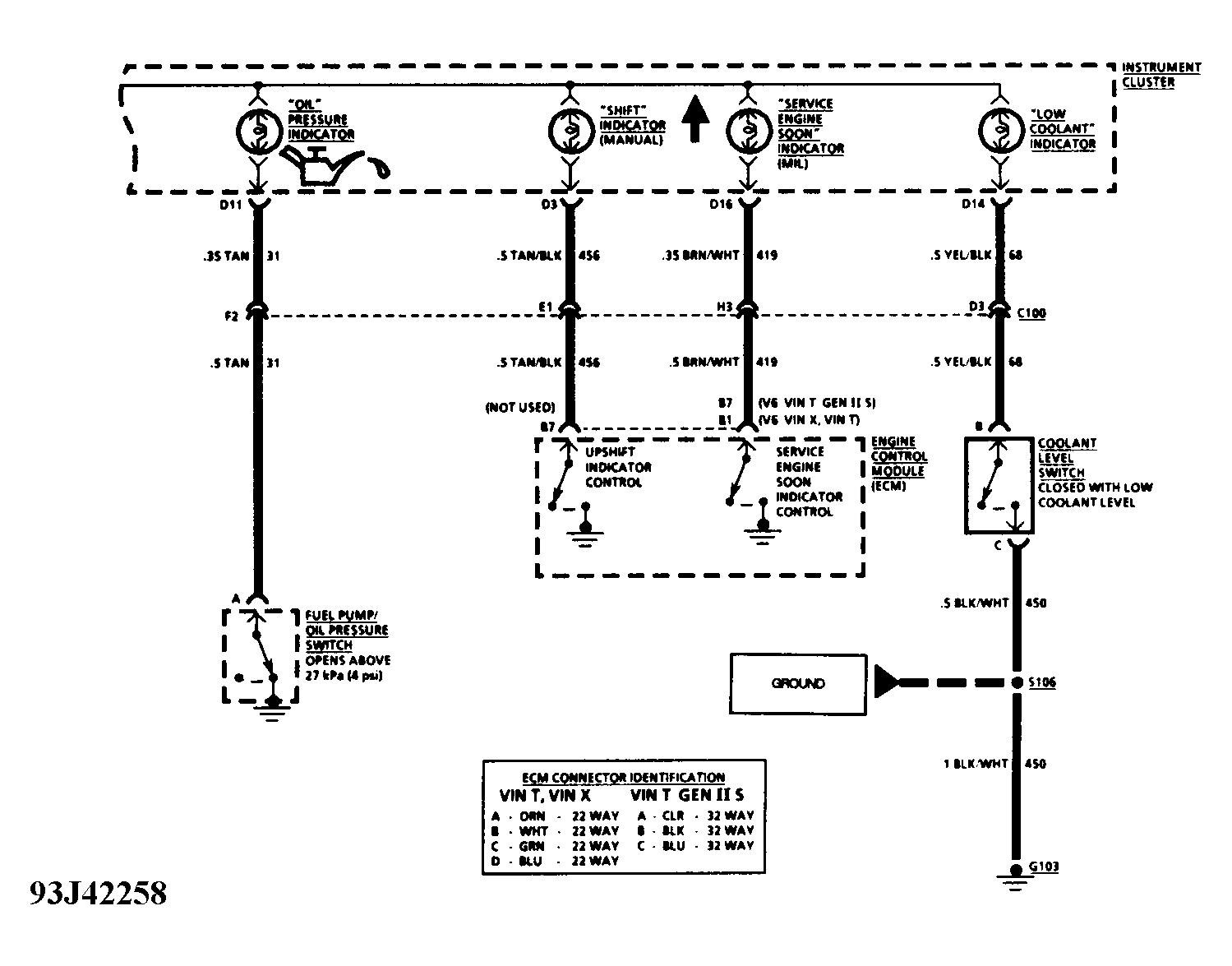

Fig 2: Electronic Instrument Panel Wiring Diagram (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

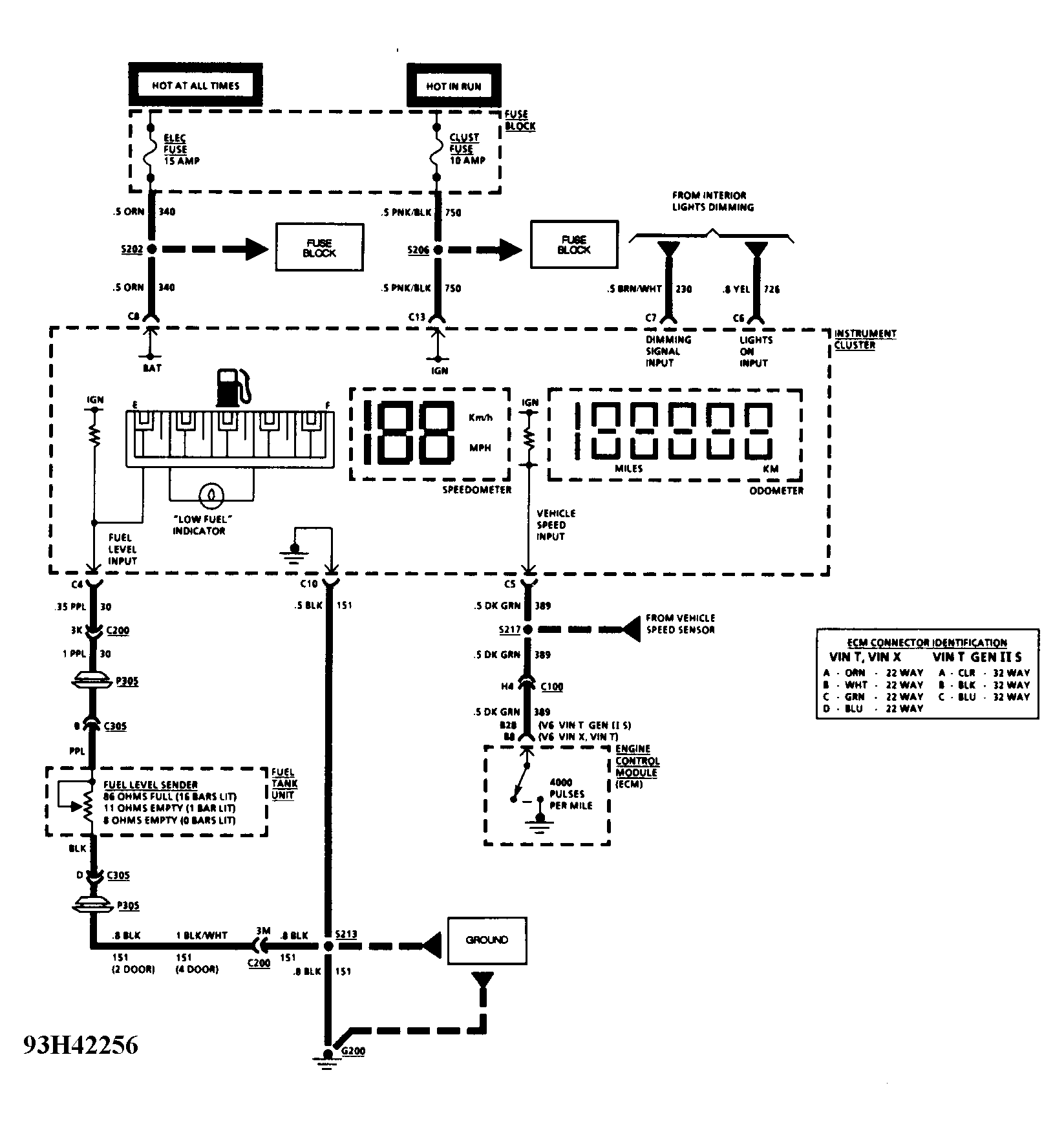

Fig 3: Electronic Instrument Panel Wiring Diagram (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

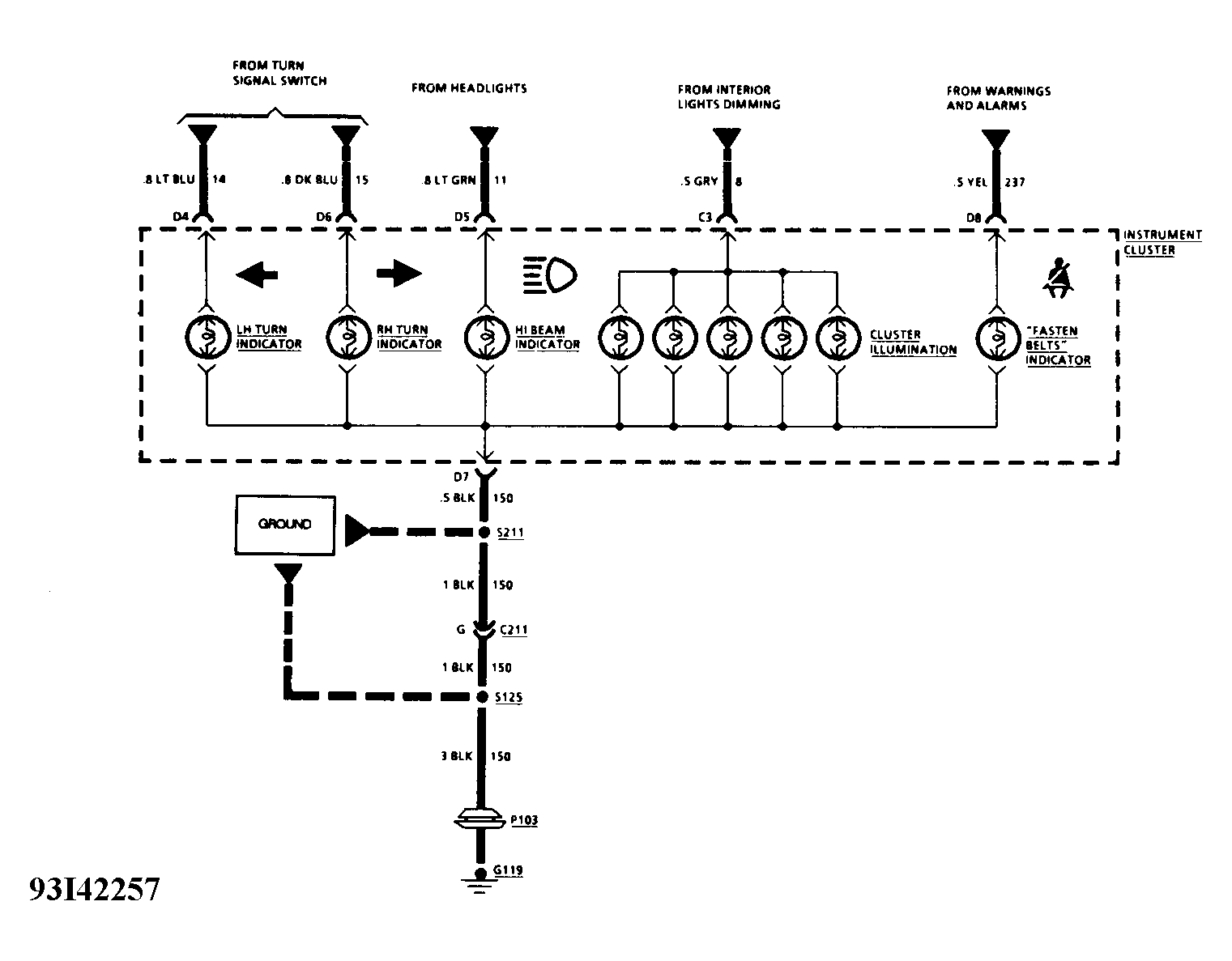

Fig 4: Electronic Instrument Panel Wiring Diagram (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
