Testing Procedures
- Measure all voltages to ground with ignition switch in RUN position.
- Measure all resistances to ground with ignition switch in OFF position and negative battery cable disconnected.
- Check all ground terminals with a self-powered test light before making voltage or resistance measurements.
- If correct voltage or resistance is found at terminal and function which uses terminal does not operate, check appropriate incandescent bulbs. If bulbs are okay, replace instrument cluster.

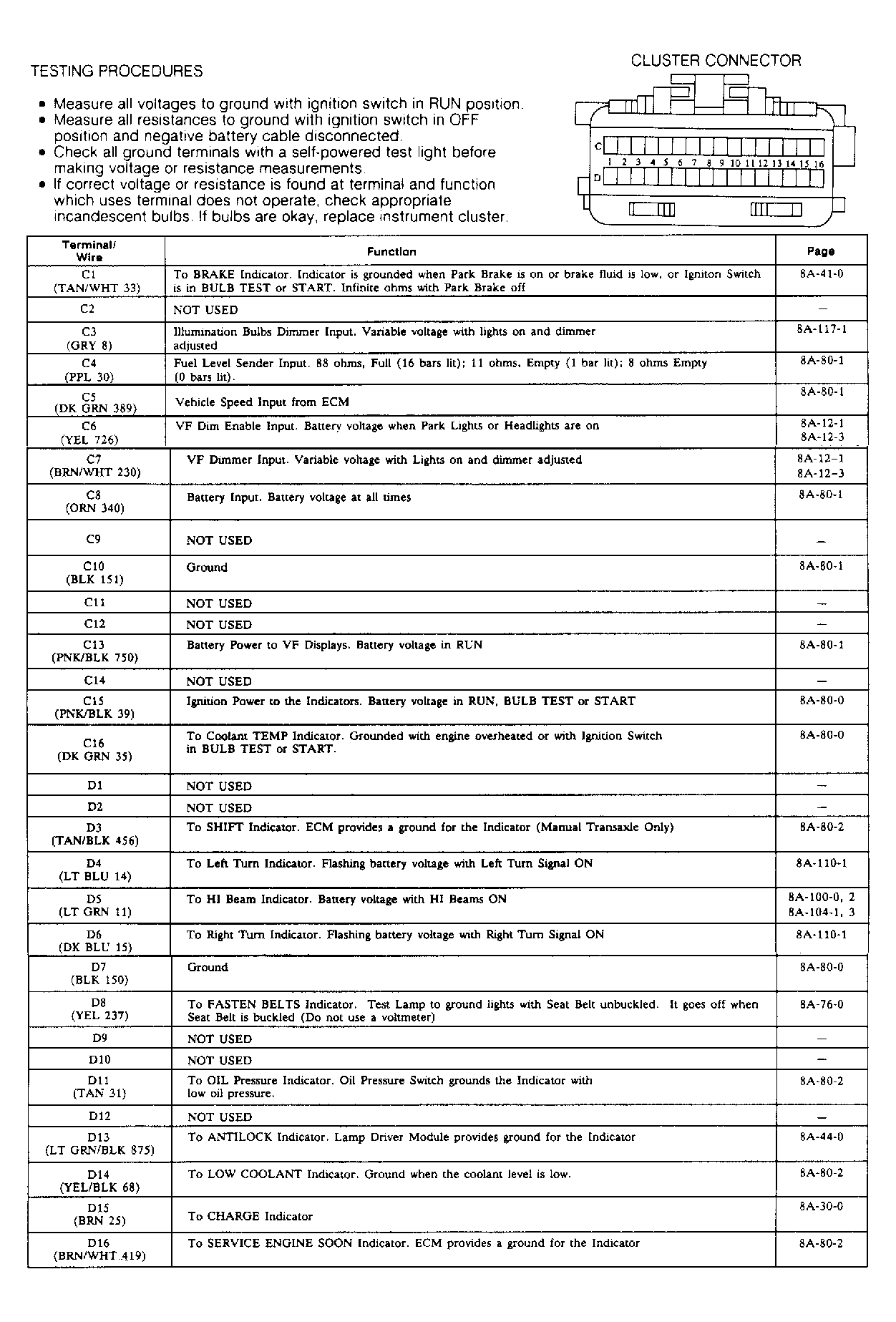

INDICATORS & GAUGES PINOUT TEST
| Cavity |
Wire Color |
Circuit Number |
Description |
| C1 |
TAN/WHT |
33 |
To BRAKE Indicator. Indicator is grounded when Park Brake is on or brake fluid is low, or Ignition Switch is in BULB TEST orSTART. Infinite ohms with Park Brake off |
| C3 |
GRY |
8 |
Illumination Bulbs Dimmer Input. Variable voltage with lights on and dimmer adjusted |
| C4 |
PPL |
30 |
Fuel Level Sender Input. 88 ohms, Full (16bars lit); 11 ohms, Empty (1 bar lit); 8 ohms Empty (0 bars lit) |
| C5 |
DK GRN |
389 |
Vehicle Speed Input from ECM |
| C6 |
YEL |
726 |
VF Dim Enable Input. Battery voltage when Park Lights or Headlights are on |
| C7 |
BRN/WHT |
230 |
VF Dimmer Input. Variable voltage with Lights on and dimmer adjusted |
| C8 |
ORN |
340 |
Battery Input. Battery voltage at all times |
| C10 |
BLK |
151 |
Ground |
| C13 |
PNK/BLK |
750 |
Battery Power to VF Displays. Battery voltage in RUN |
| C15 |
PNK/BLK |
39 |
Ignition Power to the Indicators. Battery voltage in RUN, BULB TEST or START |
| C16 |
DK GRN |
35 |
To Coolant TEMP Indicator. Grounded with engine overheated or with Ignition Switch in BULB TEST or START |
| D3 |
TAN/BLK |
456 |
To SHIFT Indicator. ECM provides a ground for the Indicator (Manual Transaxle Only) |
| D4 |
LT BLU |
14 |
To Left Turn Indicator. Flashing battery voltage with Left Turn Signal ON |
| D5 |
LT GRN |
11 |
To HI Beam Indicator. Battery voltage withHI Beams ON |
| D6 |
DK BLU |
15 |
To Right Turn Indicator. Flashing battery voltage with Right Turn Signal ON |
| D7 |
BLK |
150 |
Ground |
| D8 |
YEL |
237 |
To FASTEN BELTS Indicator. Test Lamp to ground lights with Seat Belt unbuckled. Itgoes off when Seat Belt is buckled (Do notuse a voltmeter) |
| D11 |
TAN |
31 |
To OIL Pressure Indicator. Oil Pressure Switch grounds the Indicator with low oil pressure |
| D13 |
LT GRN/BLK |
875 |
To ANTILOCK Indicator. Lamp Driver Module provides ground for the Indicator |
| D14 |
YEL/BLK |
68 |
To LOW COOLANT Indicator. Ground when the coolant level is low |
| D15 |
BRN |
25 |
To CHARGE Indicator |
| D16 |
BRN/WHT |
419 |
To SERVICE ENGINE SOON Indicator. ECM provides a ground for the Indicator |
Courtesy of GENERAL MOTORS CORP.
