Oldsmobile
>>
1993
>>
Cutlass Supreme Base, 3.4 X
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panel - Analog
>>
Wiring Diagrams
Wiring Diagrams

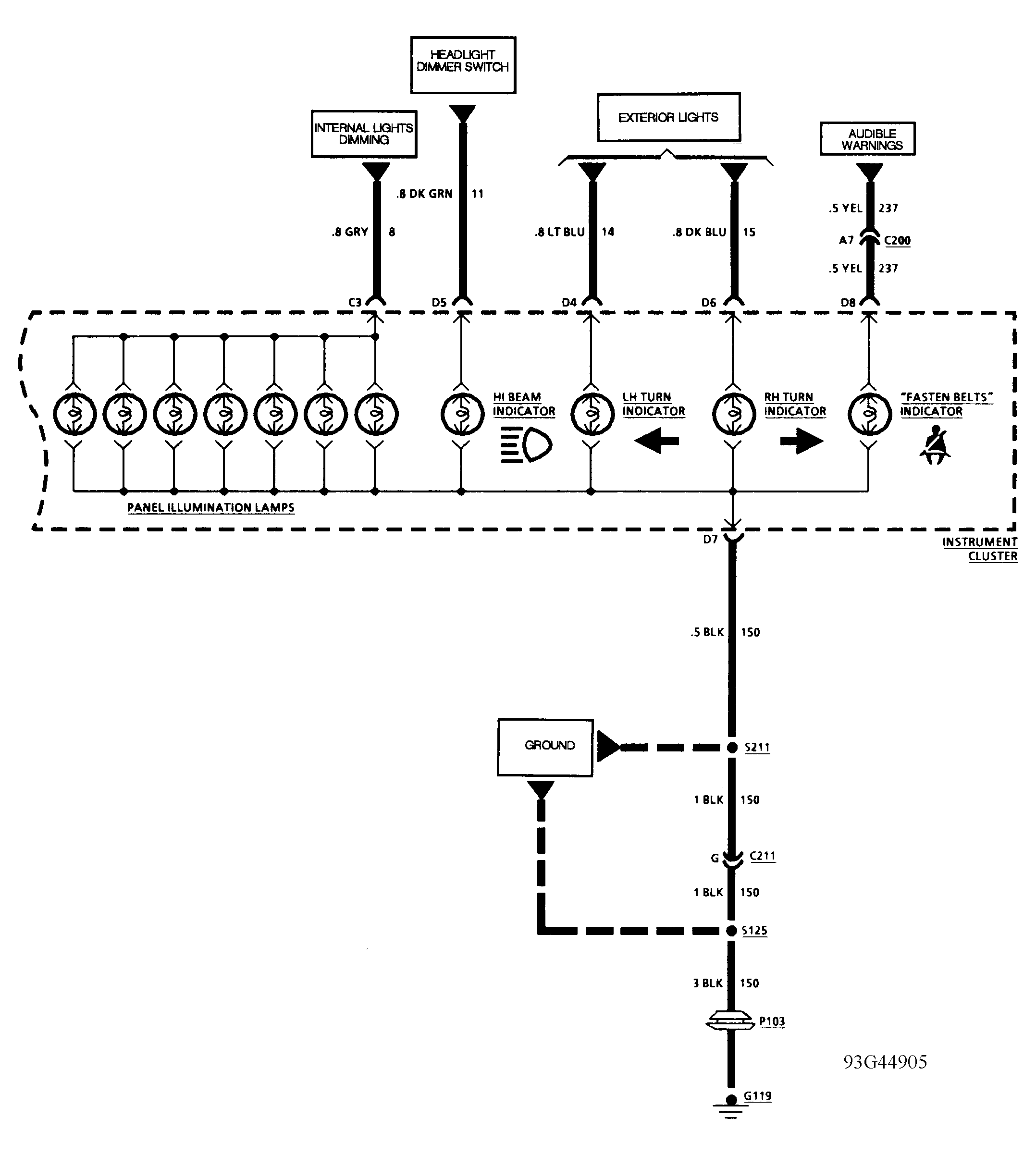

Fig 1: Instrument Panel Wiring Diagram (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

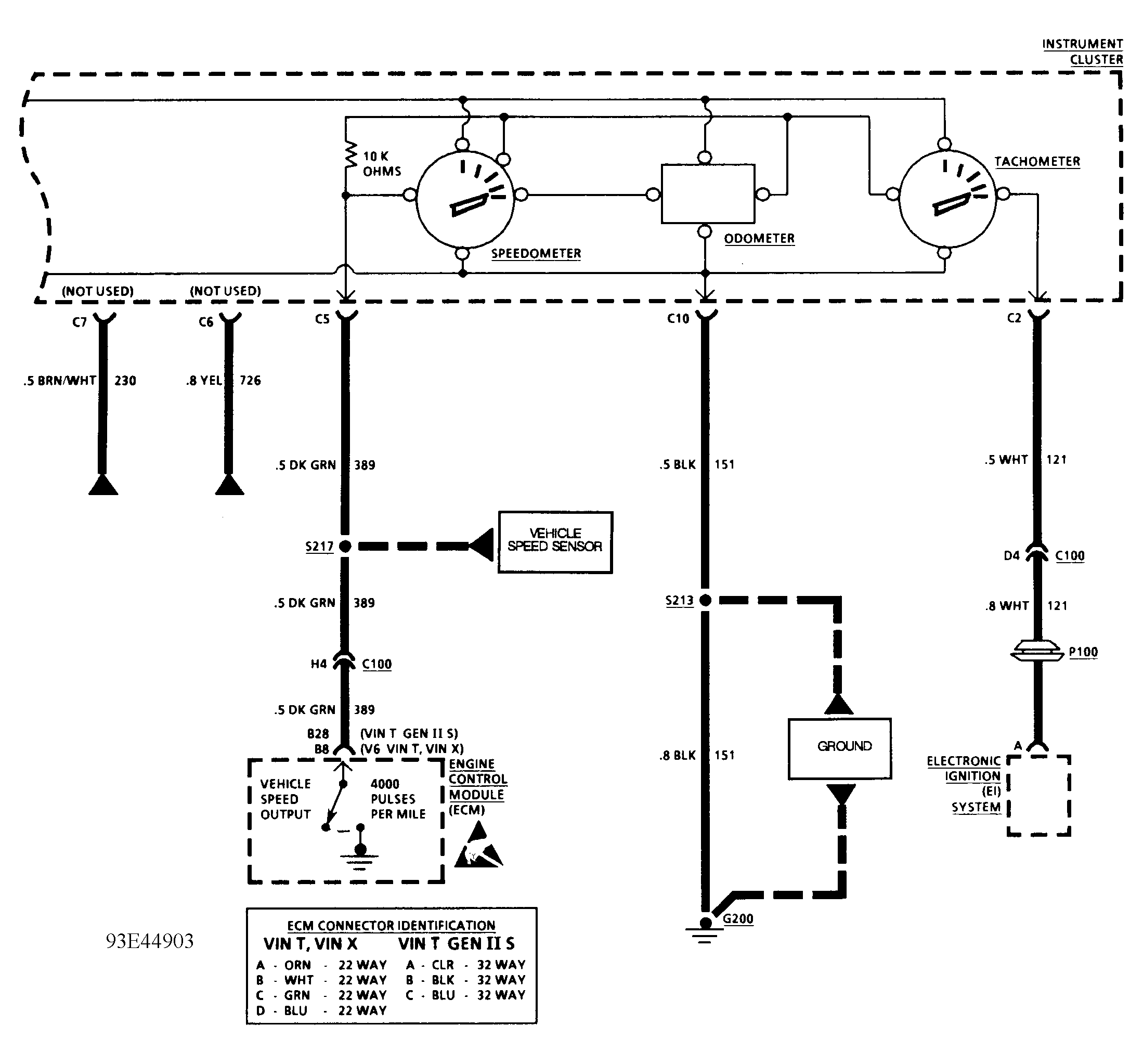

Fig 2: Instrument Panel Wiring Diagram (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

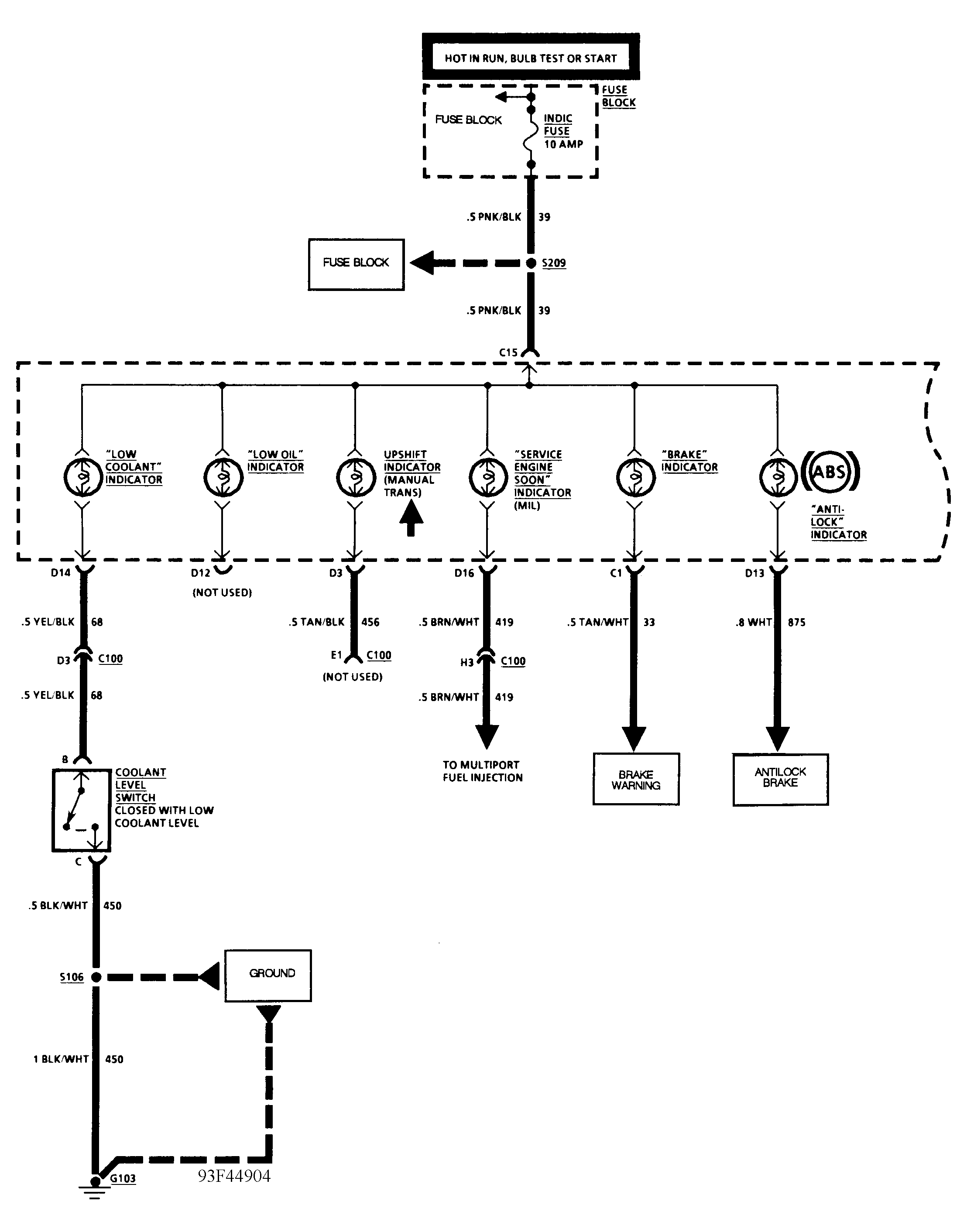

Fig 3: Instrument Panel Wiring Diagram (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

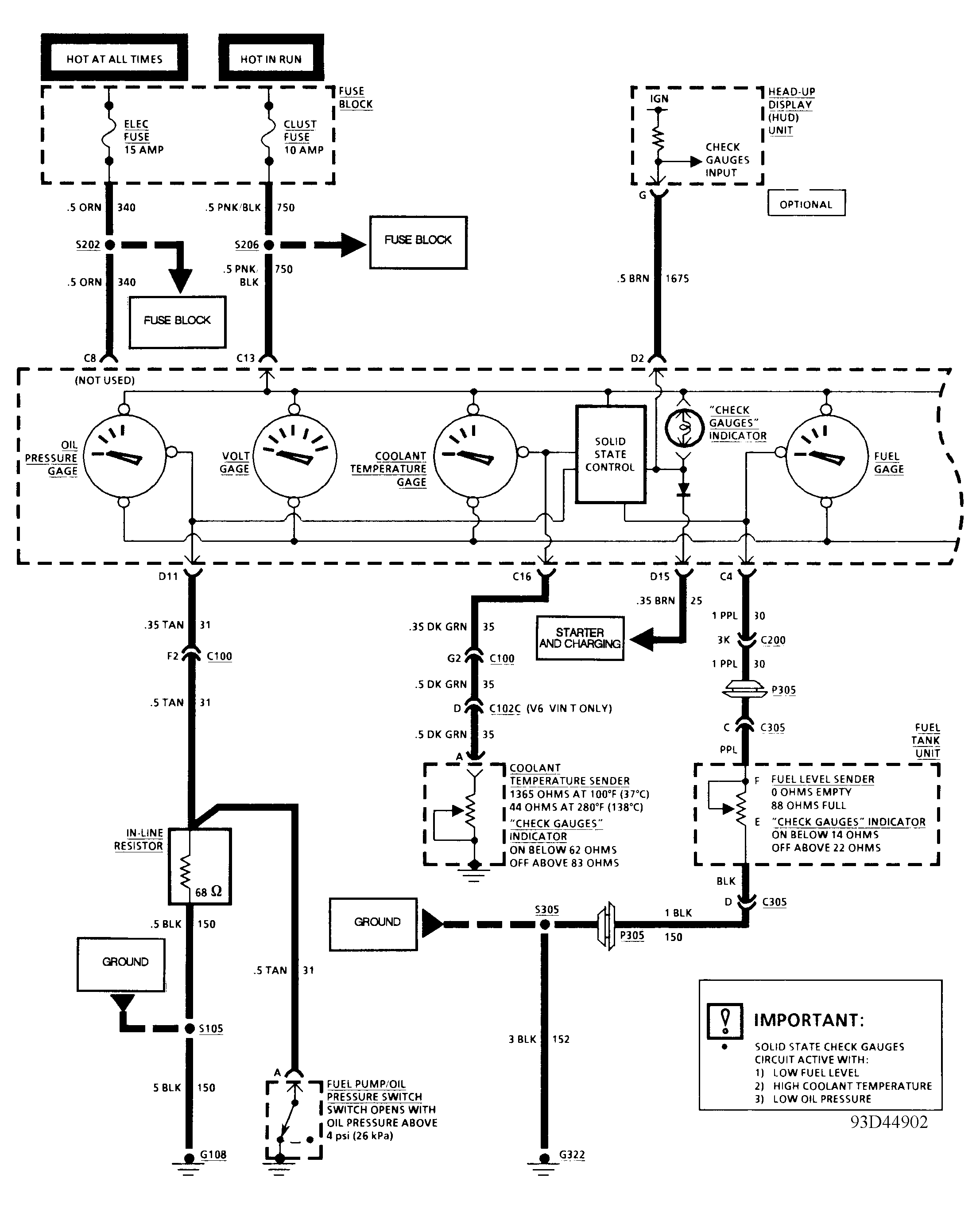

Fig 4: Instrument Panel Wiring Diagram (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
