Instrument Cluster

Turn ignition off. Remove left sound insulator from below instrument panel. Remove outboard screw (above parking brake pedal) from knee bolster (below steering column).
Remove knee bolster by grasping top and bottom of knee bolster and pulling rearward to disengage clips (DO NOT pull downward). Remove instrument cluster trim plate. Remove instrument cluster screws. Remove instrument cluster by pulling outward, disengaging electrical connector. To install, reverse removal procedure.

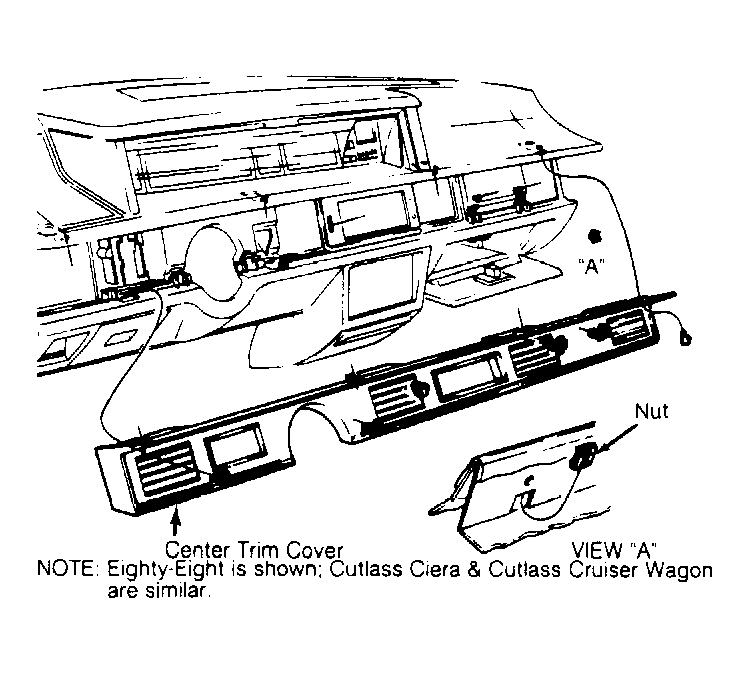

Fig 1: Removing Instrument Panel Center Trim Cover

Courtesy of GENERAL MOTORS CORP.
