Instrument Cluster

  1. Disconnect negative battery cable. Remove front retaining screws and nuts attaching left side sound insulator. Remove courtesy light from panel and sound insulator from vehicle. See Fig 1 .
  2. Remove knee bolster retaining screws. Remove knee bolster. See Fig 2 . Remove instrument cluster trim plate retaining screws and trim plate. See Fig 3 .
  3. Remove screws retaining cluster to instrument panel. See Fig 4 . Pull cluster out, and disconnect electrical connector. To install, reverse removal procedure.
Fig 1: Removing Sound Insulator
G90B13731Courtesy of GENERAL MOTORS CORP.

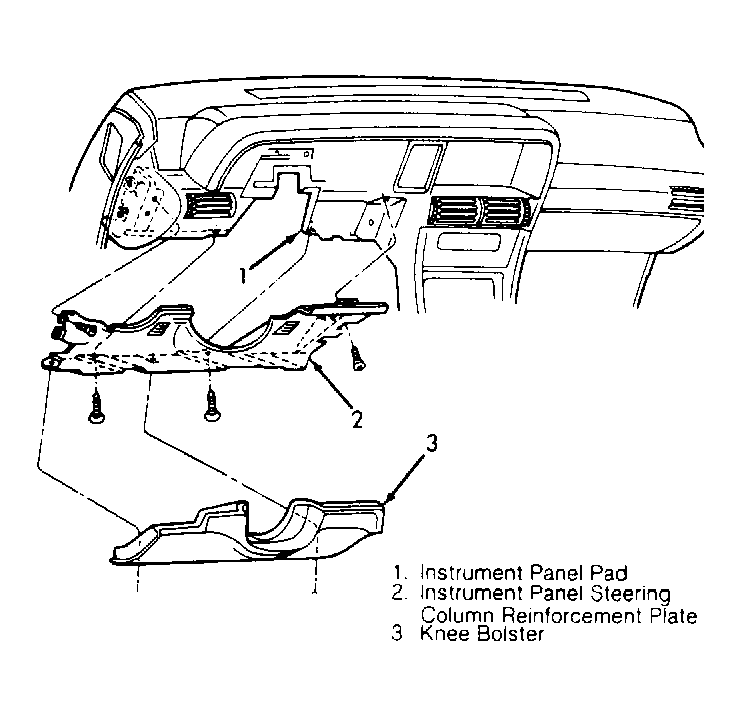

Fig 2: Removing Knee Bolster
G90D13733Courtesy of GENERAL MOTORS CORP.
Fig 3: Removing Instrument Panel Trim Plate
G90E13734Courtesy of GENERAL MOTORS CORP.
Fig 4: Removing Instrument Cluster
G90F13735Courtesy of GENERAL MOTORS CORP.
