Saginaw Rack & Pinion Manual Steering Gear

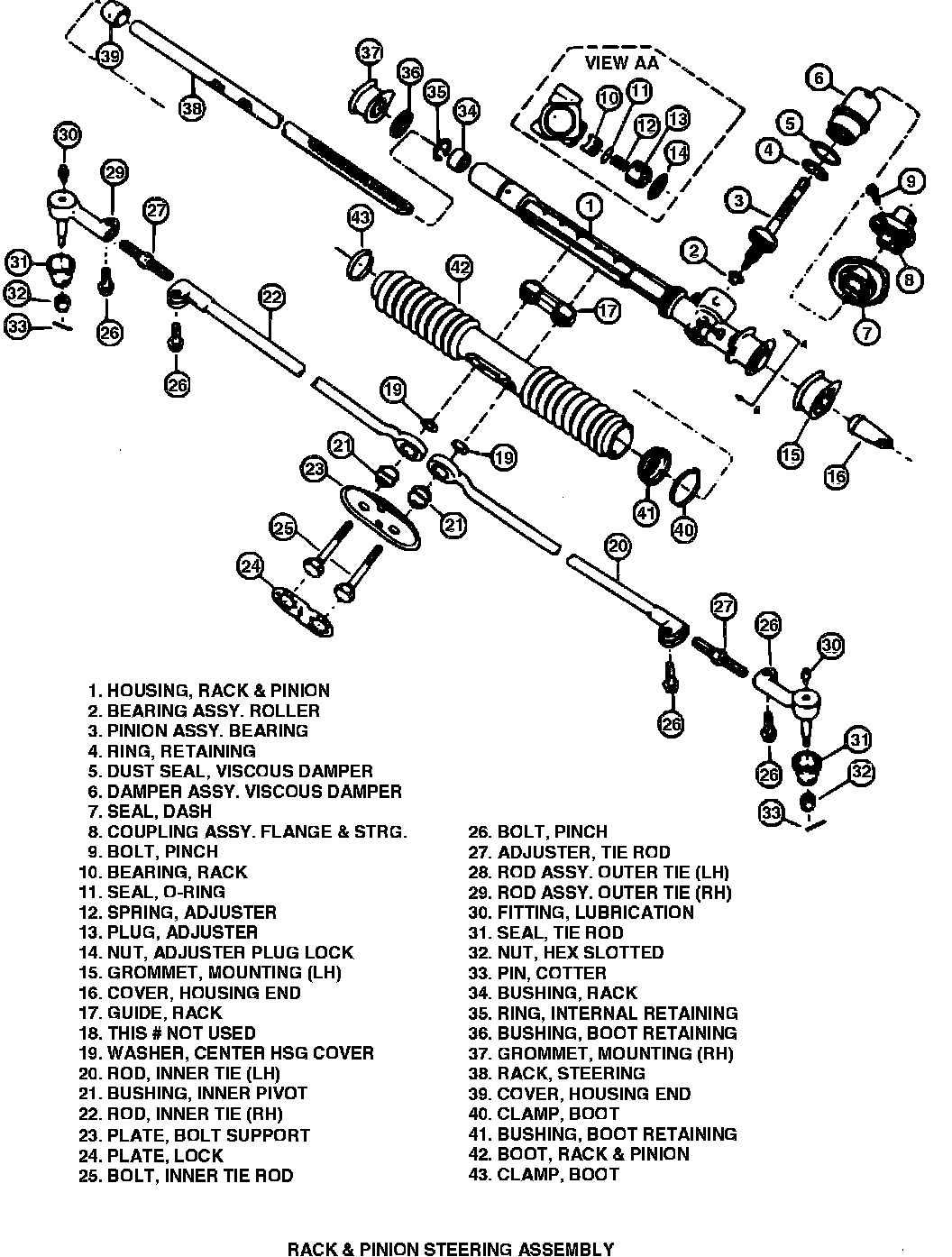

Fig. 1 Exploded View Of Saginaw Rack & Pinion Steering Gear.:

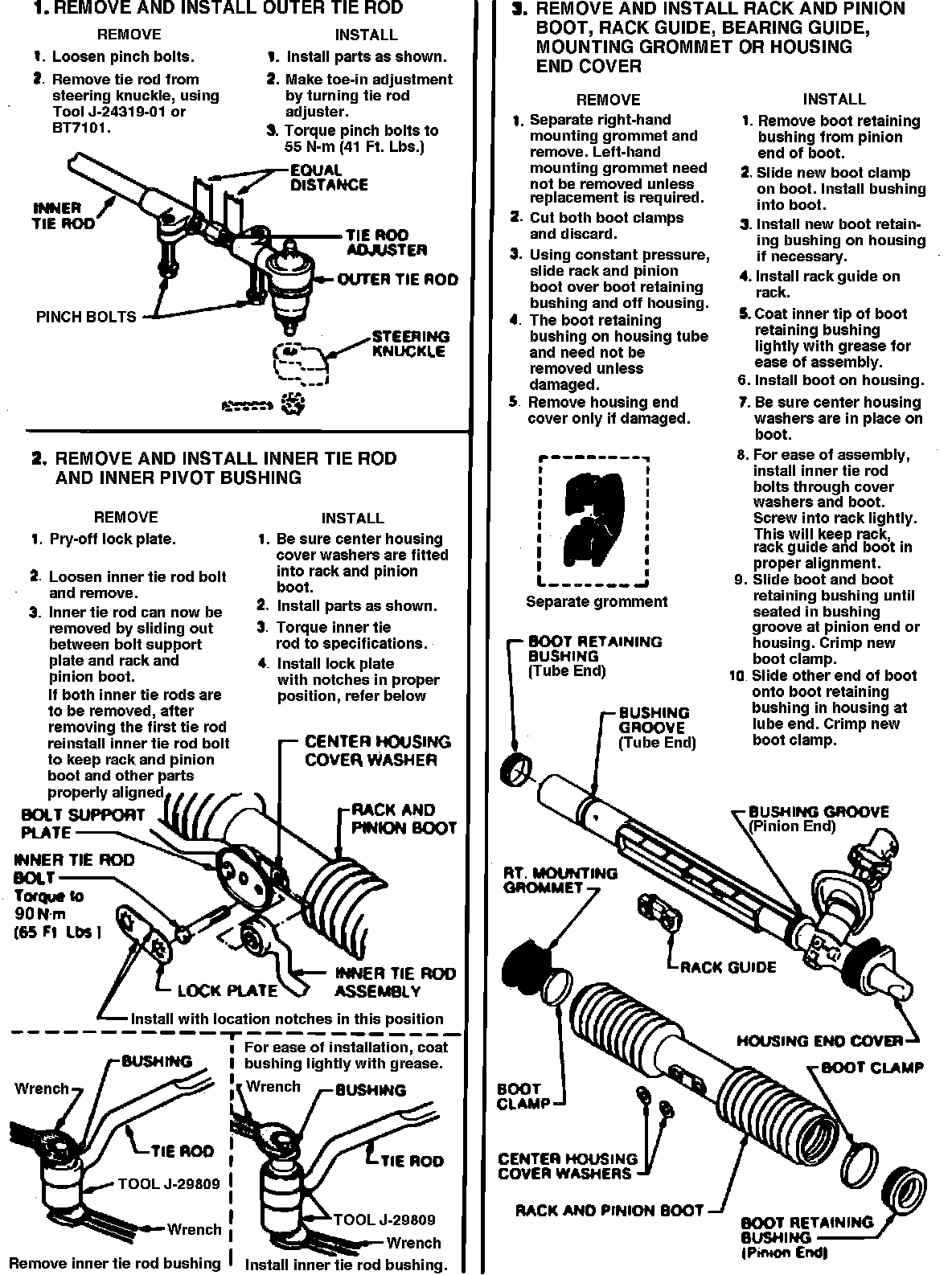

Fig. 2 Saginaw Rack & Pinion Steering Gear Service Procedures. (Part 1 Of 3):

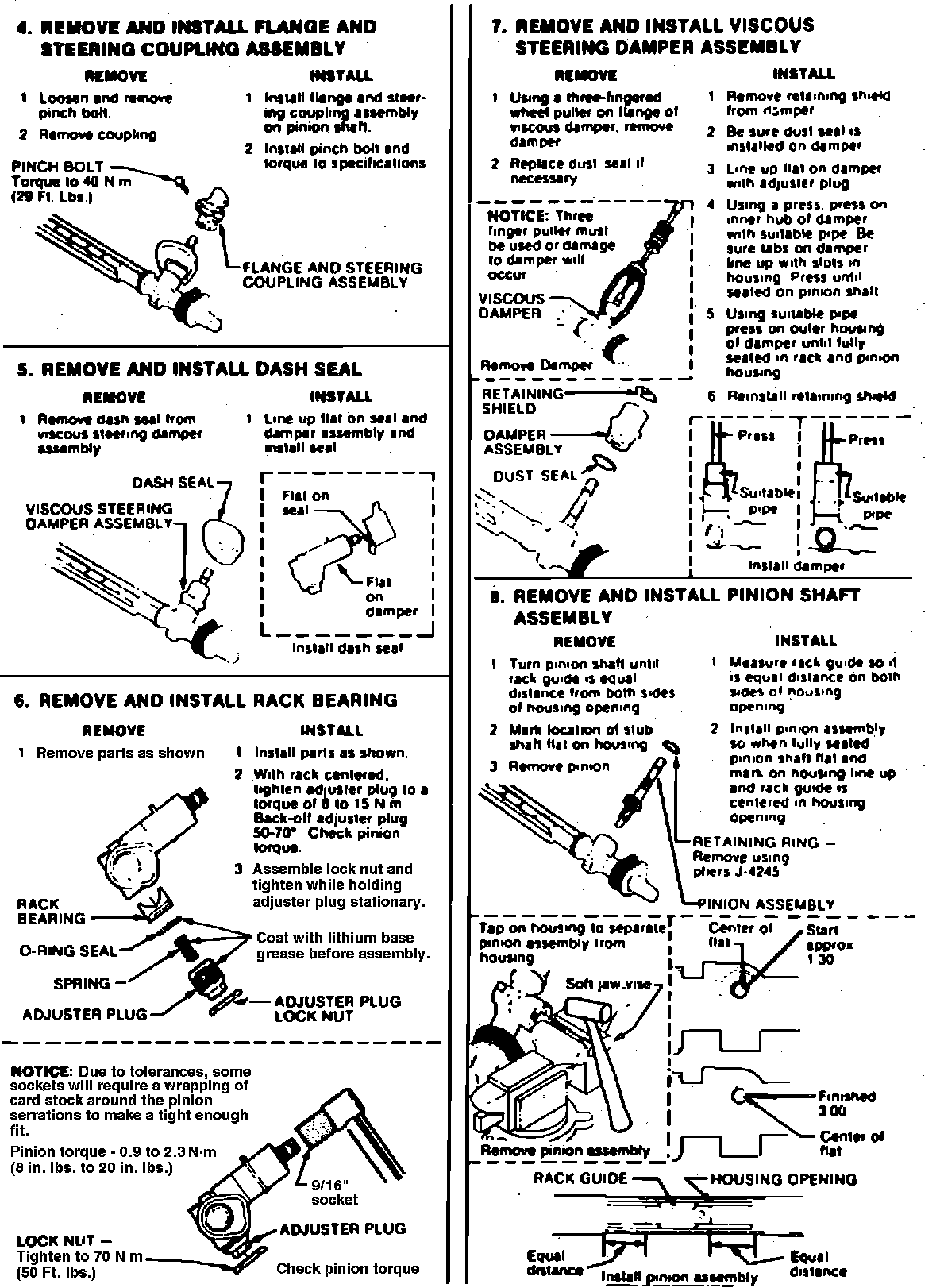

Fig. 2 Saginaw Rack & Pinion Steering Gear Service Procedures. (Part 2 Of 3):

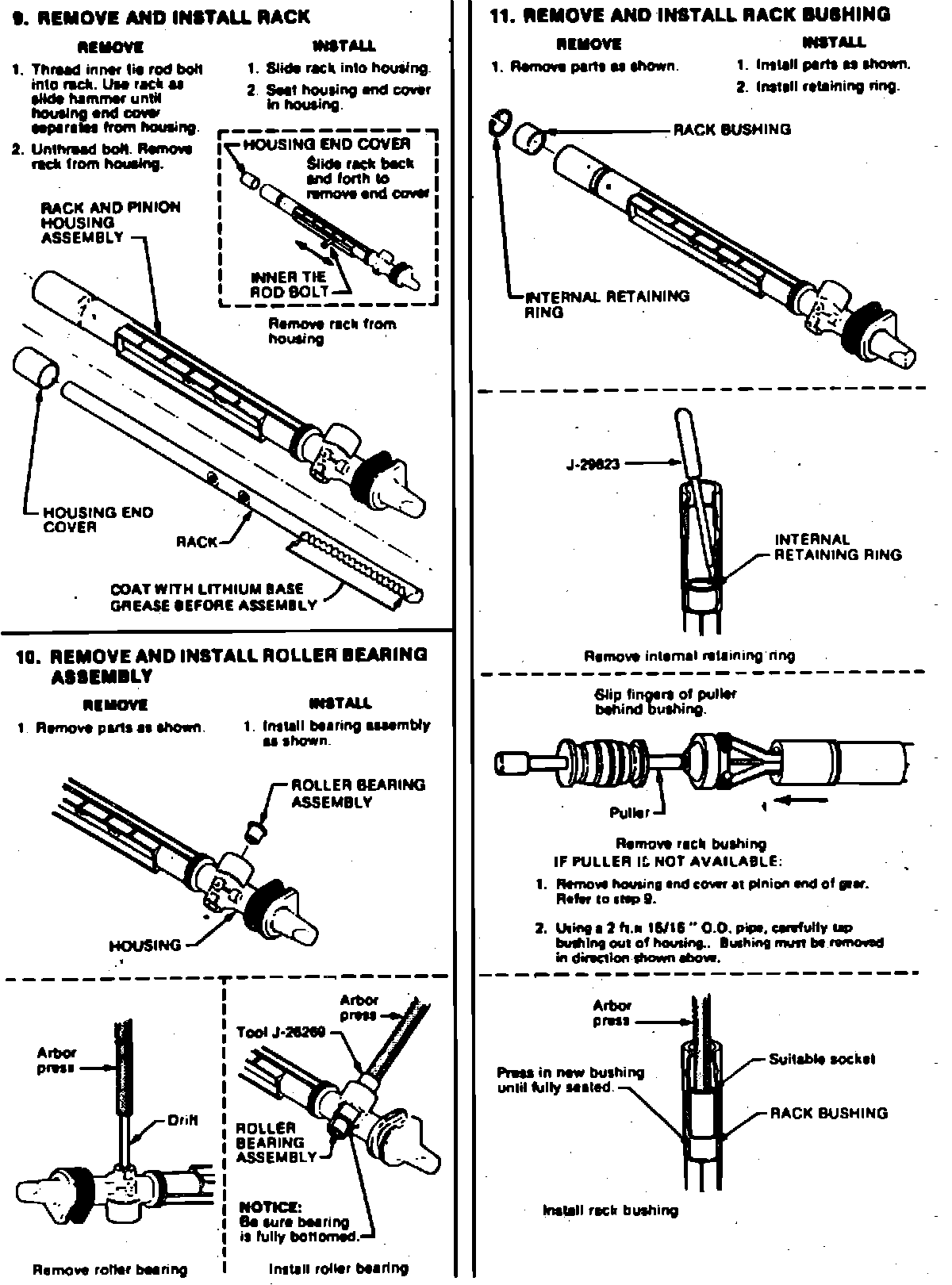

Fig. 2 Saginaw Rack & Pinion Steering Gear Service Procedures. (Part 3 Of 3):

Refer to Figs. 1 and 2 for service procedures on this Saginaw rack and pinion steering gear.
Refer to the rear of this section for torque specifications.
