Front Wheel Speed Sensor

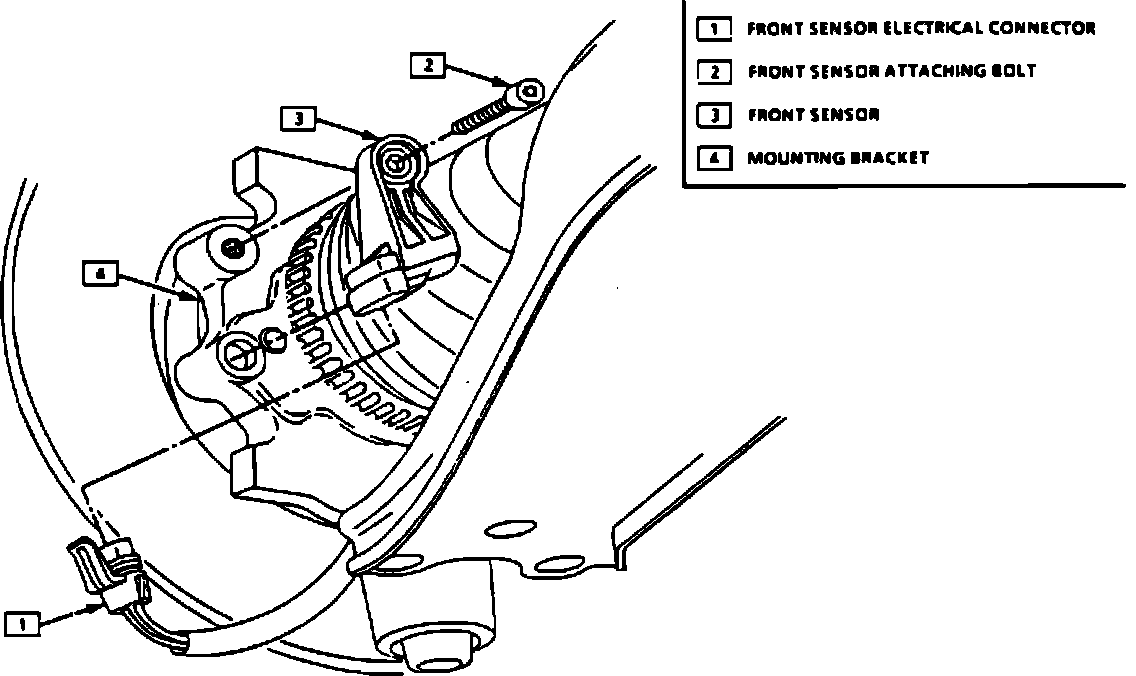

Fig. 69 Front Wheel Speed Sensor Removal:

1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. Disconnect wheel sensor electrical connector, Fig. 69.
4. Remove sensor attaching bolt, then the sensor from the mounting bracket.
5. Reverse procedure to install, ensure sensor is properly aligned and lays flat against bracket bosses, torque attaching bolt to 9 ft. lbs.
