Power Door Lock Switch: Service and Repair

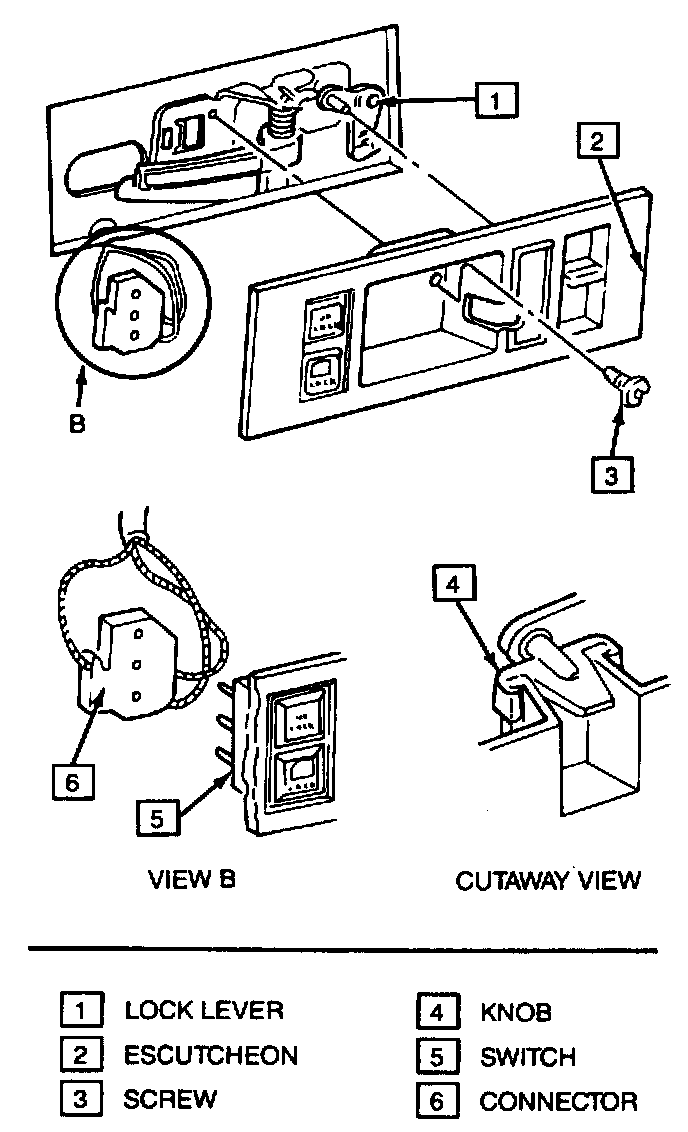

Electric Door Lock Switch:

Remove or Disconnect

1. Screw (3).
2. Escutcheon (2).
3. Connector (6).
4. Switch (5).

Install or Connect

1. Switch (5) to escutcheon (2).
2. Connector (6)
3. Escutcheon (2). Align component lock knob (4) to lock assembly (1) and apply sufficient pressure to secure.
4. Screw (3).
