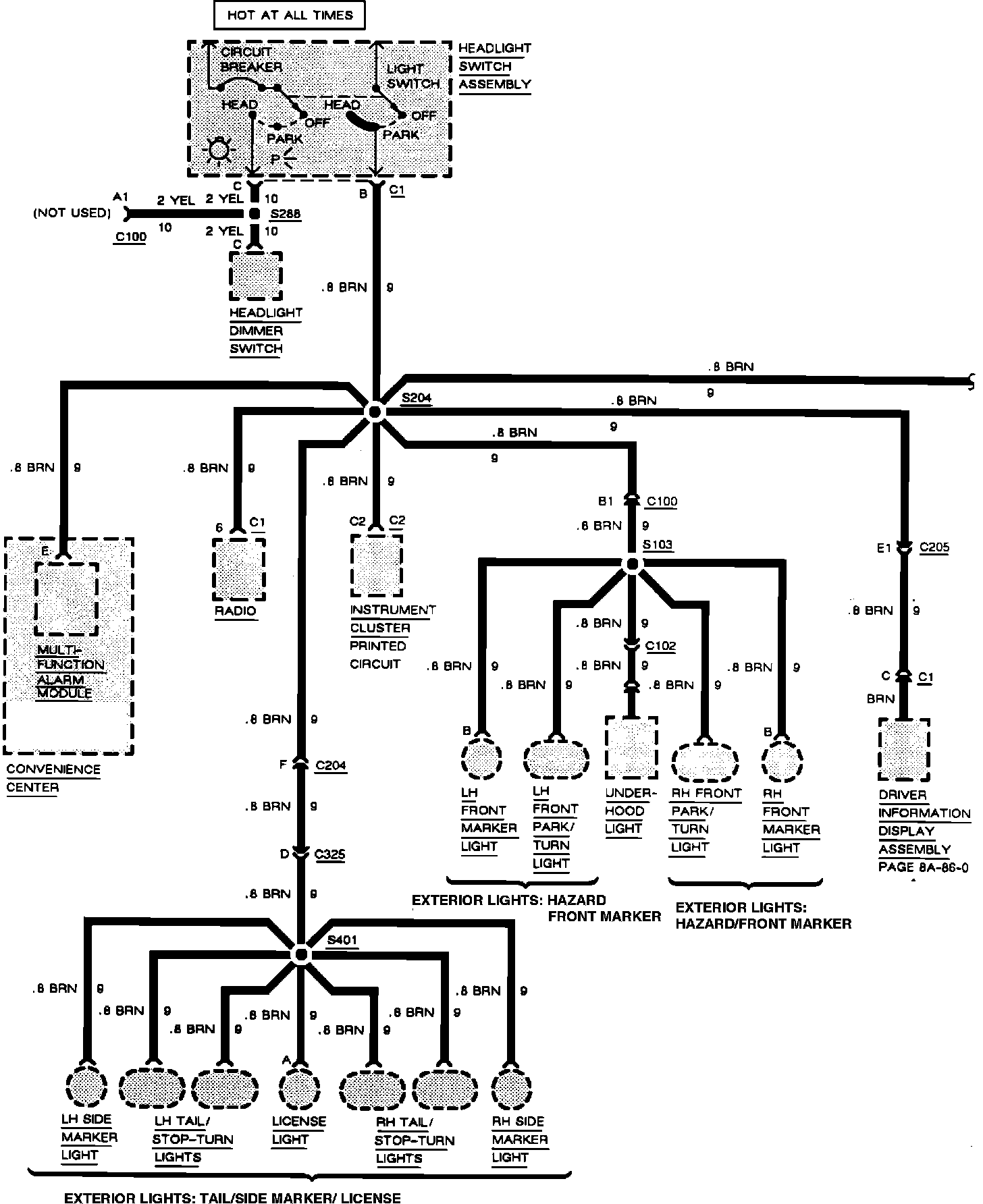

Home >> Oldsmobile >> 1991 >> Calais L4-151 2.5L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Diagrams >> Electrical Diagrams >> Part 1 of 2
