Home >> Oldsmobile >> 1991 >> Calais L4-151 2.5L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> With Daytime Running Lamps >> With Fog Lights

With Fog Lights

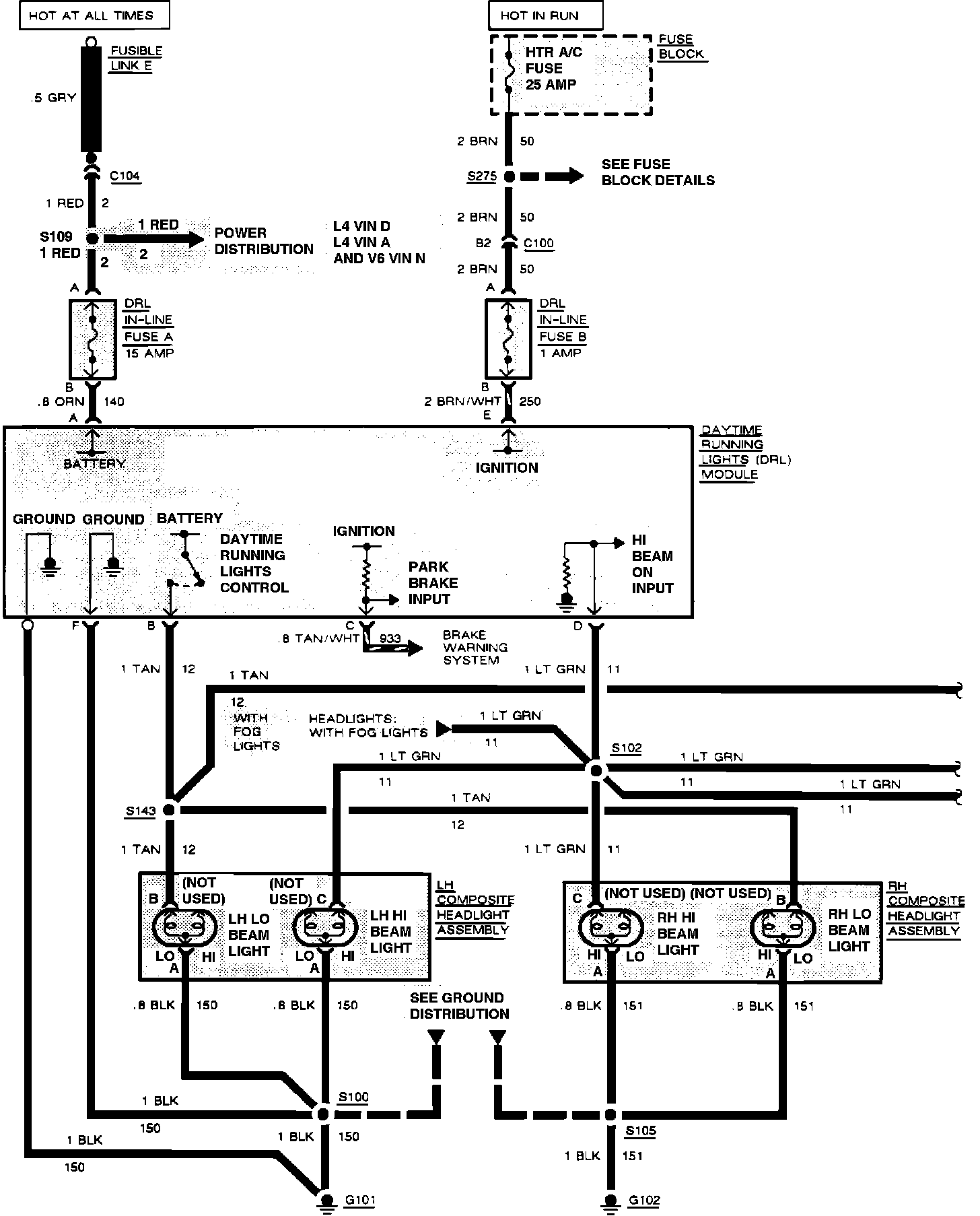

Headlamps, W/Daytime Running Lamps:

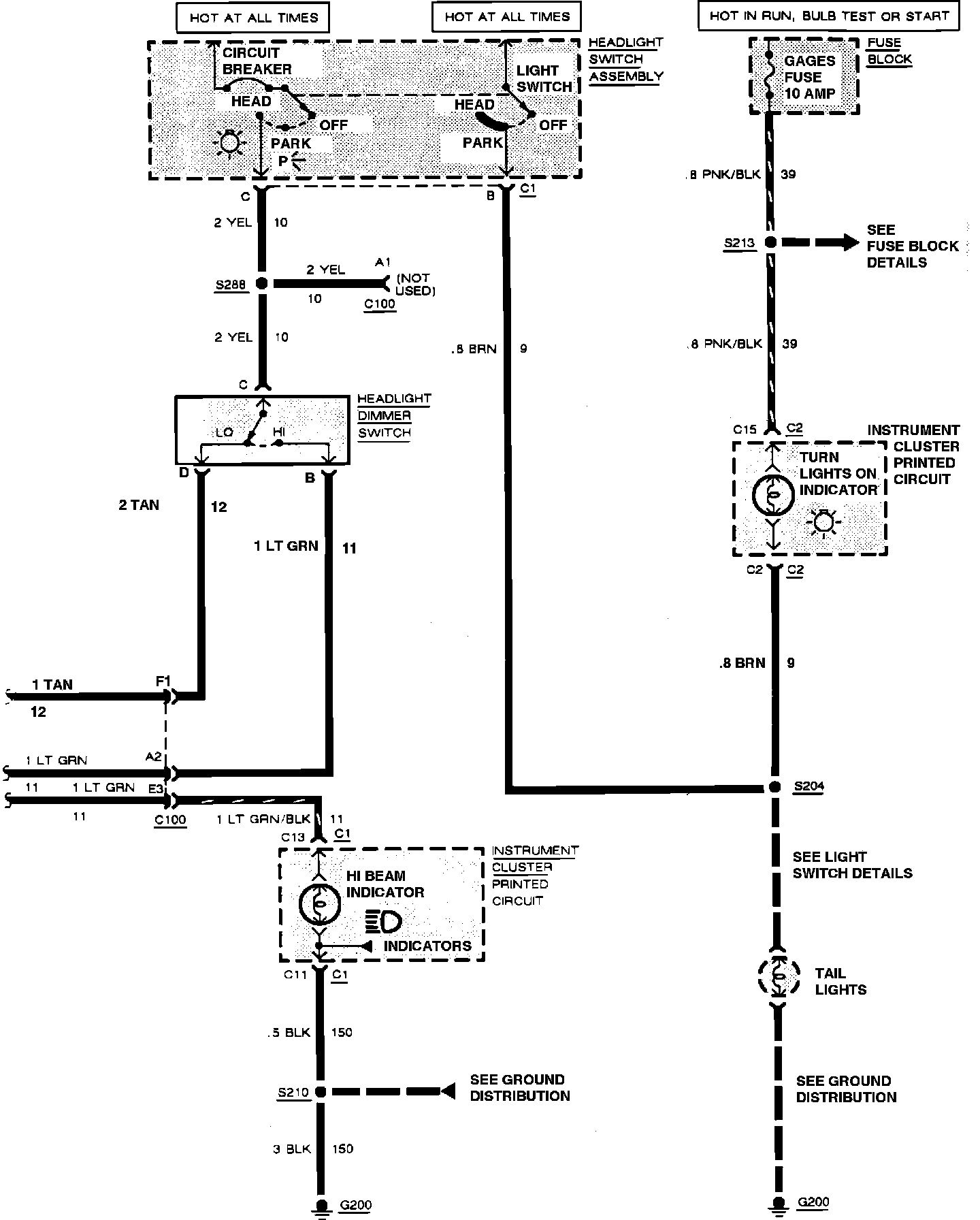

Headlamps, W/Daytime Running Lamps:
