Home >> Oldsmobile >> 1991 >> Calais L4-151 2.5L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> With Standard Cluster >> Part 4 of 4

Part 4 of 4

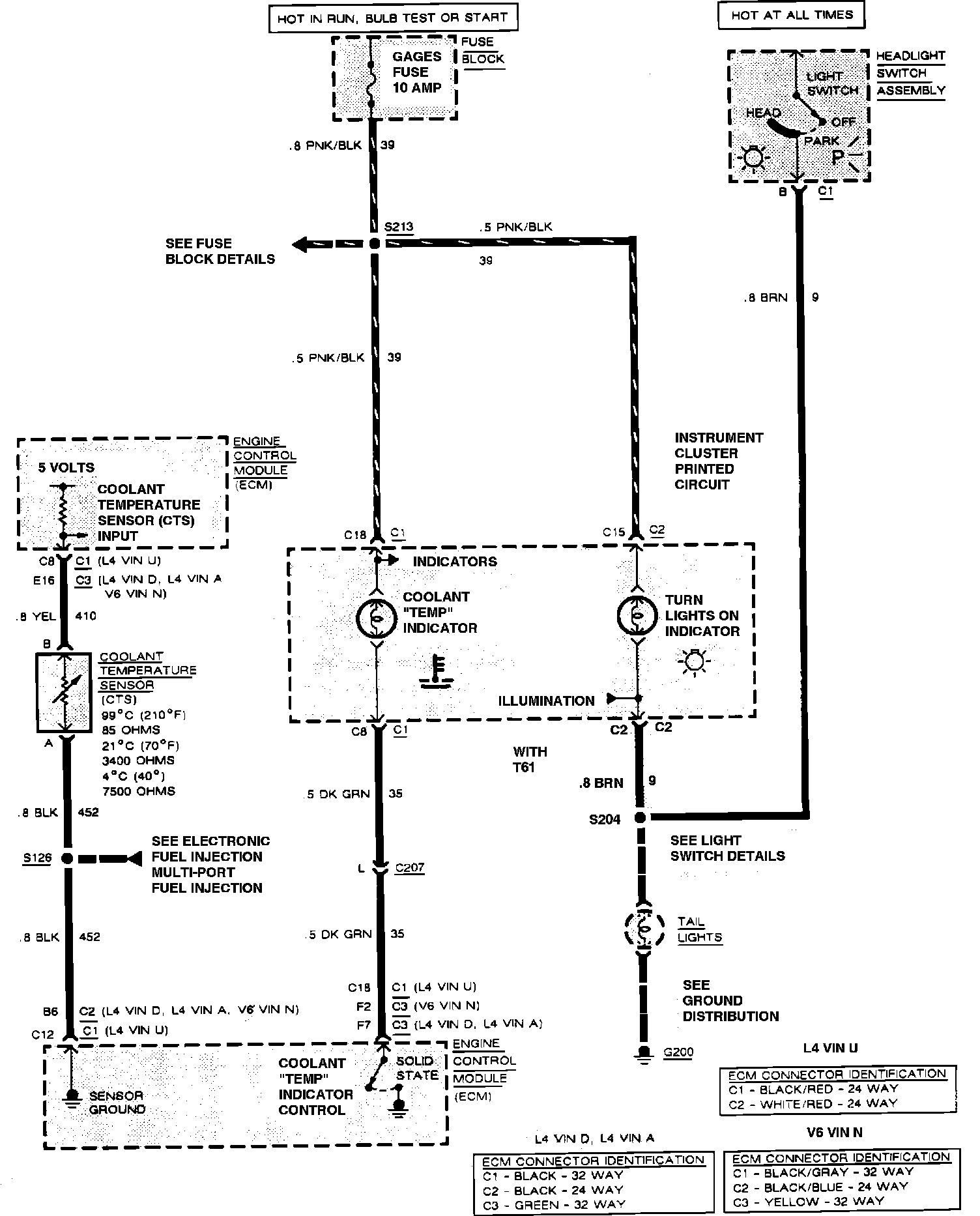

Instrument Panel, Standard Cluster, U23:
