Home >> Oldsmobile >> 1991 >> Calais L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Marker Lamp >> Front Marker & Park, Hazard, Stop & Turn Lamps

Front Marker & Park, Hazard, Stop & Turn Lamps

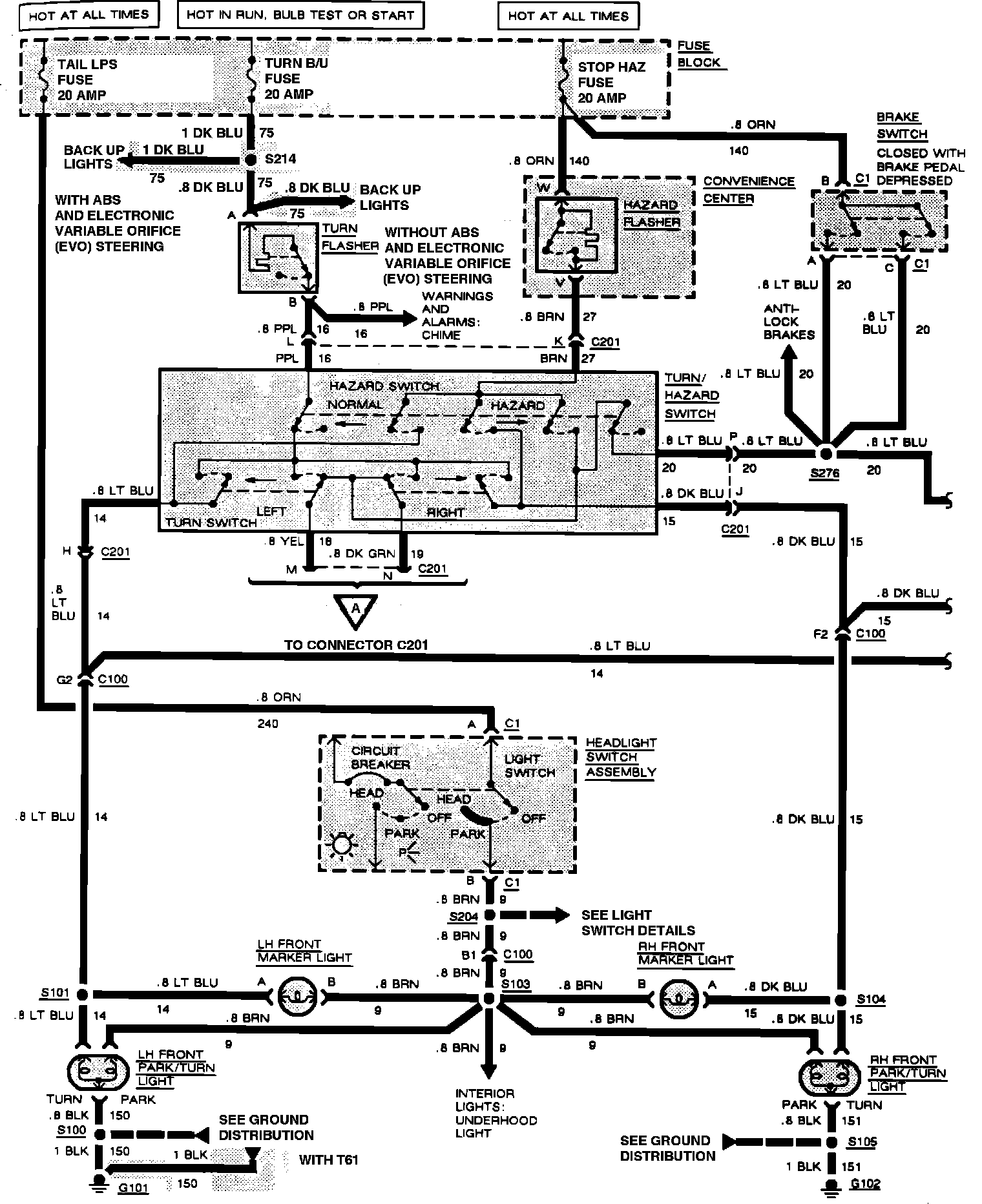

Exterior Lights (Hazard, Front Marker, Front Park, Turn & Stop):

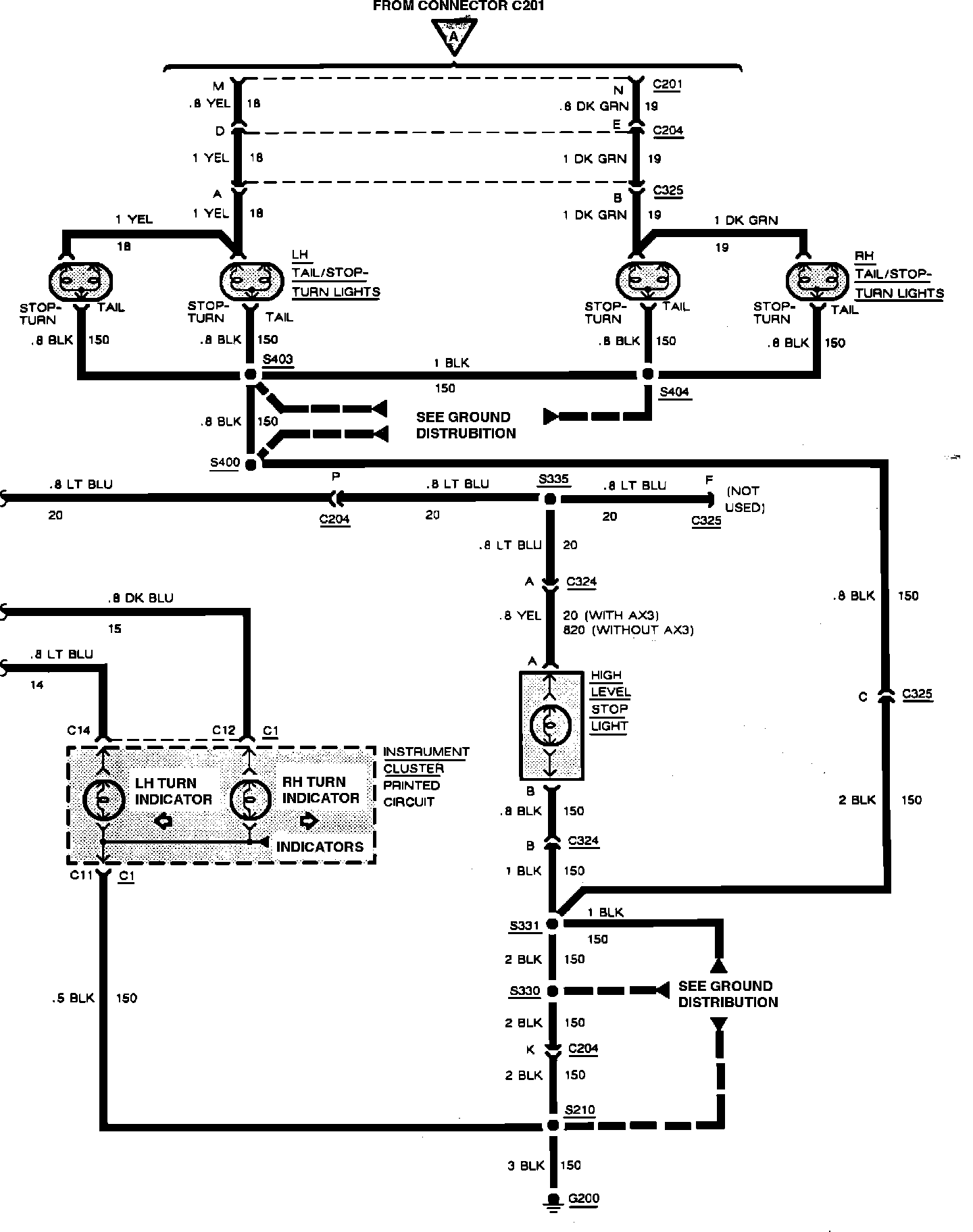

Exterior Lights (Hazard, Front Marker, Front Park, Turn & Stop):
