Lateral Runout

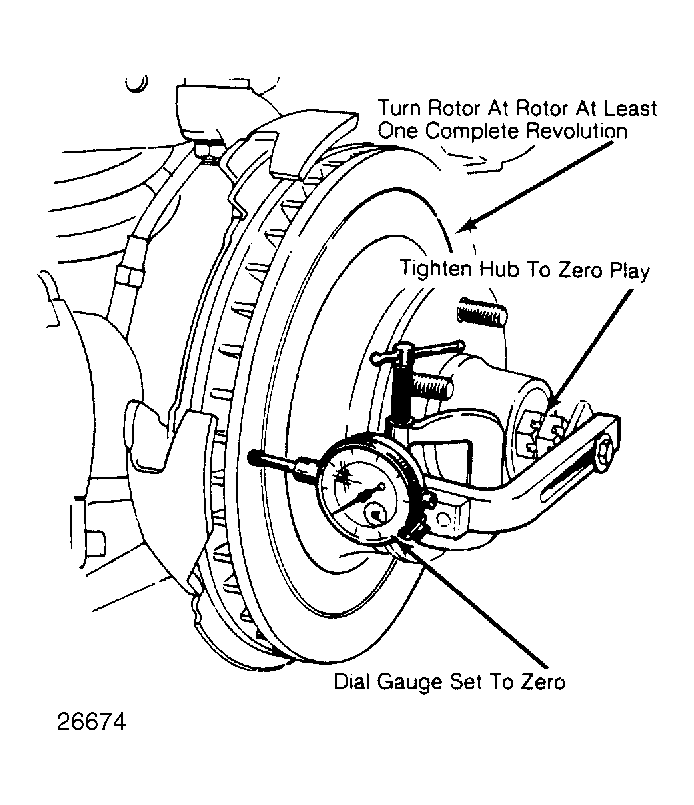

Adjust wheel bearings until all end play is eliminated. Attach a dial indicator to front suspension so pointer contacts face of rotor about 1 inch from edge. Set gauge to zero, then turn rotor through one complete revolution. See Fig 1. Check gauge reading with specifications for maximum runout.
