Removal (88 & 98)

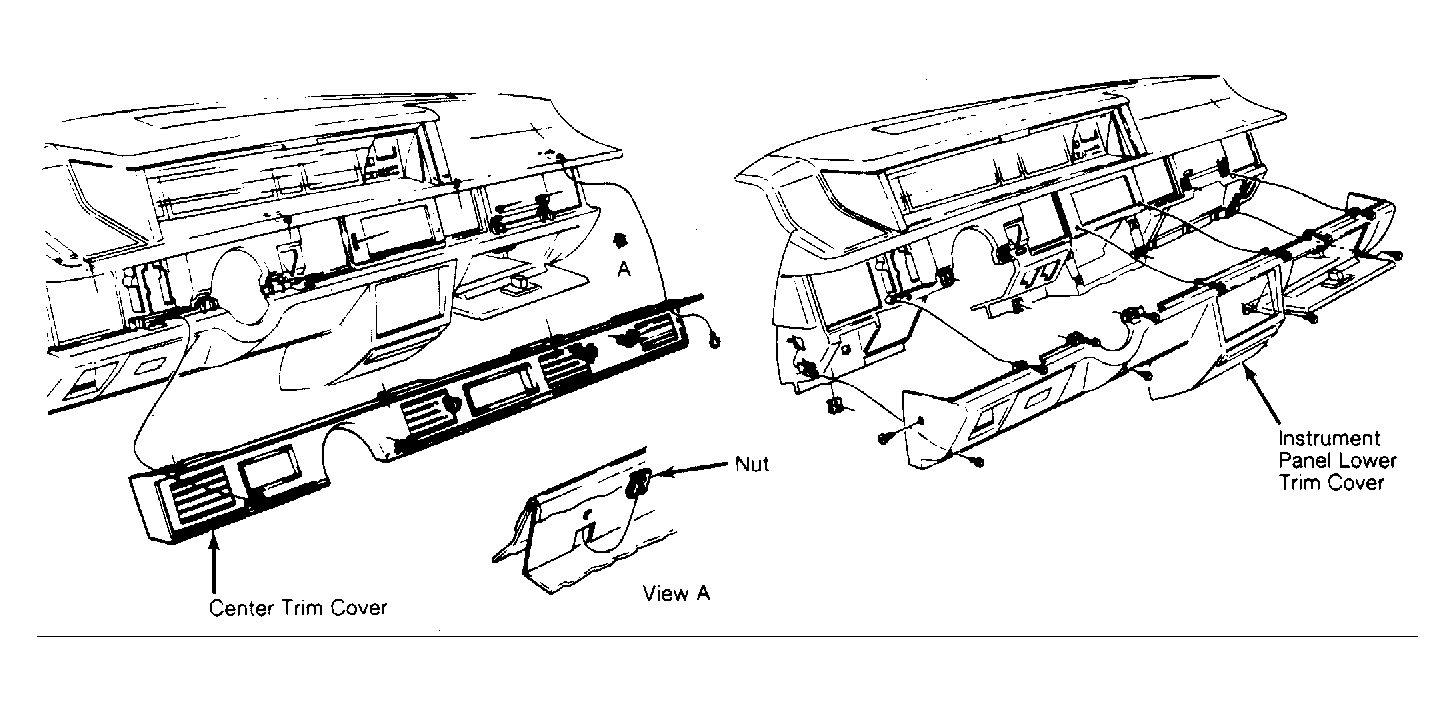

- Remove 4 center trim cover (steering column) mount screws. Move gear selector to "1" position (manual low). Carefully pull center trim cover rearward and from instrument panel. See Fig 1 .
- With center trim cover removed, detach 7 mount screws from top portion of lower trim cover. Detach 4 mount screws from lower portion and 2 mount screws (1 on each side) from lower trim cover.
- Pull lower instrument panel trim cover rearward enough to unplug ashtray light and cigar lighter connector. Carefully remove lower trim cover by pulling rearward and from instrument panel. See Fig 1 .
- Detach 3 gauge cluster trim cover mount screws. If equipped, disconnect shift indicator cable. Remove gauge cluster trim cover and cluster mounting assembly by pulling rearward and from instrument panel.
- Cluster mounting assembly may be removed from trim cover by detaching 5 mount screws from cluster. If equipped, Auto Calculator may be removed from cluster mounting by detaching 4 mount screws.
