Disc Calipers & Pads - Rear: Installation
- Install new piston check valve. Using silicone grease, install new bushings and sleeves. Place new inner shoe on piston with "D" shaped tab fitting into piston notch. If tab does not line up with notch, turn piston with a Spanner Wrench (J-7624). Install outer shoe and lining.

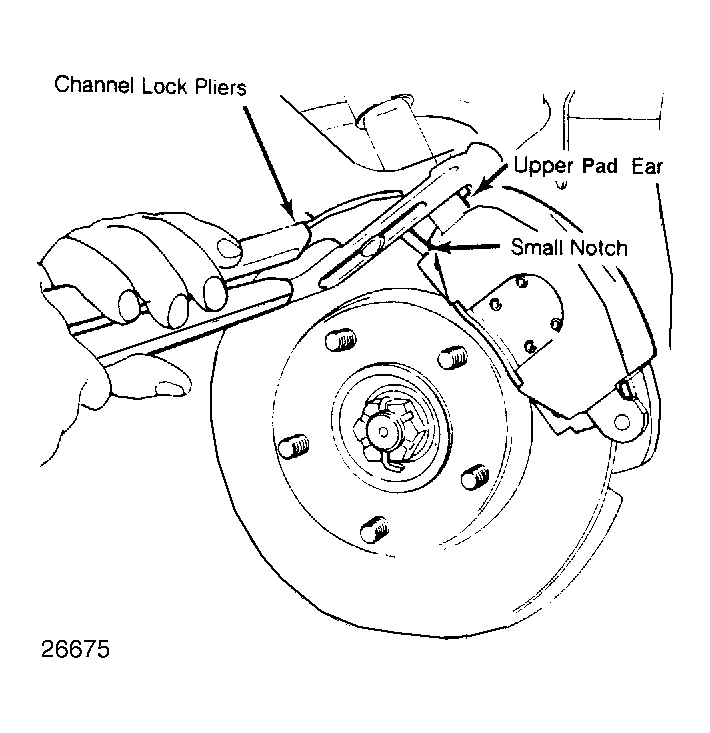

- Slide caliper over rotor and install mounting bolts under inner shoe ears. Using new washers, install brake line. Pump brake pedal to seat lining against caliper. Using channel lock pliers, clinch upper ears of outer shoe against caliper, making sure all ears are flat against caliper with no clearance.
- Rotate lever toward front of vehicle and tighten nut. Rotate lever back against caliper stop and install spring. Connect and adjust parking brake cable. Bleed brake system. Remove 2 lug nuts used to retain rotor and install wheel.
