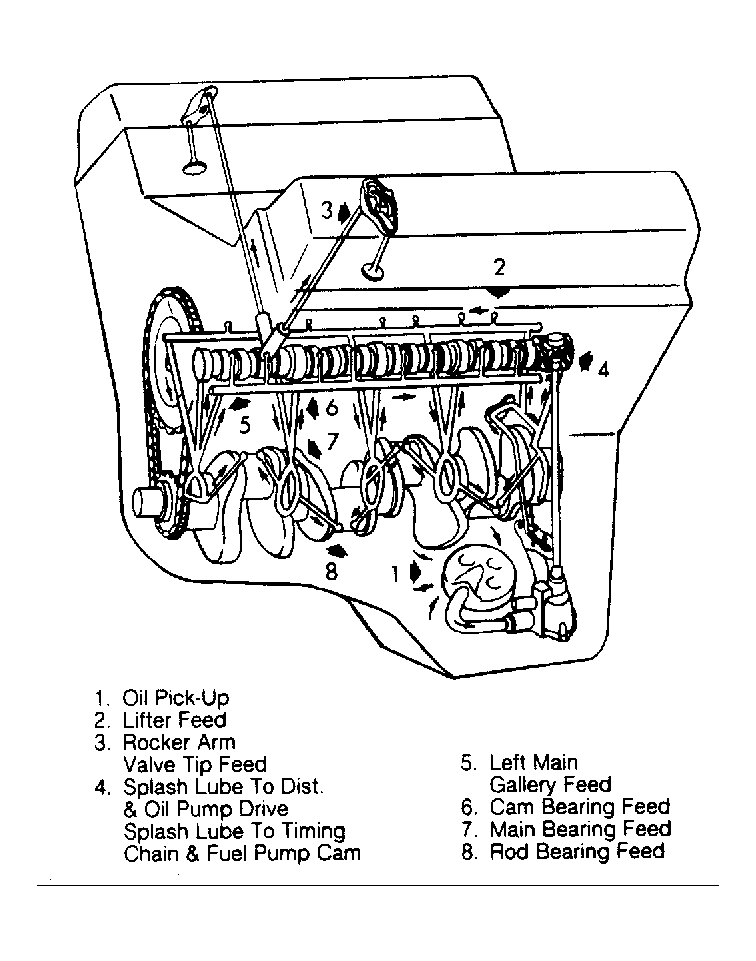

Crankshaft & Camshaft Bearings
Rear crankshaft and camshaft bearings are lubricated by vertical passage intersecting horizontal cross passage from oil filter. Other crankshaft and camshaft bearings are lubricated by "V"-shaped oil passage in each crankcase web.
