Removal & Installation (Firenza)

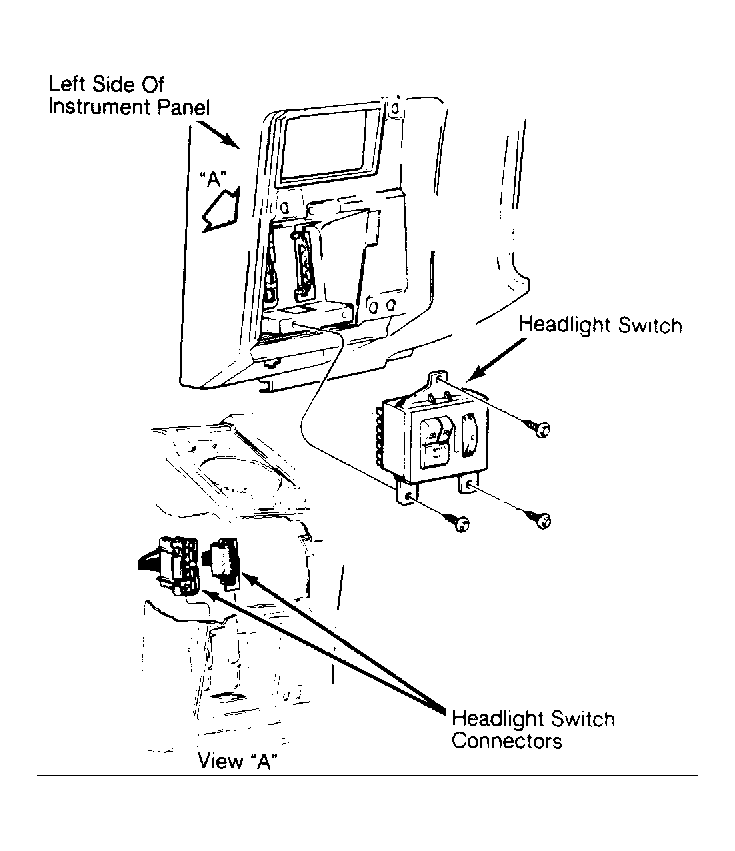

- Remove right, left and steering column trim covers. Remove 7 screws attaching cluster trim cover to instrument panel and remove trim cover. Remove lens and 5 screws attaching bezel to cluster carrier.
- Loosen steering column upper retaining bolts and lower column. Remove 4 screws attaching cluster housing to carrier . Pull cluster out and disconnect speedometer cable. Remove cluster housing.
- Remove LED/photo cell retaining screw from back of speedometer. Remove 2 screws attaching speedometer head to cluster housing from rear of cluster. Remove speedometer.
- Remove snap-in bulbs from rear of cluster. Disconnect speed sensor connector. Remove any nuts retaining printed circuit to cluster housing and remove printed circuit. To install, reverse removal procedure.
