Removal & Installation (88 & 98)

Remove steering column trim cover and gauge cluster. Remove headlight switch knob. Remove 2 screws under speedometer. Pull cover out of mounting clips. To install, reverse removal procedure.

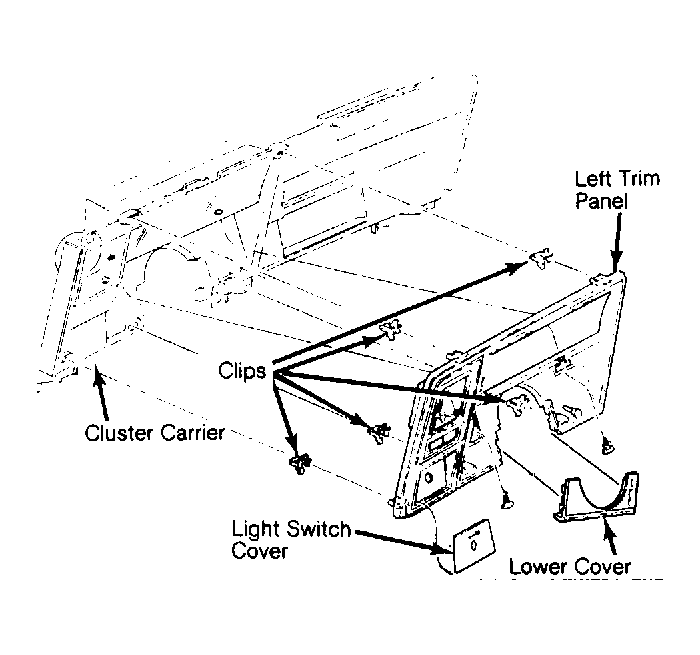

Fig 1: Left Trim Panel Removal (88 and 98)
G981
