Lateral Runout

Adjust wheel bearings until all end play is eliminated. Attach a dial indicator to front suspension so pointer contacts face of rotor about 1 inch from edge. Set gauge to zero, then turn rotor through one complete revolution. Check gauge reading with specifications for maximum runout.

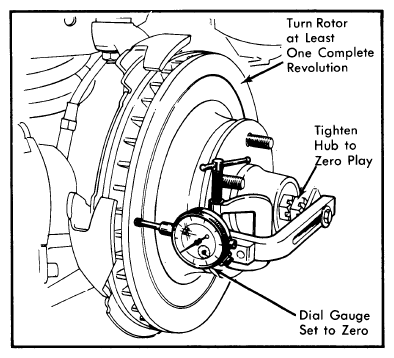

Fig 1: Checking Rotor Lateral Runout
G09347599Courtesy of GENERAL MOTORS COMPANY
