Wiring Diagrams

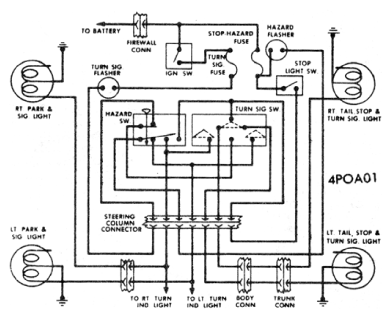

Fig 1: All Car Models Turn Signal & Hazard Warning Wiring (Typical)

G09306695

Courtesy of NOT AVAILABLE
