Wiring Diagrams

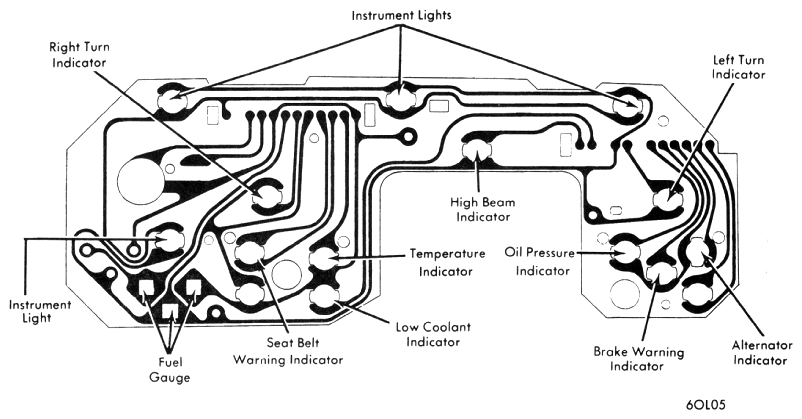

Fig 1: 88, 98 & Toronado
G09306607Courtesy of GENERAL MOTORS COMPANY

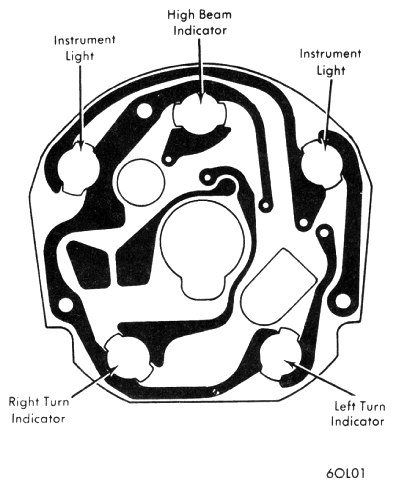

Fig 2: Cutlass Speedometer Cluster
G09306608Courtesy of GENERAL MOTORS COMPANY

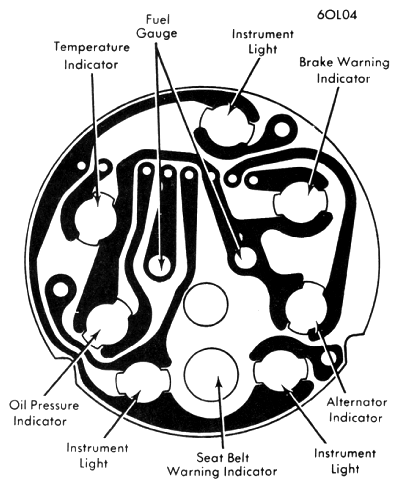

Fig 3: Cutlass Fuel Gauge Cluster (With Indicator Lights)
G09306609Courtesy of GENERAL MOTORS COMPANY

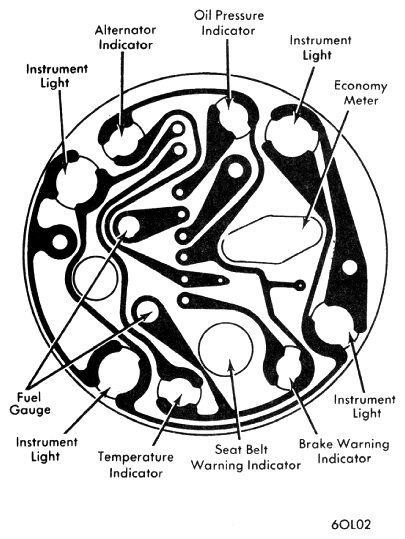

Fig 4: Cutlass Fuel Gauge Cluster (With Economy Pack)
G09306610Courtesy of GENERAL MOTORS COMPANY

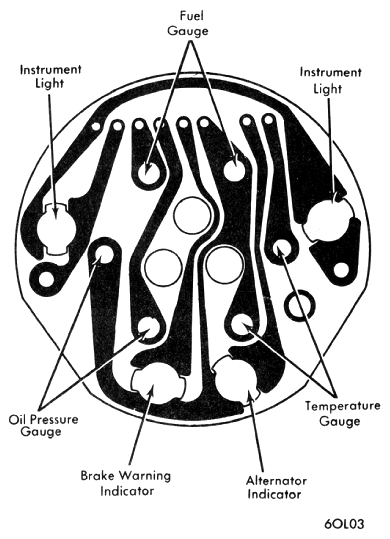

Fig 5: Cutlass Fuel Gauge Cluster (With Gauges)
G09306611Courtesy of GENERAL MOTORS COMPANY

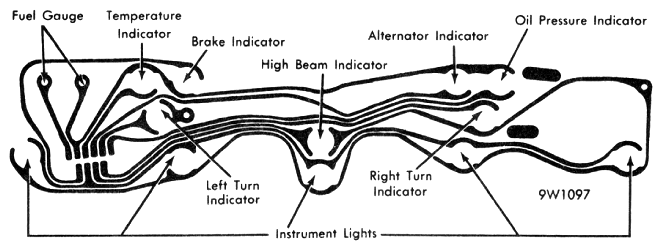

Fig 6: Omega
G09306612Courtesy of GENERAL MOTORS COMPANY

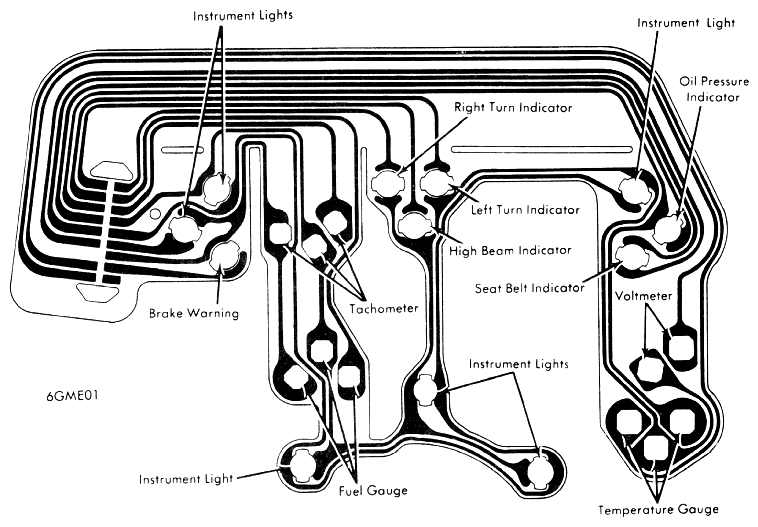

Fig 7: Starfire
G09306613Courtesy of GENERAL MOTORS COMPANY
