Engine Oiling System: Notes

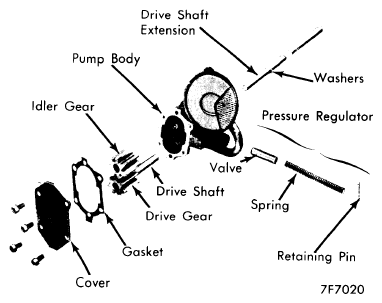

See Figure. Oil pump mounted on rear main bearing cap in crankcase with full flow filter on right side of crankcase. Oil from filter flows through passages at rear of block to rear end of right main oil gallery and through "V" passage at front of engine to left main oil gallery. Oil distribution is as follows:
