Parking Brake Adjustment: Pontiac

Depress parking brake pedal eight notches from fully released position. Loosen equalizer rear lock nut. Adjust front nut until a light to moderate drag is felt when rear wheels are rotated. Tighten lock nut. Fully release parking brake and turn rear wheels; no drag should be felt.

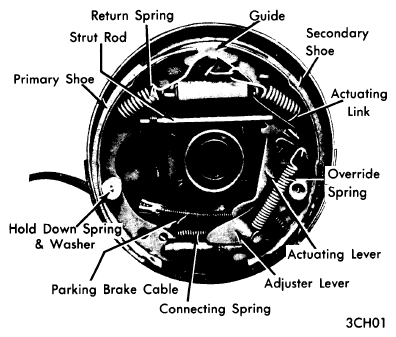

Fig 1: BRAKE ASSEMBLY (TYPICAL, EXC. CADILLAC)
G09321177Courtesy of GENERAL MOTORS COMPANY
