Wiring Diagrams

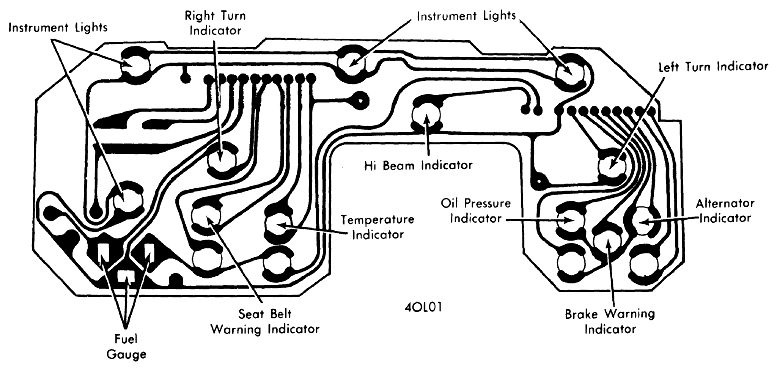

Fig 1: DELTA 88, NINETY EIGHT & TORONADO
G09306304Courtesy of GENERAL MOTORS COMPANY

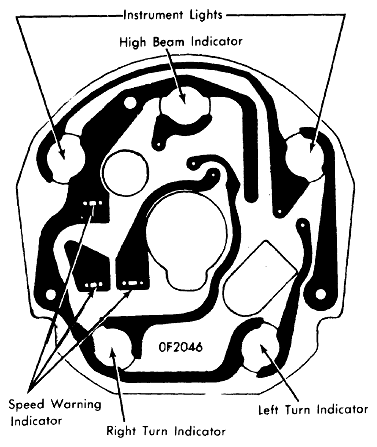

Fig 2: CUTLASS (WITH INDICATOR LIGHTS & SPEED WARNING)
G09306305Courtesy of GENERAL MOTORS COMPANY

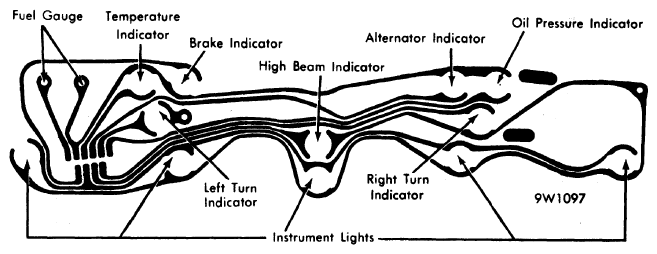

Fig 3: OMEGA
G09306306Courtesy of GENERAL MOTORS COMPANY
