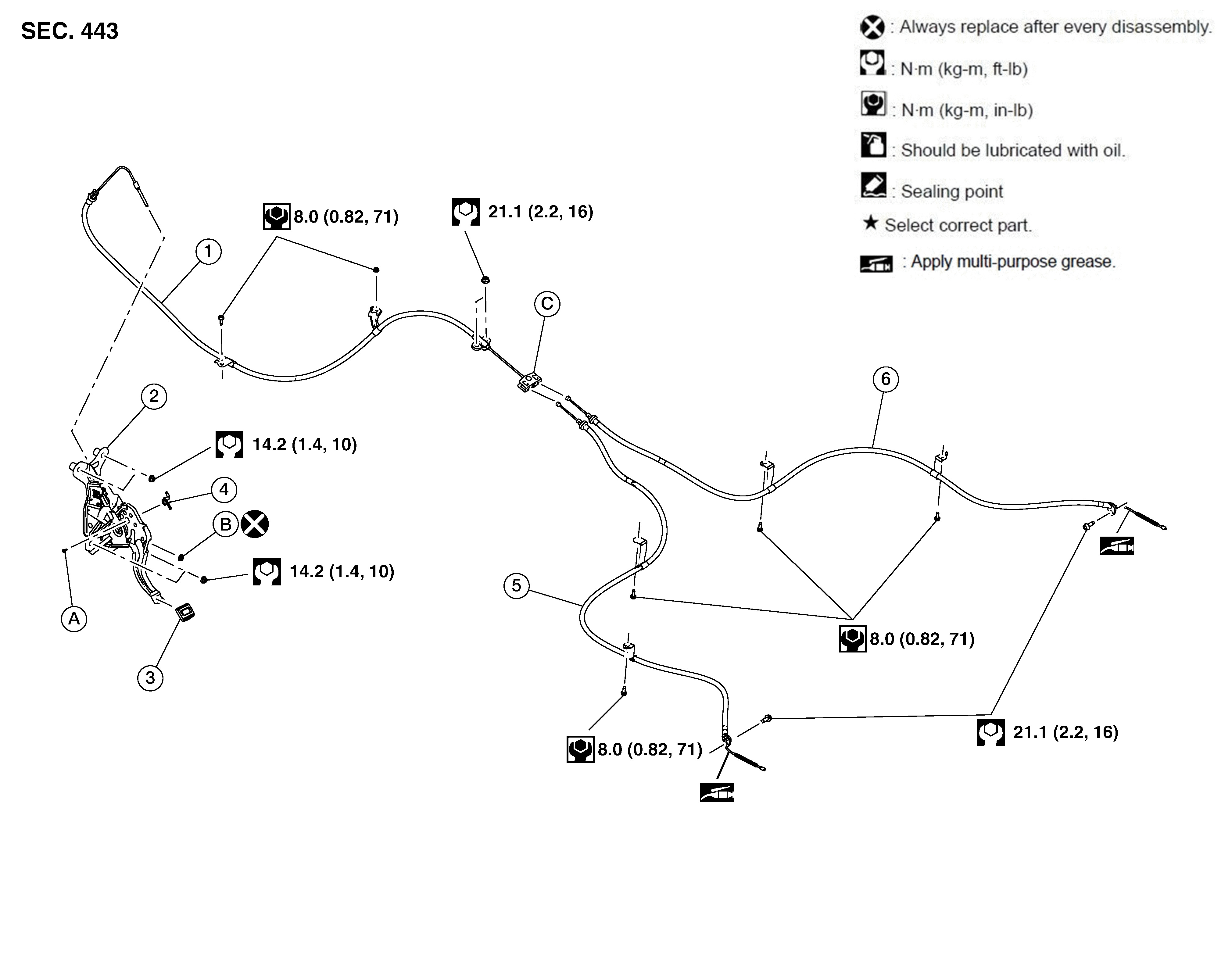

1.
Front parking brake cable
2.
Parking brake pedal assembly
3.
Pedal pad
4.
Parking brake switch
5.
Rear parking brake cable (LH)
6.
Rear parking brake cable (RH)
A.
Screw
B.
Adjusting nut
C.
Equalizer
Apply multi-purpose grease.
