Exploded View

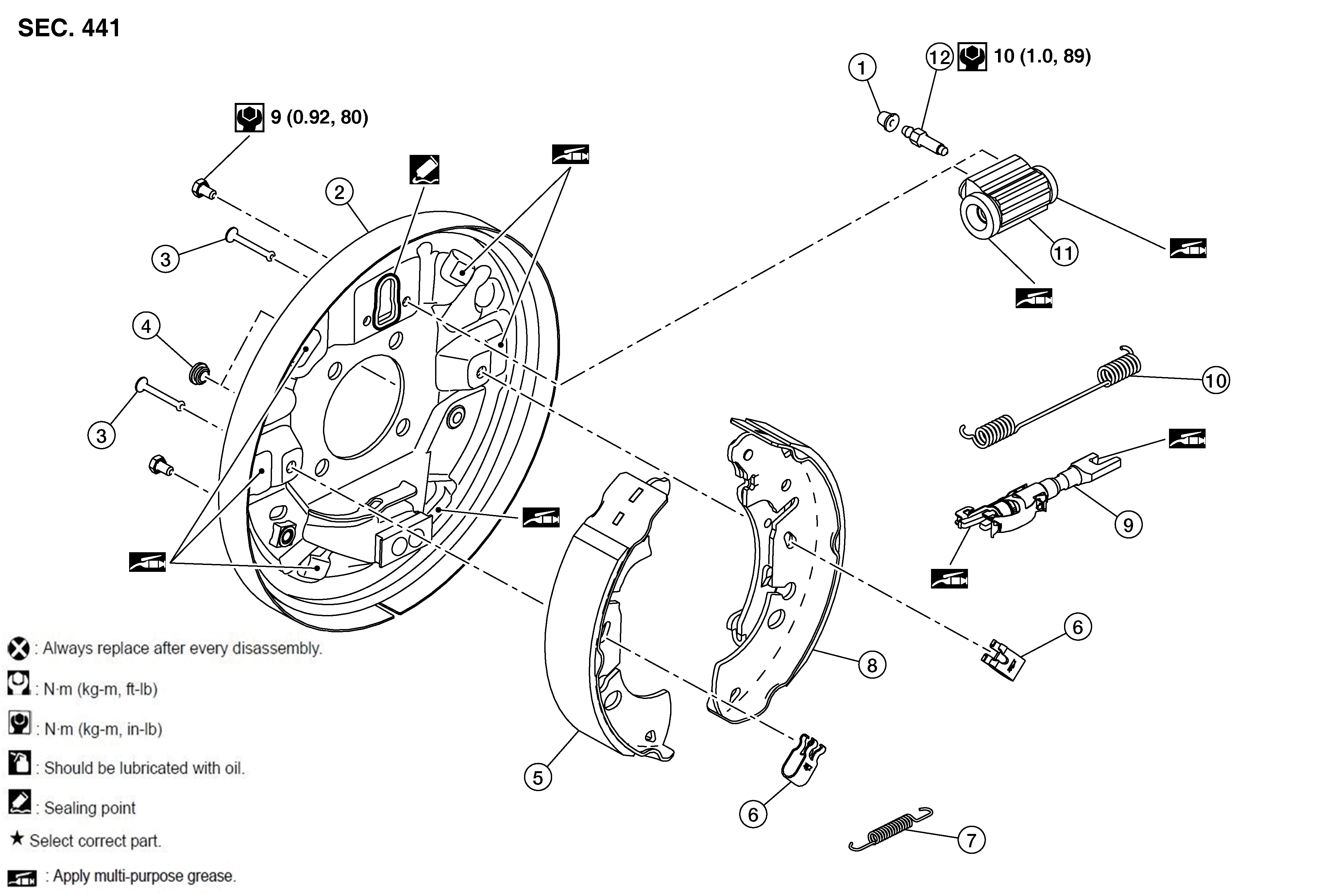

Fig 1: Rear Brake Assembly With Torque Specifications
GNSALFIA0237Z-237Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bleeder Cap

2.

Back plate

3.

Shoe hold pin

4.

Plug

5.

Brake shoe (leading side)

6.

Retainer

7.

Return spring (lower side)

8.

Brake shoe (trailing side)

9.

Adjuster

10.

Adjuster spring

11.

Wheel cylinder

12.

Bleeder Valve

SYMBOL

Molyguard GS 2039 or Kluber Syntheso GLEP 1 grease

SYMBOL

Silicone sealant
