Removal and Installation: Removal

  1. Remove the front wiper drive assembly. Refer to Removal and Installation .

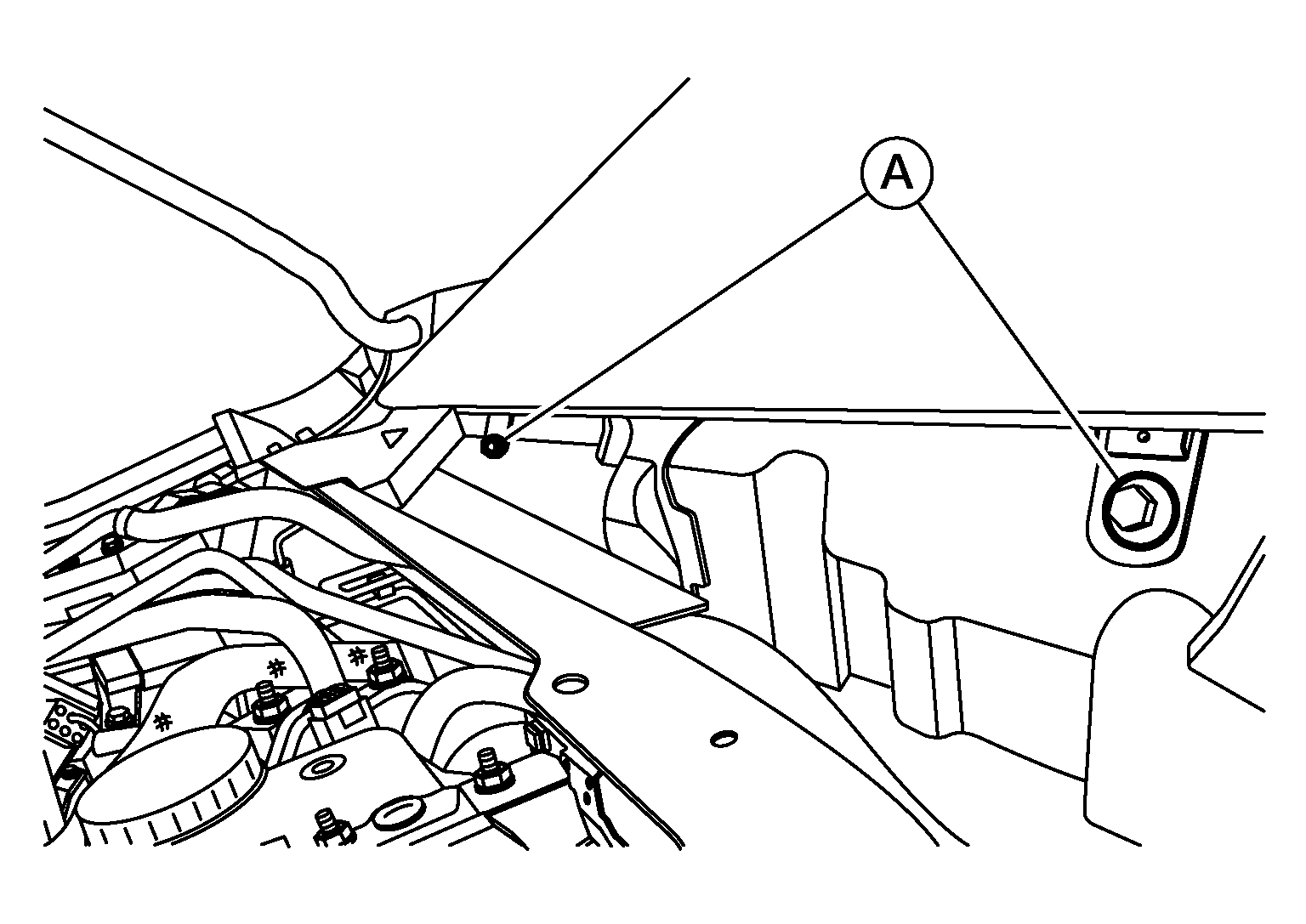

  2. Remove steering member bolts (A) in engine room.
    GNSALJIA0582Z-582Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the instrument panel assembly. Refer to Removal and Installation .
  4. Remove left knee air bag module. Refer to Removal and Installation .
  5. Remove right knee air bag module. Refer to Removal and Installation .

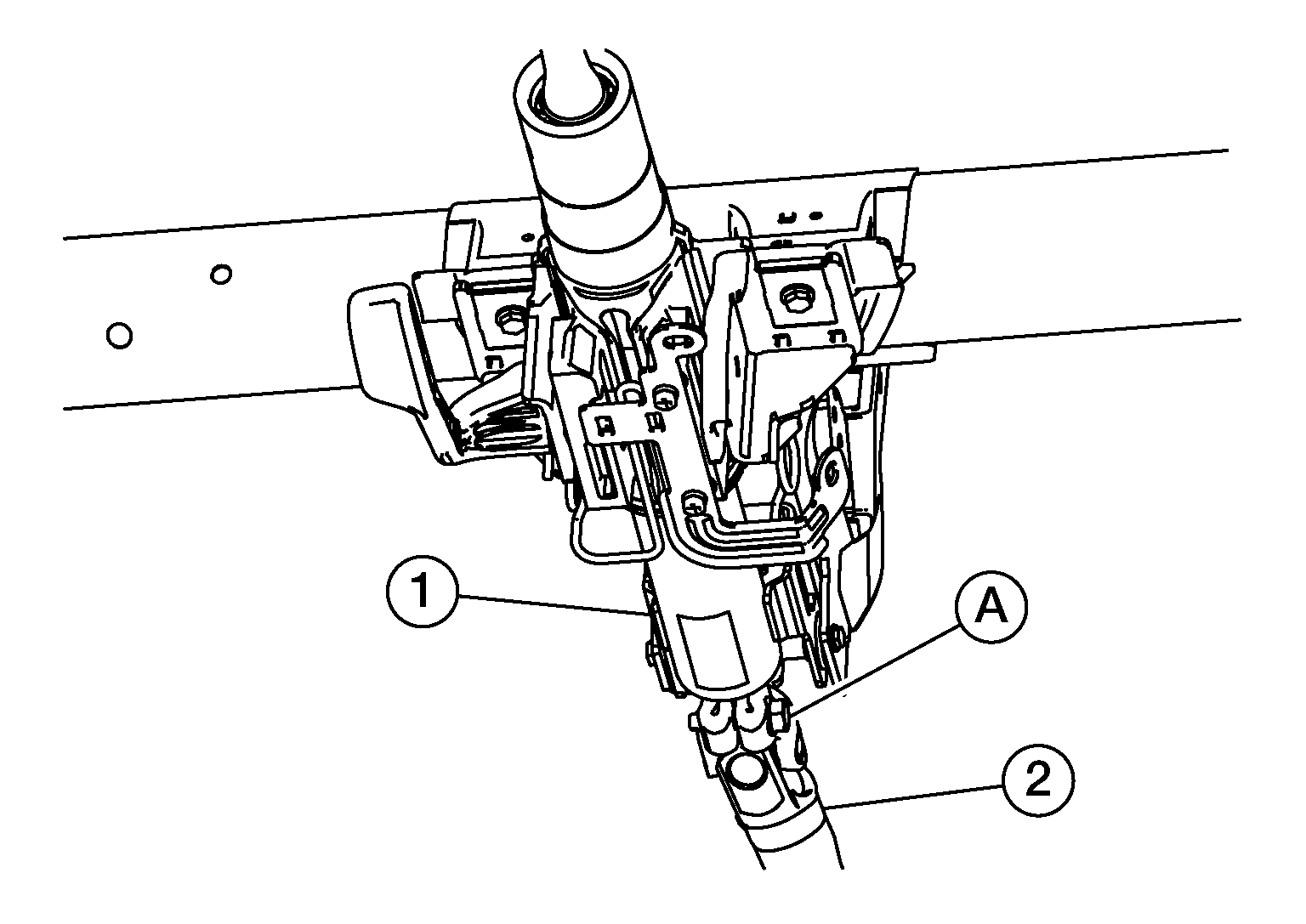

  6. Remove bolt (A) and separate lower joint (2) from steering column (1).
    GNSALGIA0169Z-169Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Place a matching mark on both lower joint and steering column before separating.

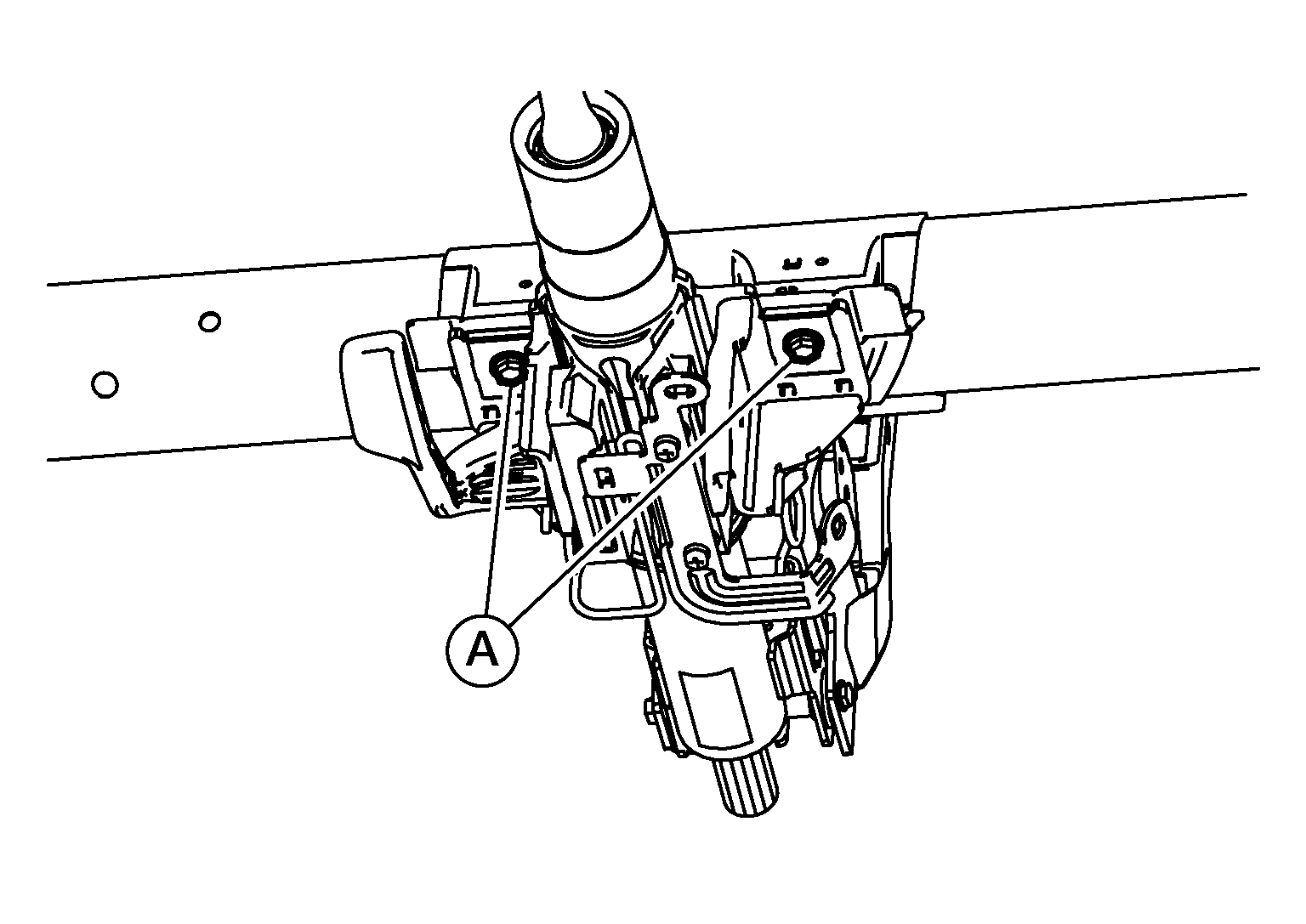

  7. Remove bolts (A) and lower steering column to the floor.
    GNSALGIA0170Z-170Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove heating and cooling unit assembly bolts. Refer to Exploded View .
  9. Disconnect all necessary harness connectors.
  10. Remove steering member bolts. Refer to Exploded View .
  11. Remove steering member from vehicle.
    CAUTION: Two people are required for removal to prevent damage to steering member.
