Removal and Installation: Removal

  1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to Battery Disconnect .
  2. Remove the front pillar finishers (LH/RH). Refer to Removal and Installation .
  3. Remove instrument finisher B. Refer to Removal and Installation .
  4. Remove cluster lid C. Refer to Removal and Installation .
  5. Remove AV control unit. Refer to Removal and Installation (DISPLAY AUDIO WITH 7" COLOR DISPLAY), Removal and Installation (DISPLAY AUDIO WITHOUT BOSE WITH 8" COLOR DISPLAY), Removal and Installation (DISPLAY AUDIO WITH BOSE WITH 8" COLOR DISPLAY), Removal and Installation (INTELLIGENT AROUND VIEW MONITOR SYSTEM), Removal and Installation (REAR VIEW MONITOR WITH 7" COLOR DISPLAY), or Removal and Installation (REAR VIEW MONITOR WITH 8" COLOR DISPLAY).
  6. Remove steering column covers. Refer to Removal and Installation .
  7. Remove the steering wheel. Refer to Removal and Installation .
  8. Remove the combination switch. Refer to Removal and Installation .
  9. Remove the combination meter. Refer to Removal and Installation (Type A) or Removal and Installation (Type B).
  10. Remove center ventilator grille. Refer to Removal and Installation .
  11. Remove the side ventilator grille (RH). Refer to Removal and Installation .

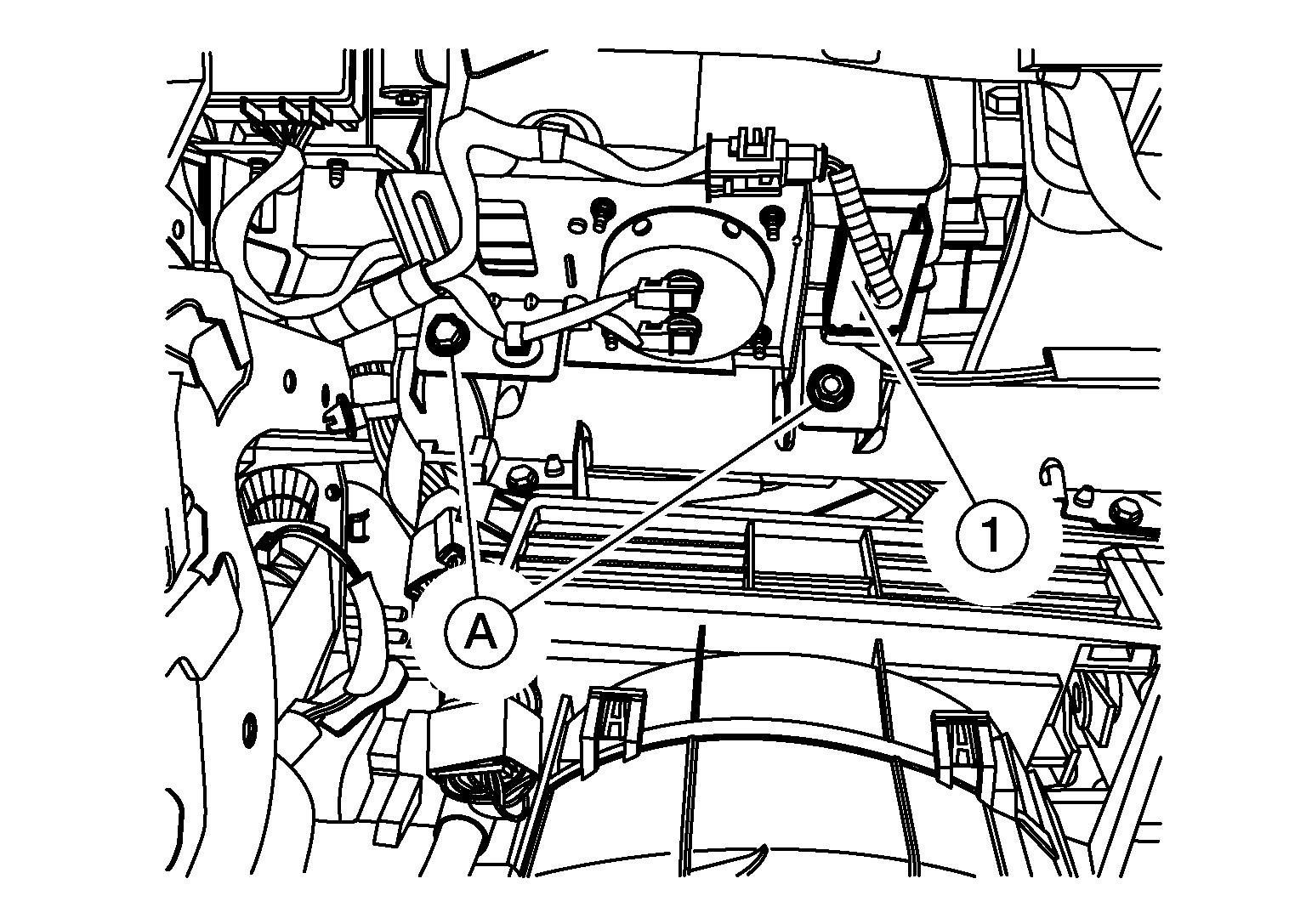

  12. Remove bolts (A) from front passenger air bag module (1).
    GNSALJIA0583Z-583Courtesy of NISSAN NORTH AMERICA, INC.

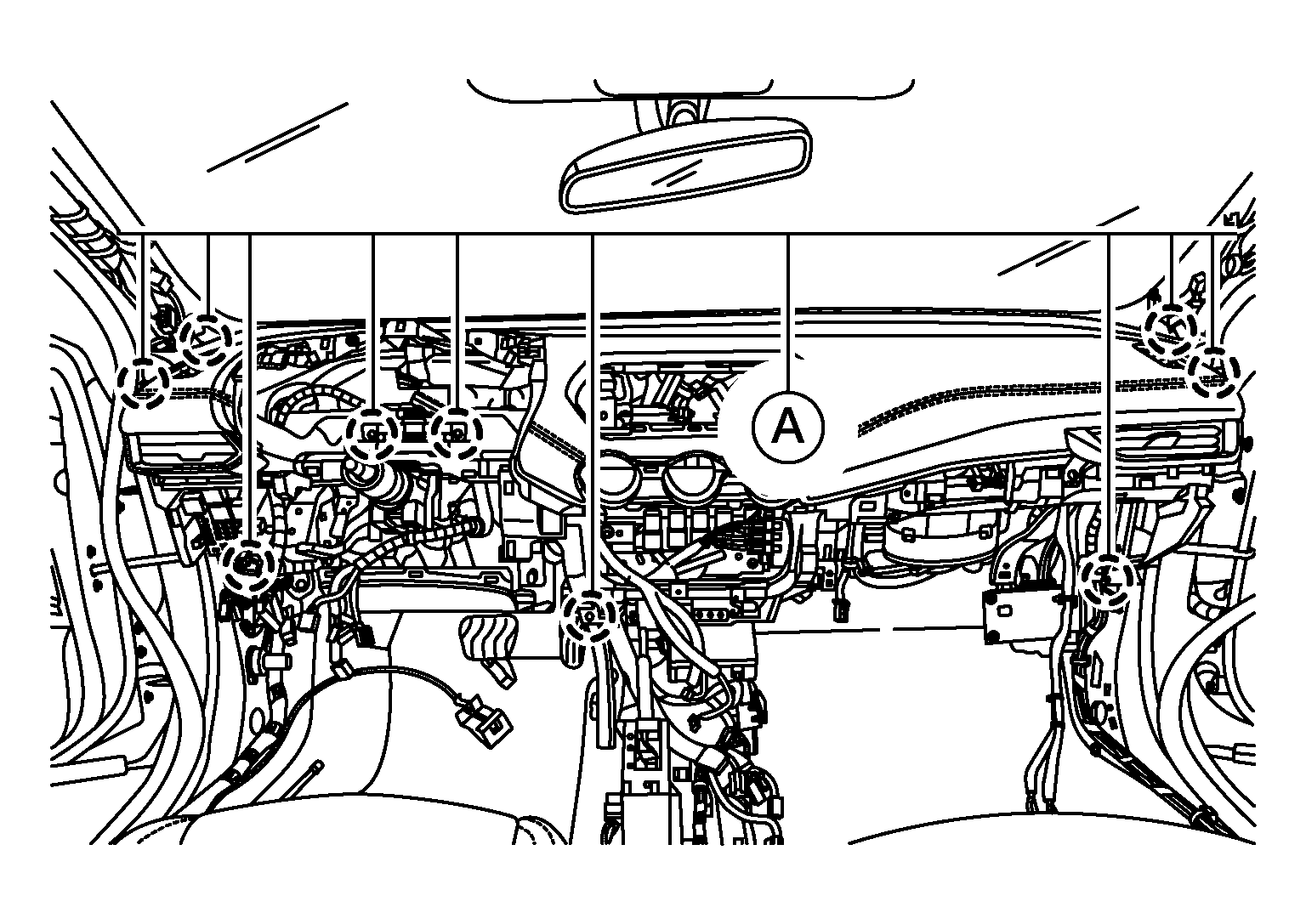

  13. Remove the instrument panel screws (A).
    GNSALJIA0518Z-518Courtesy of NISSAN NORTH AMERICA, INC.
  14. Disconnect the harness connector from the front passenger air bag module.
  15. Disconnect all remaining harness connectors.
  16. Remove the instrument panel assembly.
    CAUTION: Be careful not to scratch the instrument panel and other parts.
