Removal and Installation: Removal

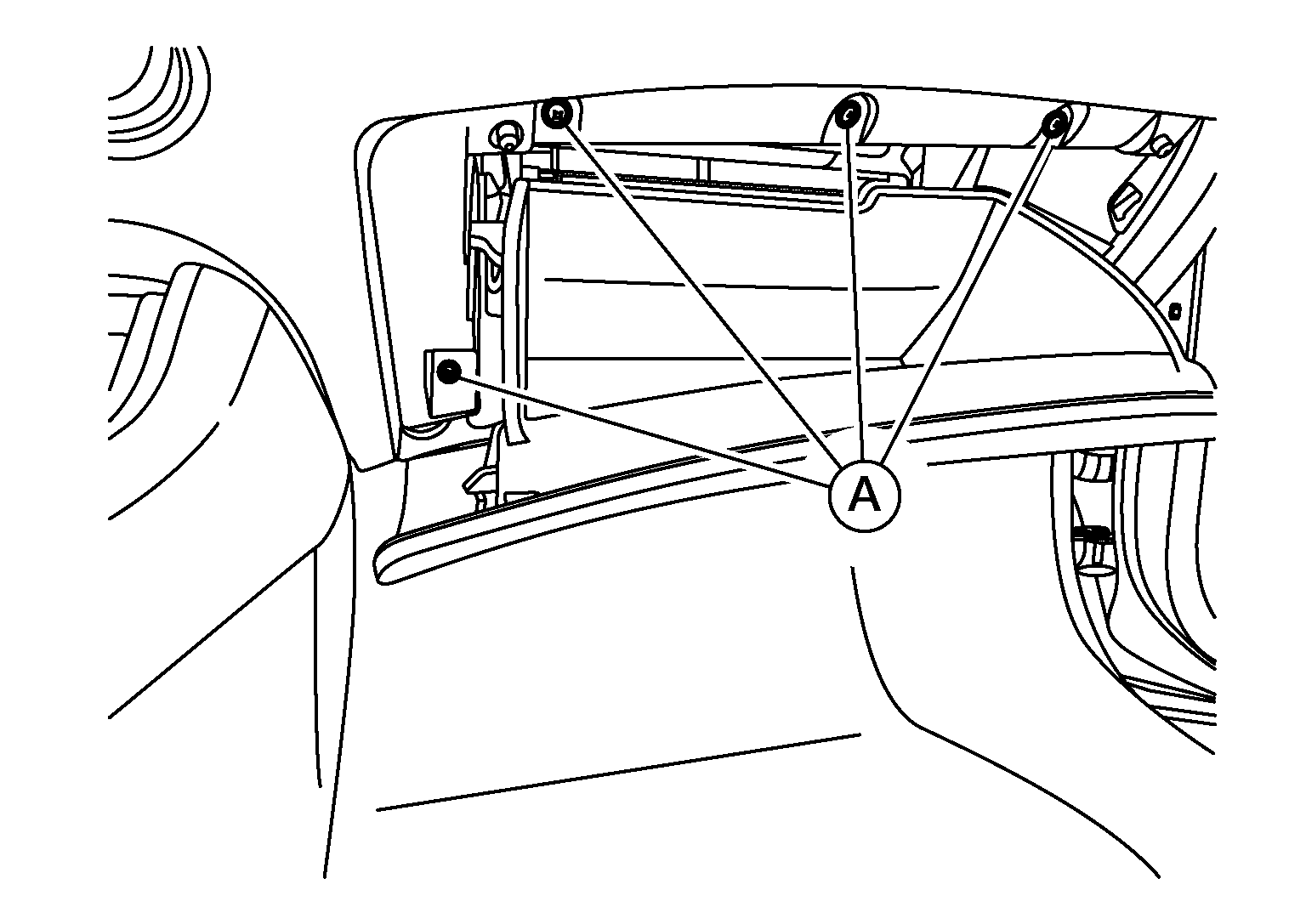

  1. Remove the glove box assembly upper screws (A).
    GNSALJIA0519Z-519Courtesy of NISSAN NORTH AMERICA, INC.

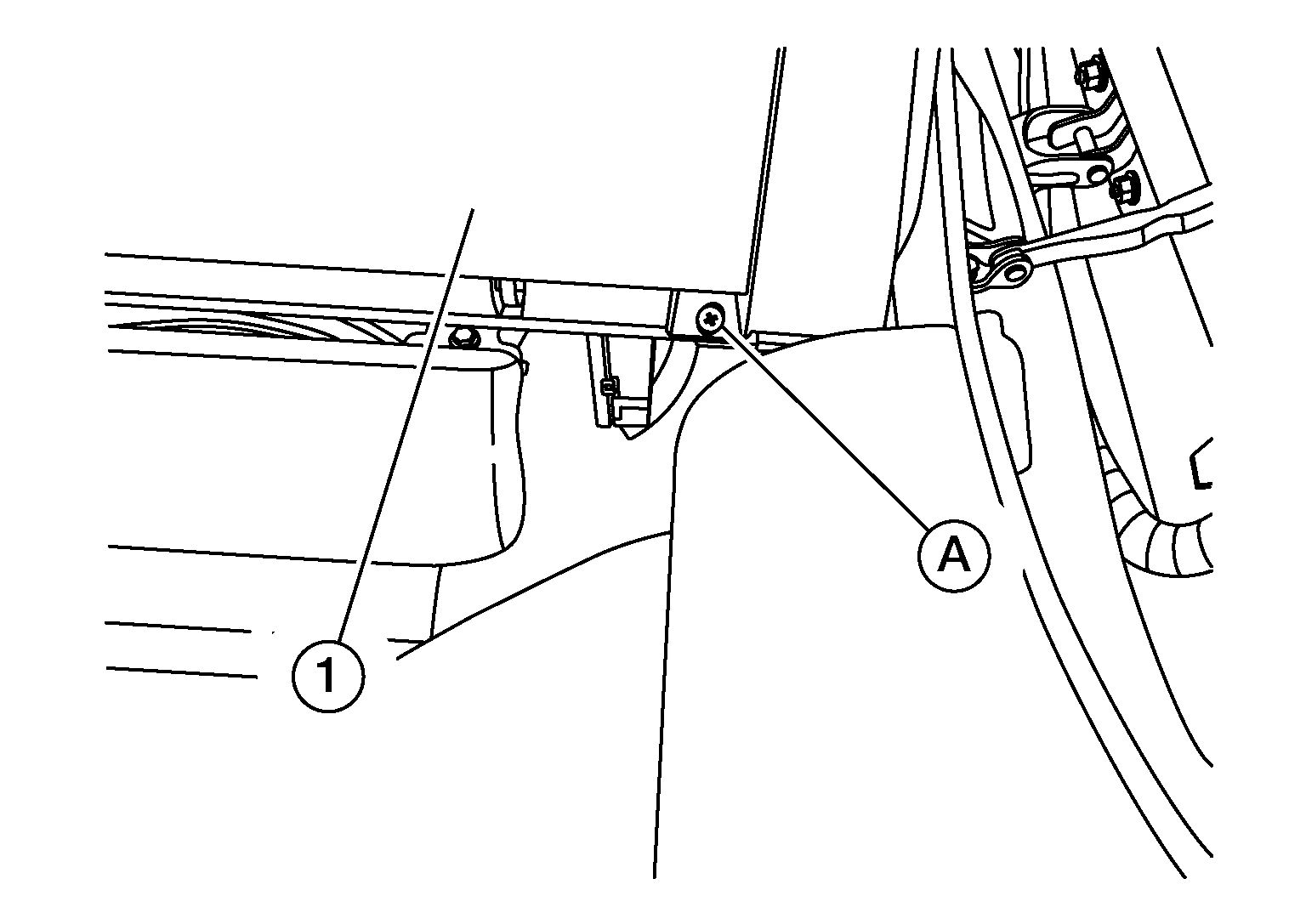

  2. Remove the glove box assembly (1) lower screw (A).
    GNSALJIA0522Z-522Courtesy of NISSAN NORTH AMERICA, INC.

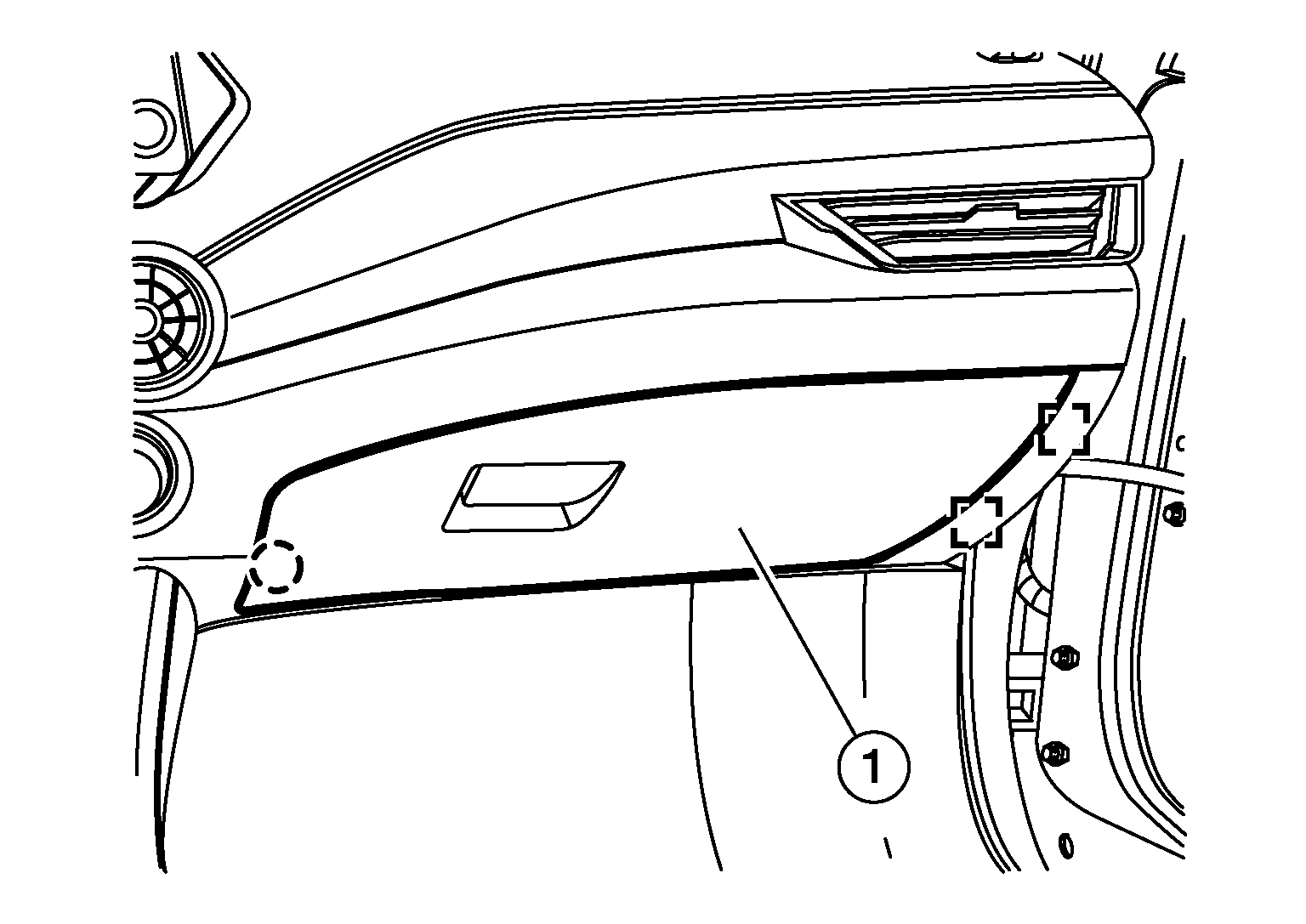

  3. Using a suitable tool, release clips and pawl and remove the glove box assembly (1).
    GNSALJIA0592Z-592Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Pawl
