Removal and Installation: Removal

  1. Using a suitable tool, release clips.

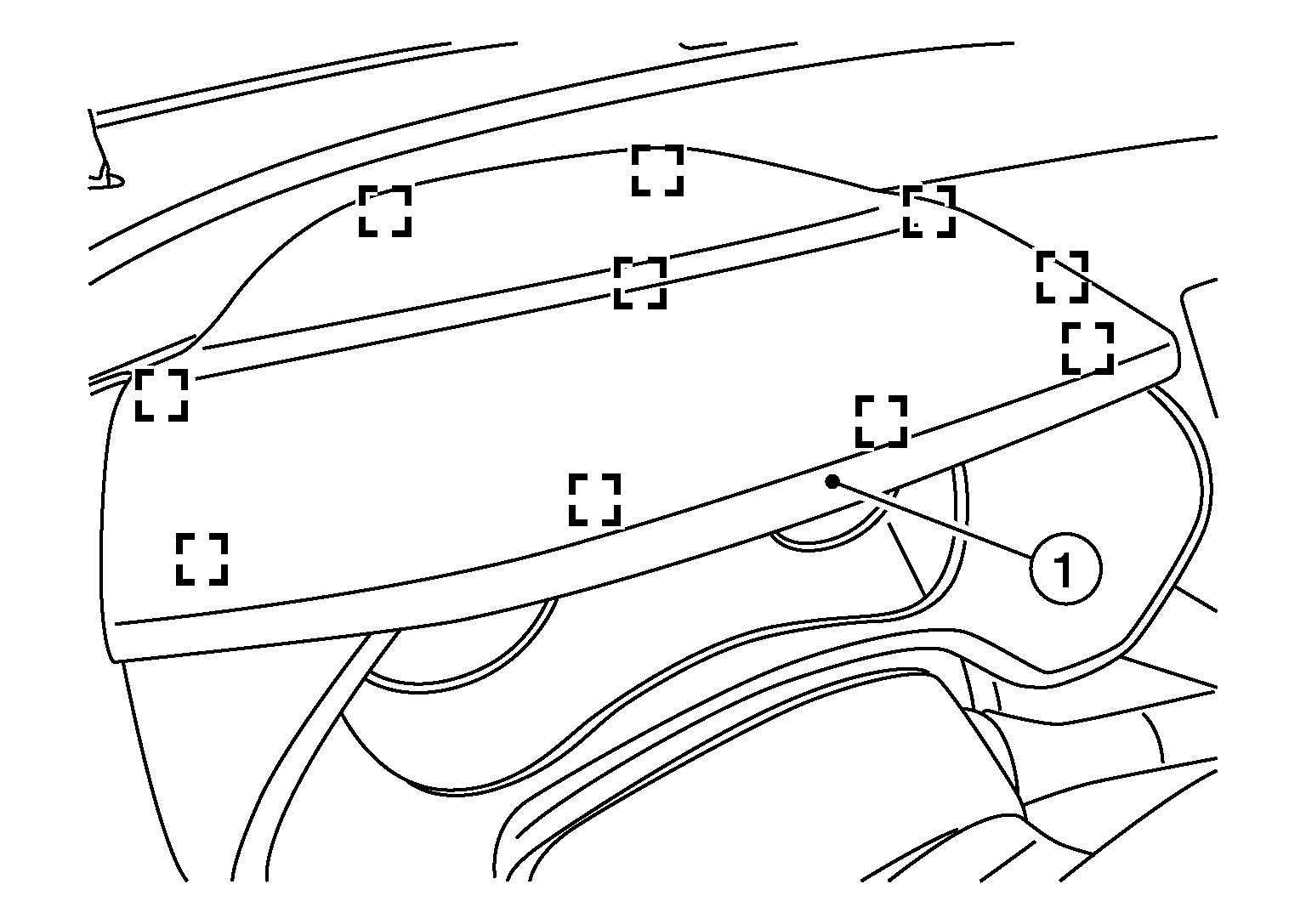

    GNSALJIA0526Z-526Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

  2. Remove cluster lid D (1).
