Removal and Installation: Removal

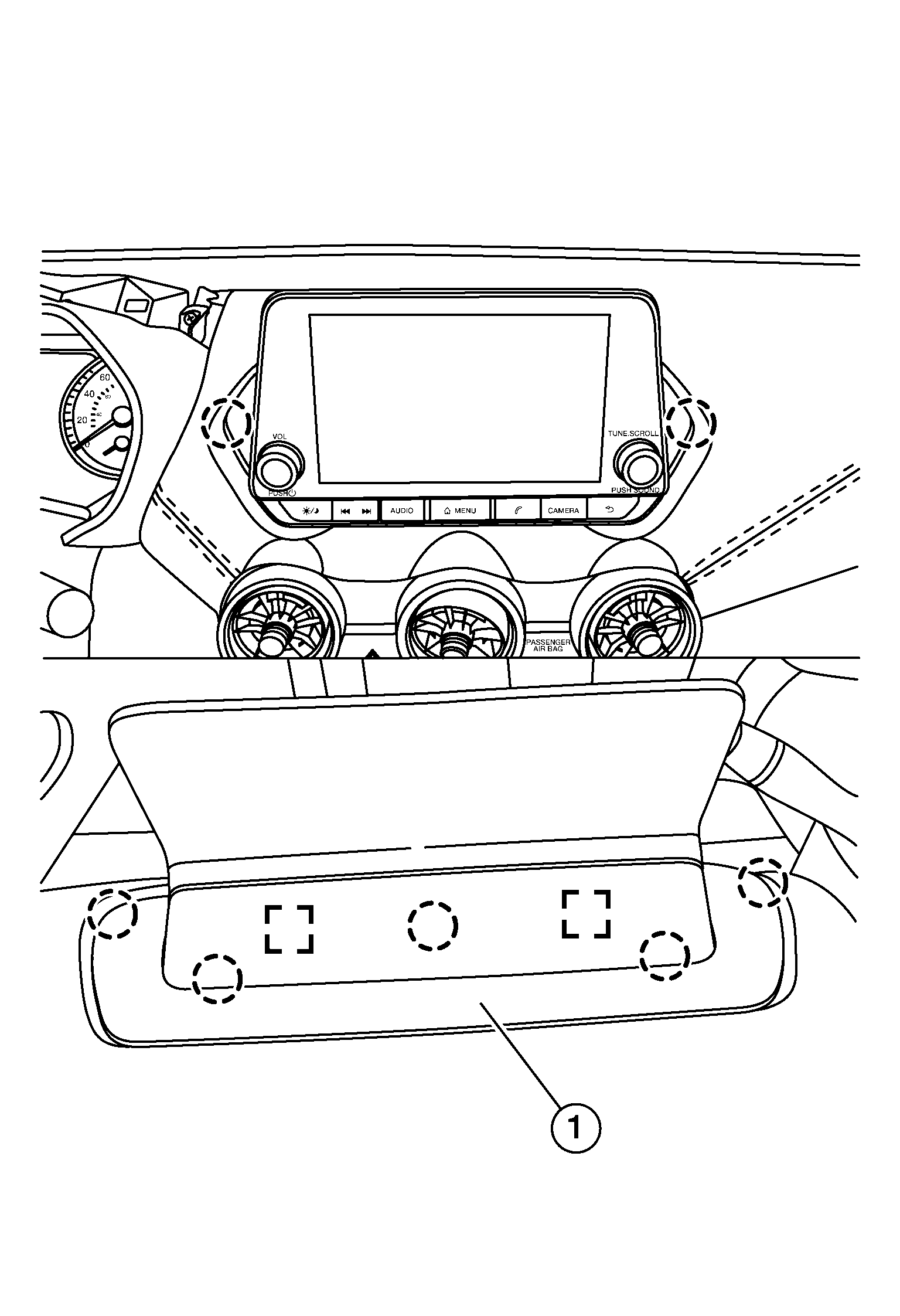

  1. Using a suitable tool, release clips and pawls.
    GNSALJIA0520Z-520Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    SYMBOL : Metal clip

  2. Remove cluster lid C (1).
