Component Location - VK56VD

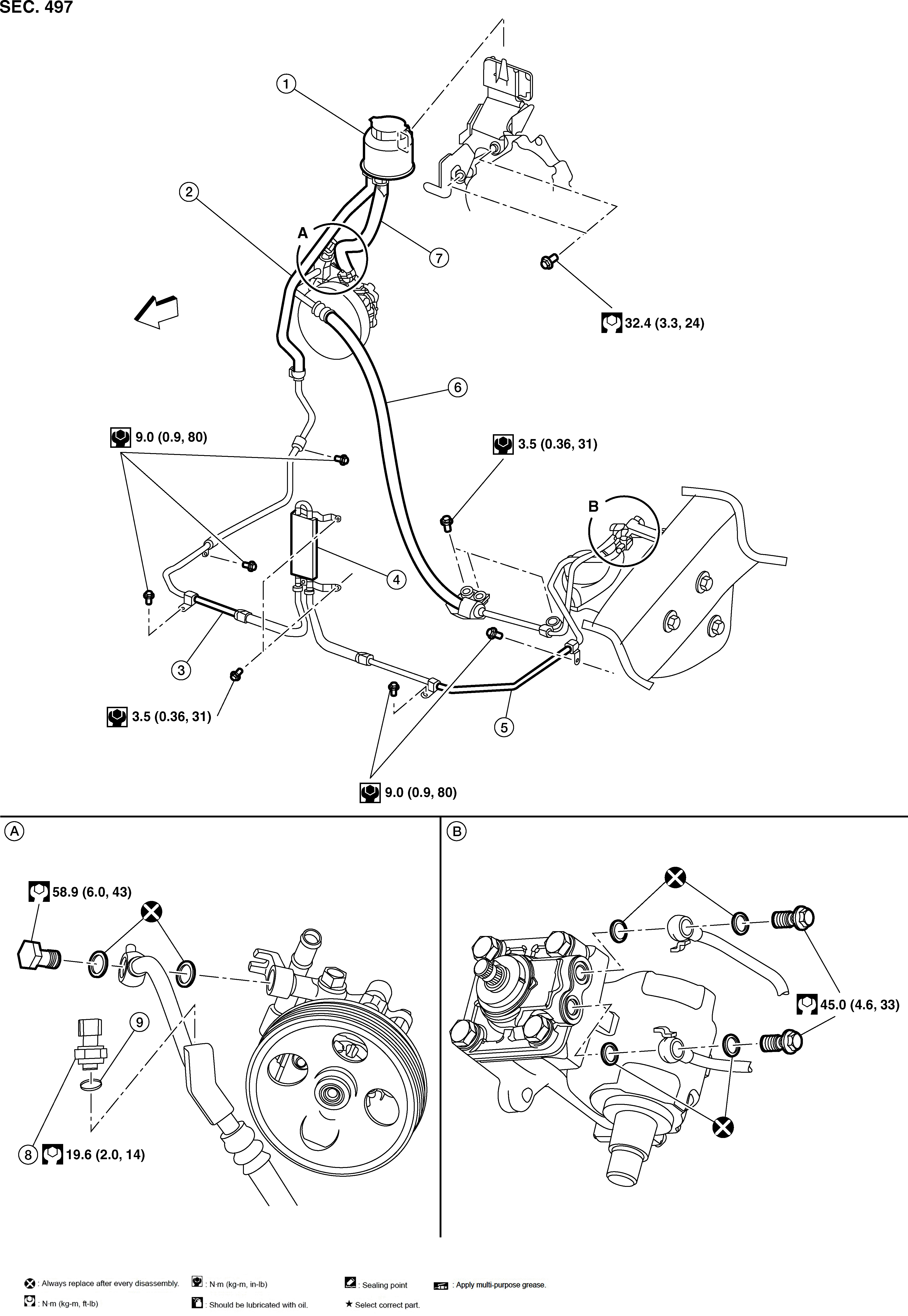

Fig 1: Hydraulic Line With Torque Specifications
GNSAWGIA0517Z-517Courtesy of NISSAN NORTH AMERICA, INC.

1.

Power steering reservoir tank

2.

Power steering return hose

3.

Power steering return pipe

4.

Oil cooler assembly

5.

Power steering gear return pipe

6.

Power steering pressure line

7.

Power steering suction hose

8.

Power steering pressure sensor

9.

O-ring

SYMBOL

Front
