Exploded View

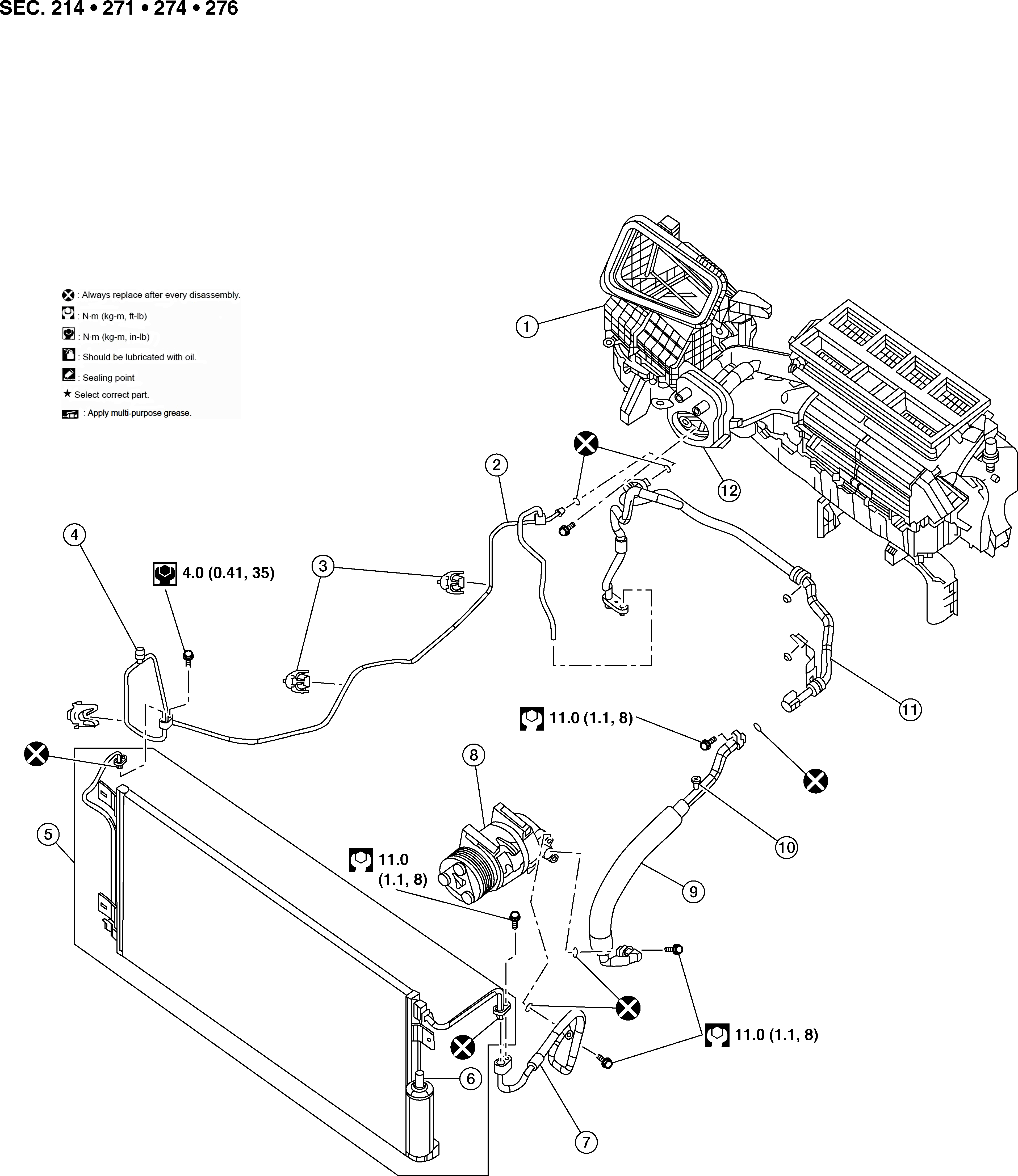

Fig 1: A/C Compressor and Condenser With Torque Specifications - VQ40DE Without Rear A/C

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front heating and cooling unit assembly	2.	High-pressure pipe	3.	High-pressure pipe clips
4.	High-pressure A/C service valve	5.	Condenser and liquid tank assembly	6.	Refrigerant pressure sensor
7.	High-pressure flexible hose	8.	Compressor	9.	Low-pressure flexible hose
10.	Low-pressure A/C service valve	11.	Low-pressure pipe	12.	Front expansion valve

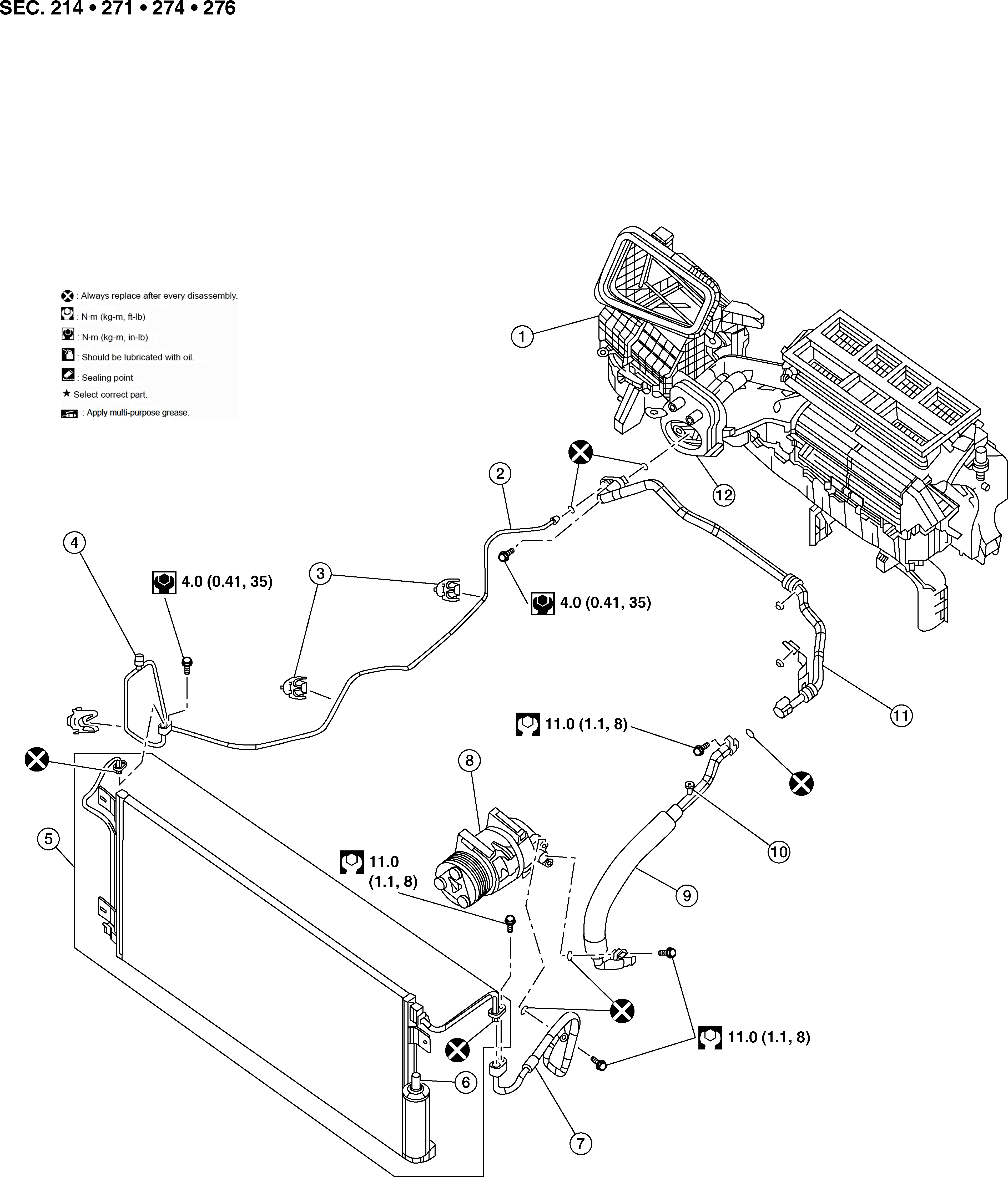

Fig 2: A/C Compressor and Condenser With Torque Specifications - VK56VD Without Rear A/C

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front heating and cooling unit assembly	2.	High-pressure pipe	3.	High-pressure pipe clips
4.	High-pressure A/C service valve	5.	Condenser and liquid tank assembly	6.	Refrigerant pressure sensor
7.	High-pressure flexible hose	8.	Compressor	9.	Low-pressure flexible hose
10.	Low-pressure A/C service valve	11.	Low-pressure pipe	12.	Front expansion valve

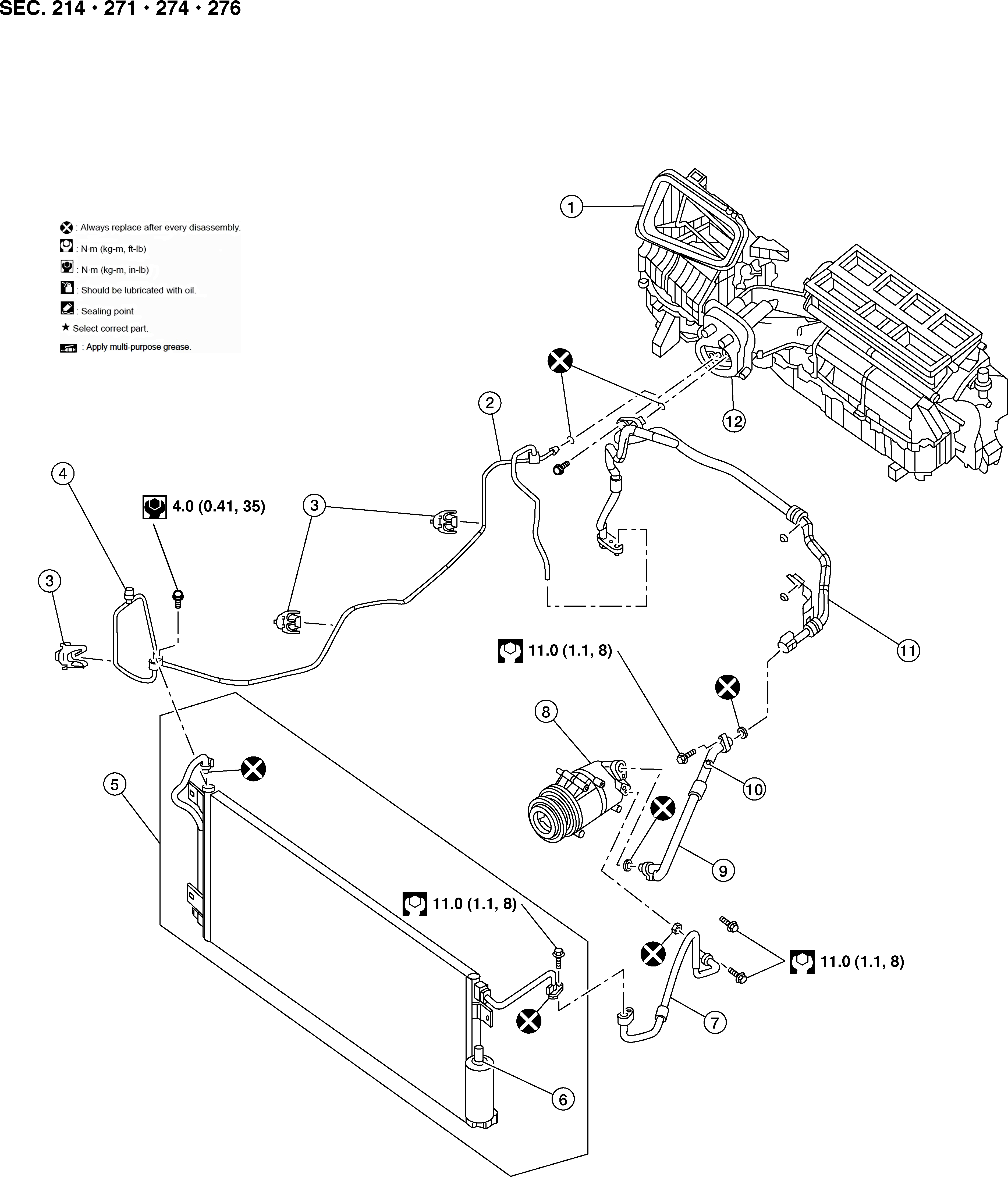

Fig 3: A/C Compressor and Condenser - VK56VD With Rear A/C

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front heating and cooling unit assembly	2.	High-pressure pipe	3.	High-pressure pipe clips
4.	High-pressure A/C service valve	5.	Condenser and liquid tank assembly	6.	Refrigerant pressure sensor
7.	High-pressure flexible hose	8.	Compressor	9.	Low-pressure flexible hose
10.	Low-pressure A/C service valve	11.	Low-pressure pipe	12.	Front expansion valve

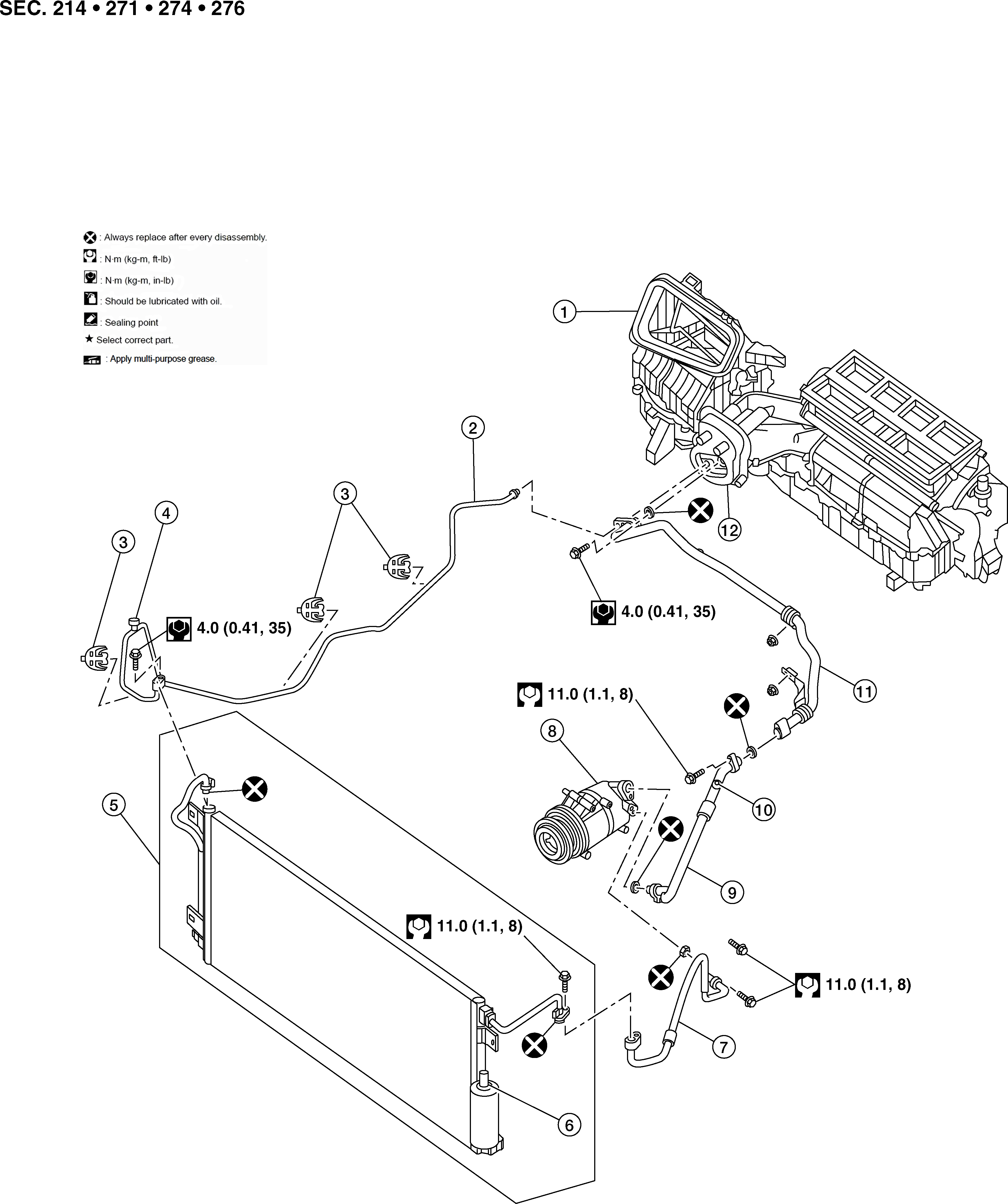

Fig 4: A/C Compressor and Condenser With Torque Specifications - VQ40DE With Rear A/C

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front heating and cooling unit assembly	2.	High-pressure pipe	3.	High-pressure pipe clips
4.	High-pressure A/C service valve	5.	Condenser and liquid tank assembly	6.	Refrigerant pressure sensor
7.	High-pressure flexible hose	8.	Compressor	9.	Low-pressure flexible hose
10.	Low-pressure A/C service valve	11.	Low-pressure pipe	12.	Front expansion valve

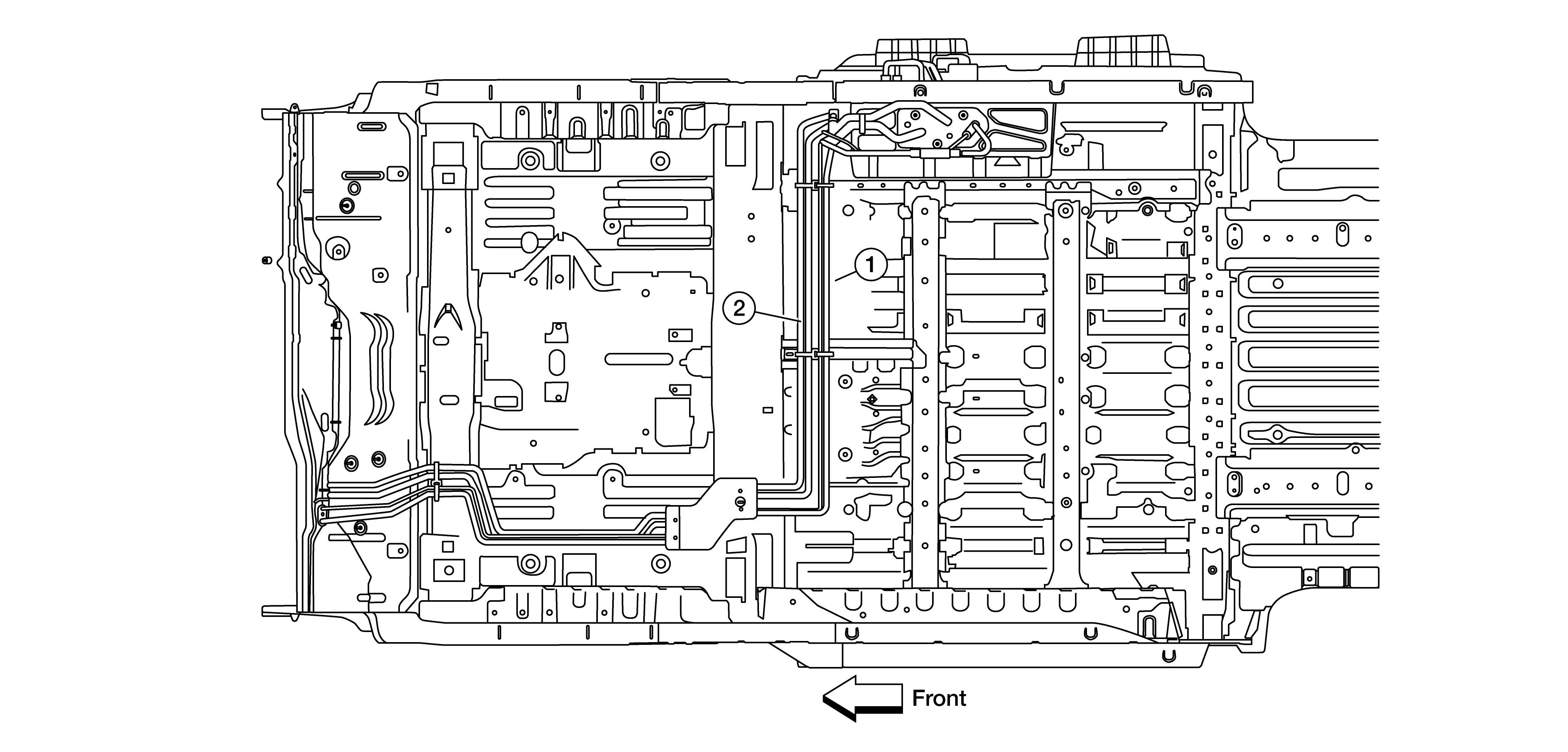

Fig 5: Rear Underfloor High- and Low-Pressure A/C and Heater Core Pipes (If Equipped)

Courtesy of NISSAN NORTH AMERICA, INC.

Underfloor rear high- and low-pressure A/C pipes

Underfloor rear heater core hoses

Front
