Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Note the following, and Install in the reverse order of removal.
- Perform inspection before installing A/T assembly. Refer to Inspection and Adjustment .

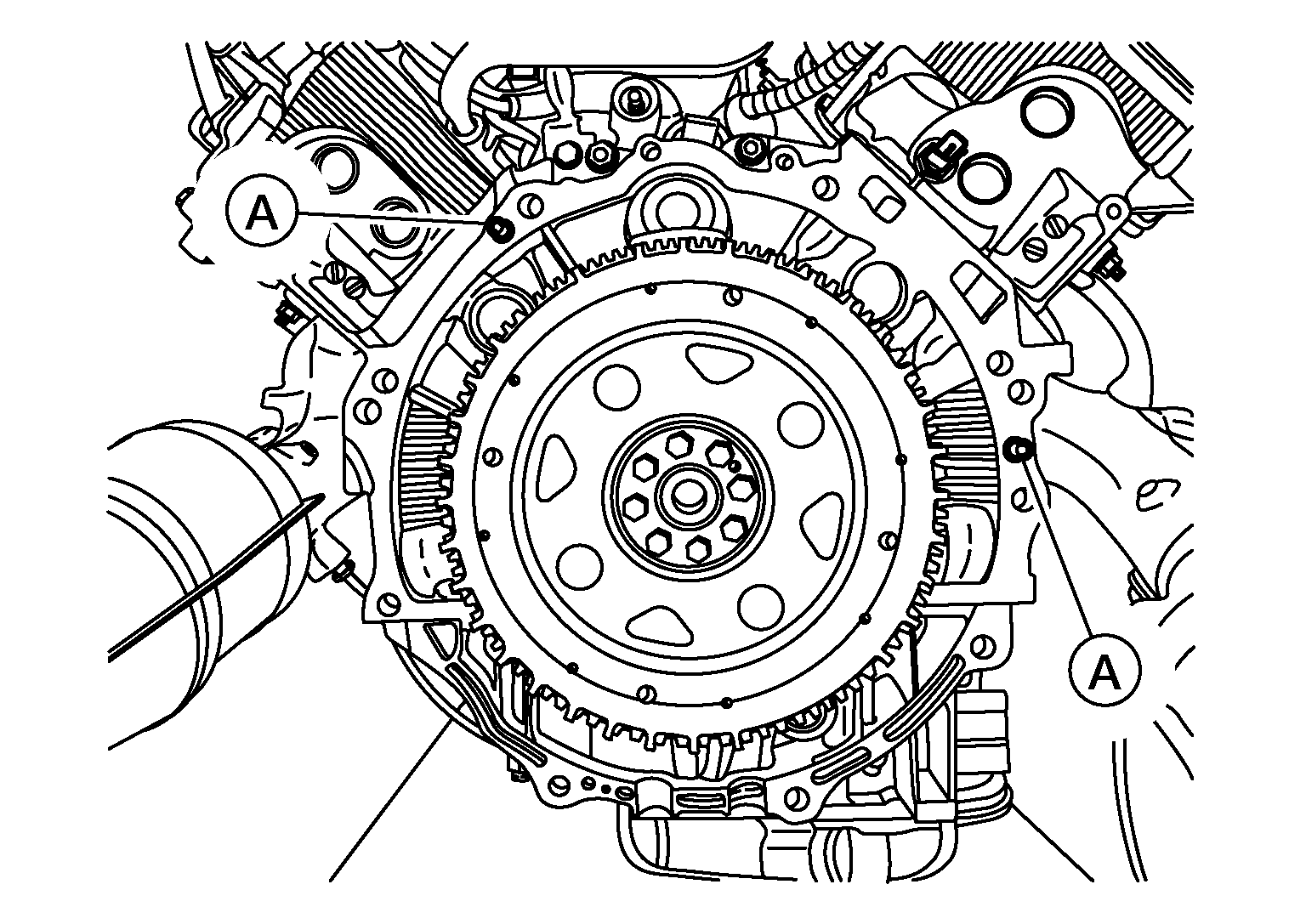

- Check fitting of dowel pin (A).

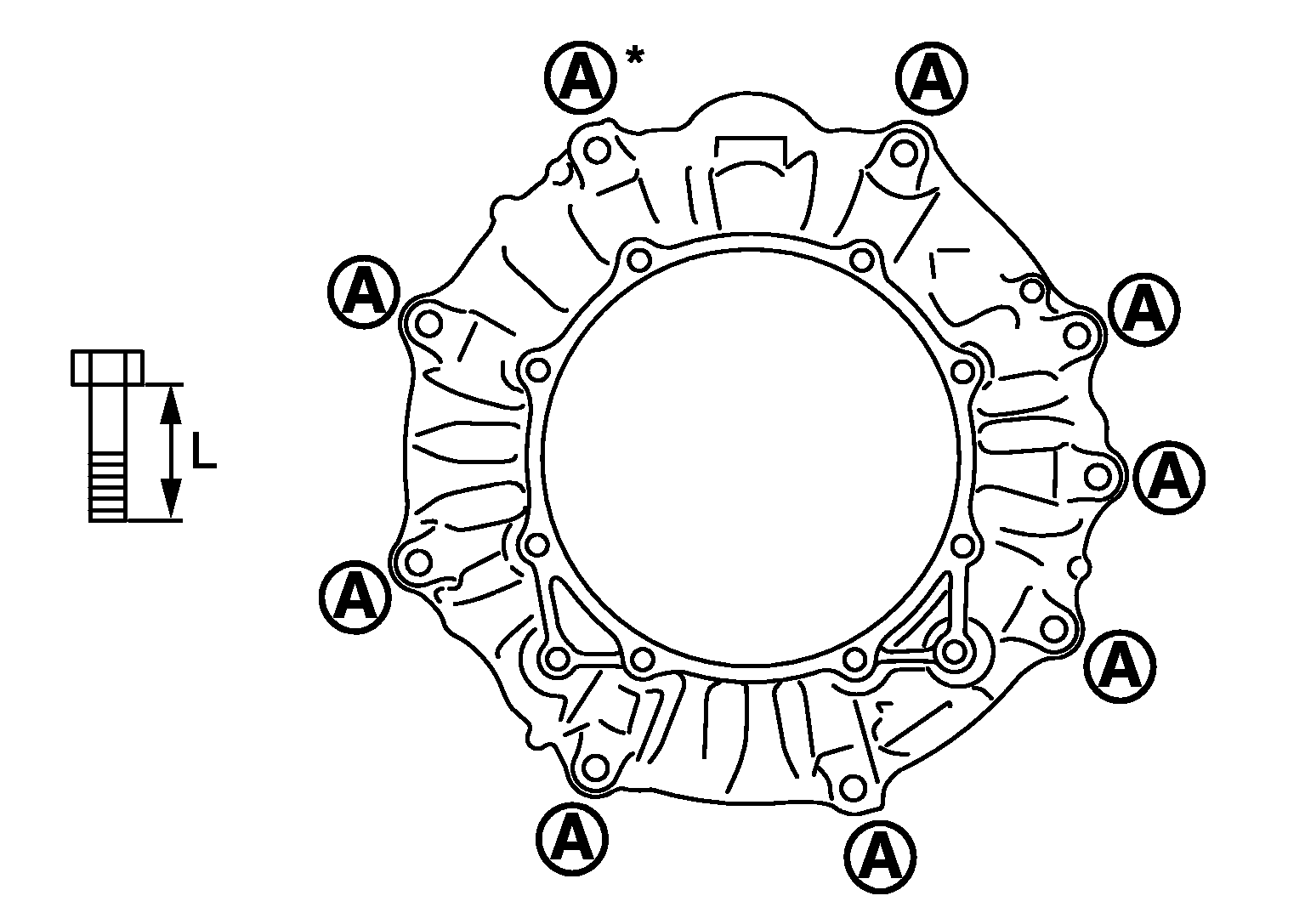

- Install the bolts of A/T assembly and engine according to the following standard.
Bolt symbol
A
Insertion direction
A/T assembly to engine
Number of bolts
9
Bolt length "L"
mm (in)
70 (2.76)
Tightening torque
N.m (kg-m, ft-lb)
113 (12, 83)
*: Tightening the bolt with bracket (and washer). Refer to Exploded View .
- Align the positions of tightening bolts for drive plate with those of the torque converter, and temporarily tighten the bolts. Then, tighten the bolts with the specified torque.CAUTION:
- When turning crankshaft, turn it clockwise as viewed from the front of the engine.
- When tightening the tightening bolts for the torque converter after fixing the crankshaft pulley bolts, be sure to confirm the tightening torque of the crankshaft pulley mounting bolts. Refer to Removal and Installation .
- Rotate crankshaft several turns and check to be sure that A/T rotates freely without binding after converter is installed to drive plate.
- Installation of the remaining components is in the reverse order of removal.
